ZL6 Reference Barometer
The reference barometer sensor in the ZL6 data logger should be replaced if it malfunctions
or if it needs to be calibrated. These step-by-step instructions will explain the replacement
process. A #1 Phillips screwdriver is required for installation.

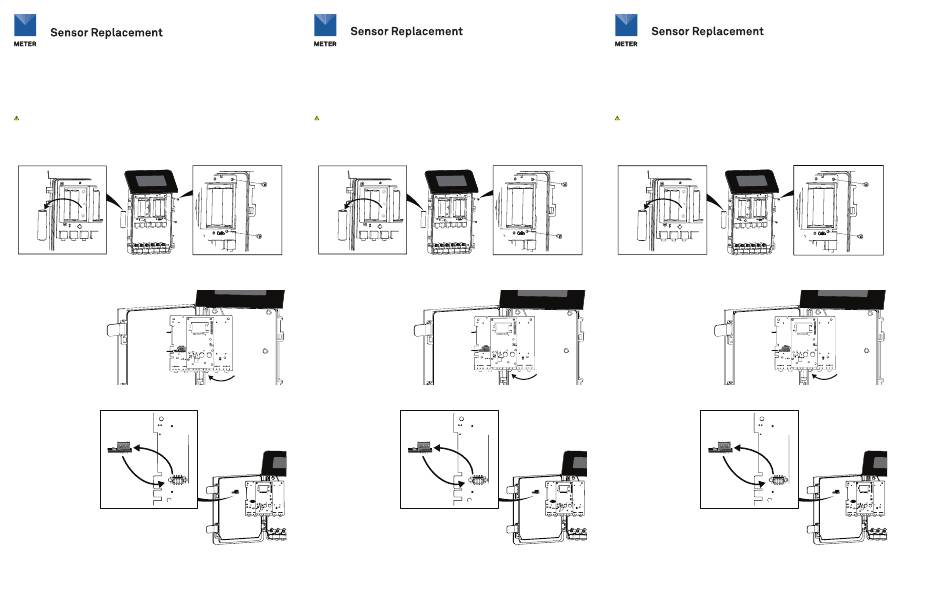

ACCESS REFERENCE BAROMETER SENSOR
CAUTION: Do not disconnect any wiring.
1. Remove a battery to turn
off the ZL6, and press
TEST button to clear
power in logger.
TEST
3. Carefully lift up
the main board
and rotate over to
Main board
expose the underside.
Sensor
NOTE: No need to
disconnect the antenna.
REMOVE AND REPLACE SENSOR
4. Lifting straight up,
remove the existing
sensor and discard.
Remove old
5. Pressing straight
down, insert the
new sensor into
the daughterboard
Insert new
connector.
ZL6 Reference Barometer
18317-00
5.15.2019
The reference barometer sensor in the ZL6 data logger should be replaced if it malfunctions
or if it needs to be calibrated. These step-by-step instructions will explain the replacement
process. A #1 Phillips screwdriver is required for installation.
ACCESS REFERENCE BAROMETER SENSOR
CAUTION: Do not disconnect any wiring.
2. Remove the four
1. Remove a battery to turn
screws from the
off the ZL6, and press
main board using a
TEST button to clear
Phillips screwdriver.
power in logger.
3. Carefully lift up
the main board
and rotate over to
expose the underside.
NOTE: No need to
disconnect the antenna.
REMOVE AND REPLACE SENSOR
4. Lifting straight up,
remove the existing
sensor and discard.
5. Pressing straight
down, insert the
new sensor into
the daughterboard
connector.
2. Remove the four
screws from the
main board using a
Phillips screwdriver.
TEST
Main board
Sensor
Remove old
Insert new
ZL6 Reference Barometer
18317-00
5.15.2019
The reference barometer sensor in the ZL6 data logger should be replaced if it malfunctions
or if it needs to be calibrated. These step-by-step instructions will explain the replacement
process. A #1 Phillips screwdriver is required for installation.
ACCESS REFERENCE BAROMETER SENSOR
CAUTION: Do not disconnect any wiring.
1. Remove a battery to turn
off the ZL6, and press TEST
button to clear power in logger.
TEST
3. Carefully lift up
the main board
and rotate over to
expose the underside.
NOTE: No need to
disconnect the antenna.
REMOVE AND REPLACE SENSOR
4. Lifting straight up,
remove the existing
sensor and discard.
5. Pressing straight
down, insert the
new sensor into
the daughterboard
Insert new
connector.
18317-00
5.15.2019
2. Remove the four
screws from the
main board using a
Phillips screwdriver.
Main board
Sensor
Remove old
