Permitted Torch Coolant; Plasma Torch - Cooling Circuit - EWM PHW 100 Operating Instructions Manual

Design and function
Welding torch cooling system
5.4.1

Permitted torch coolant

Coolant
KF 23E
Item Symbol
1
2
3

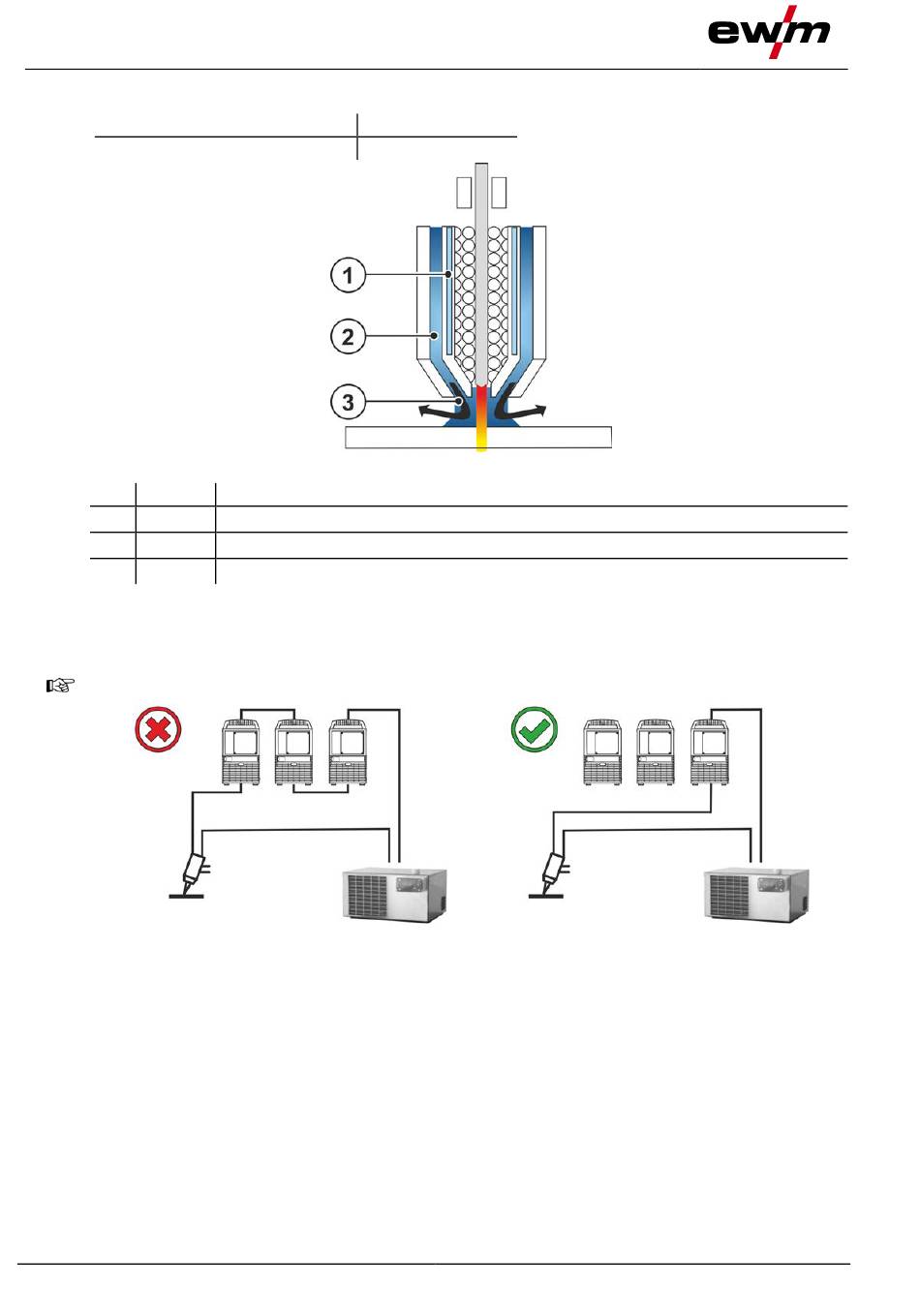

Part of the heat is released to the cooling system of the welding torch over the plasma nozzle and gas
lens, and part of the shielding gas is blown out of the welding torch.
5.4.2

Plasma torch - cooling circuit

Do not integrate any additional modules in the cooling circuit of the welding torch.
12
Temperature range
-10 °C to +40 °C
Description 0
Water cooling
Shielding gas
Shielding gas exit
Figure 5-2
Figure 5-3
