Item Symbol
1
2
3
4
5
6
7
5.4
Welding torch cooling system
Coolant mixtures!
Mixtures with other liquids or the use of unsuitable coolants result in material damage and ren-
ders the manufacturer's warranty void!
•
Only use the coolant described in this manual (overview of coolants).
•
Do not mix different coolants.
•
When changing the coolant, the entire volume of liquid must be changed.
Dispose of the coolant in accordance with local regulations and the material safety data sheets.
099-008232-EW501
26.05.2020
Description
0
Electrode
High voltage
Plasma gas
Gas nozzle
Work piece
Plasma nozzle
Shielding gas

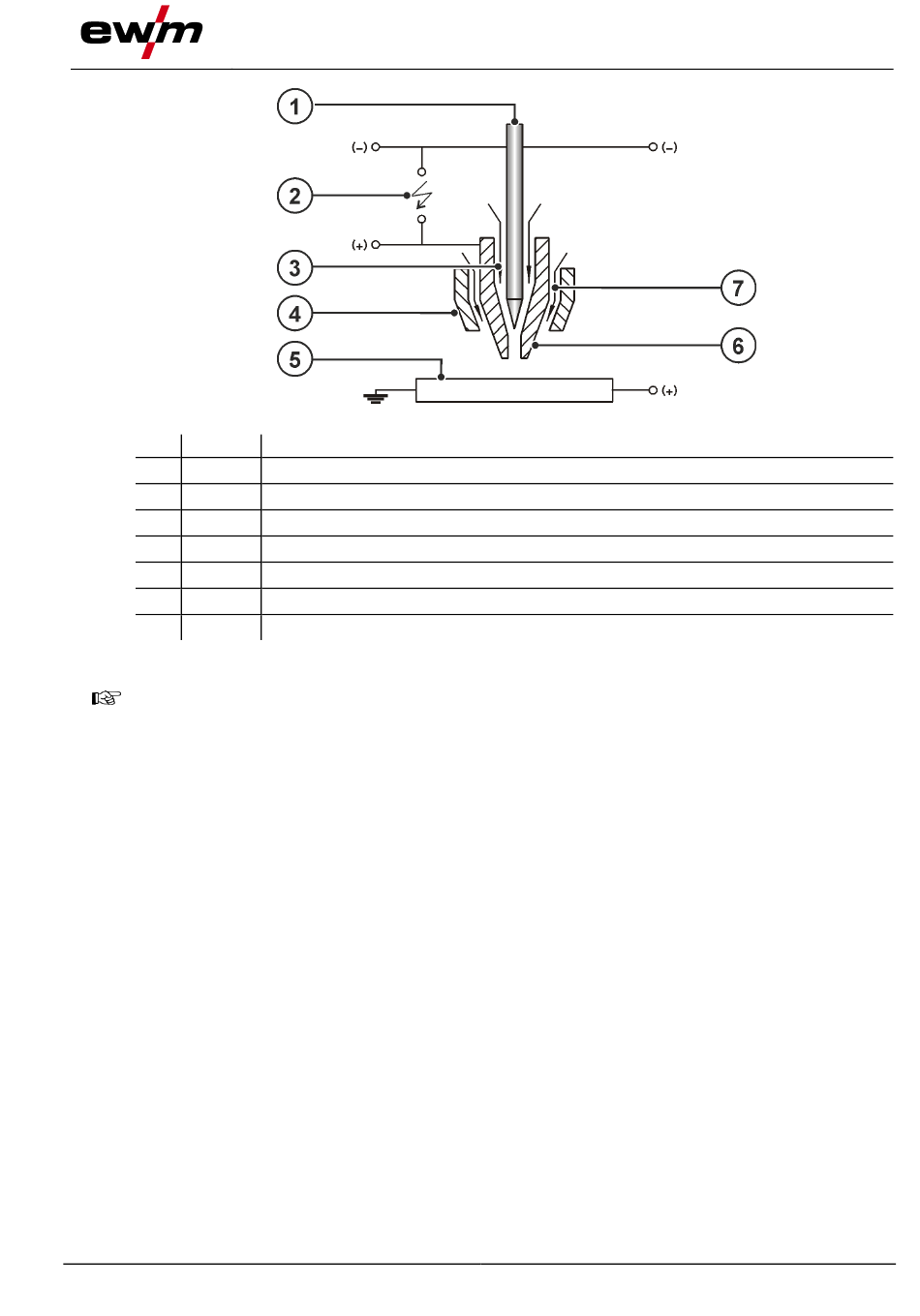

Design and function
Figure 5-1
Welding torch cooling system
11
