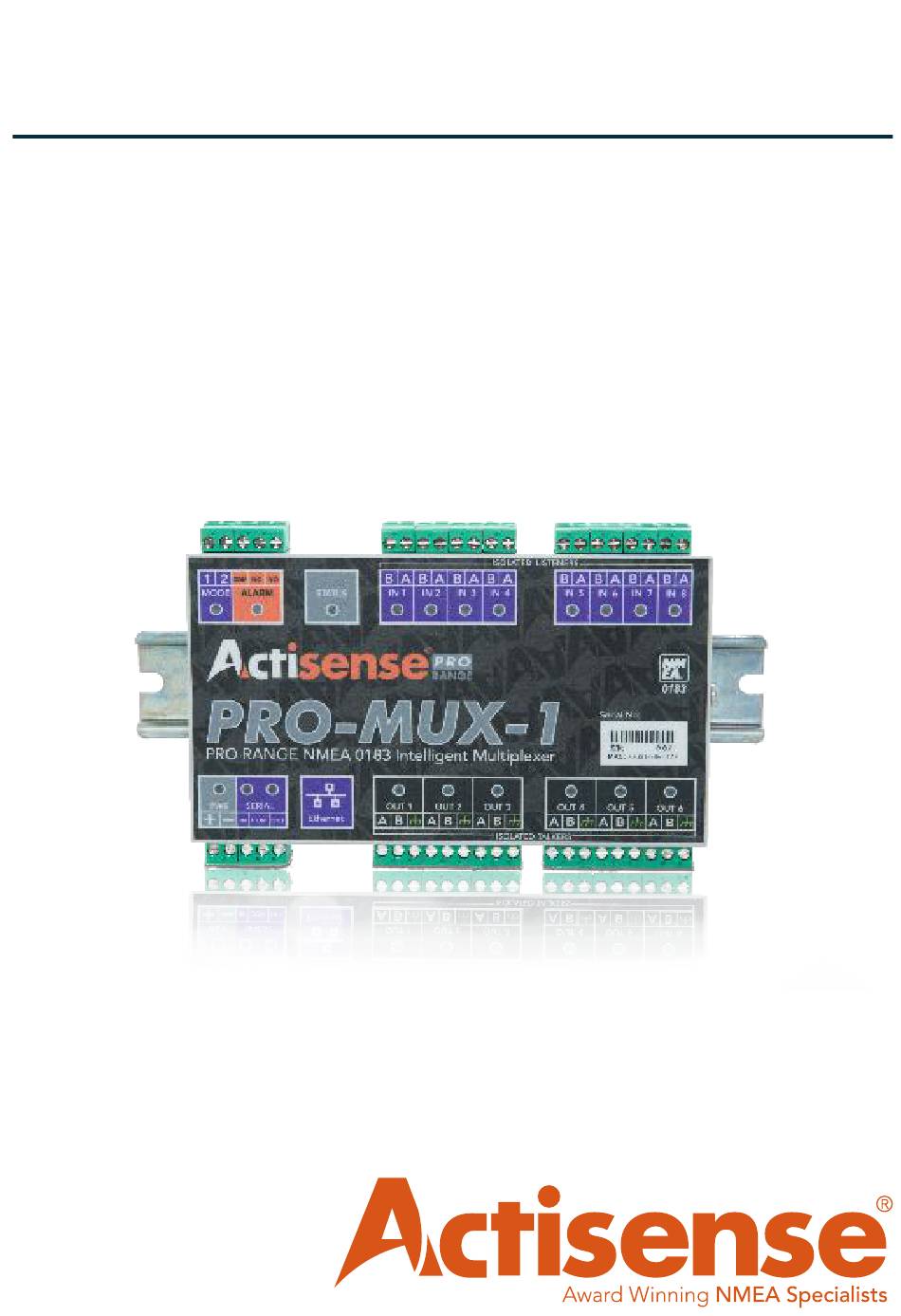

- Page 1 Professional NMEA 0183 Multiplexer Install/User Manual For all variants: Issue 1.0 PRO-MUX-1-R PRO-MUX-1-S Issue 1.00...
-
Page 2: Important Notices
Actisense products are intended for use in a marine environment, primarily for below deck use. If a product is to be used in a more severe environment, such use may be considered misuse under the Active Research Ltd guarantee. -
Page 3: Table Of Contents
Professional NMEA 0183 Intelligent Multiplexer - PRO-MUX-1 Contents Important Notices ........................... 2 Trademarks and Registered Trademarks ......................2 Fair Use Statement............................2 Technical Accuracy ............................2 Product Registration ............................2 Product Guarantee ............................2 Product Disposal .............................2 Installation Warnings ........................4 Warning 1: Accuracy ............................... -
Page 4: Installation Warnings
Warning 1: Accuracy The Actisense PRO-MUX-1 is designed to accurately transfer data from input to output. When the PRO-MUX-1 is in a Basic Mode no data integrity checking is performed, therefore any incomplete, inaccurate or corrupt data received on a PRO-MUX-1 input will be duplicated to the PRO-MUX-1 outputs. -
Page 5: Pro-Mux-1 Intro & Features

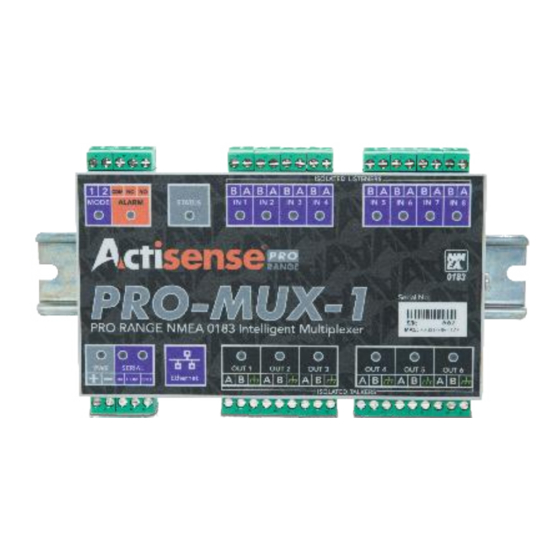

Professional NMEA 0183 Intelligent Multiplexer - PRO-MUX-1 PRO-MUX-1 Intro & Features The Actisense® Professional NMEA 0183 Multiplexer (PRO-MUX-1) is a robust and highly flexible platform that cures many interconnectivity headaches. The PRO-MUX-1 is reliable, robust and provides industry leading isolation on all inputs and outputs as standard, so that connected devices safely avoid hazardous ground loops, the number 1 cause of product failure in NMEA 0183 networks. -
Page 6: Before Getting Started
Before getting started The wire colours used in this manual are in accordance with the NMEA 0183 specification (v.4.10, June 2014) and are for illustration purposes only. Please ensure you check the wiring colours in the installation instructions for the devices you wish to interface to the PRO-MUX-1. Terminals The PRO-MUX-1 comes with two main choices for its 2-way and 3-way connectors: ‘screw’... -
Page 7: Nmea 0183 Talker And Listener Designations
Professional NMEA 0183 Intelligent Multiplexer - PRO-MUX-1 NMEA 0183 Talker and Listener Designations The NMEA have updated the NMEA 0183 specification to ensure a consistent naming convention is used for labelling ports. The designation follows the same rules as used for Rx and Tx labelling but uses Talker and Listener instead. -
Page 8: Serial
Serial The connections for a standard RS232 cable are: NDC-5 Label Serial Serial Serial Connects to DB9 Pin 3 / Pin 5 / Pin 2 / Serial Port Ethernet Either a standard Ethernet patch or crossover cable with an RJ45 plug can be used for a direct connection to a PC/laptop, or the PRO-MUX-1 can be connected to an Ethernet network switch. -
Page 9: Mounting The Pro-Mux-1
Latch down Bulkhead Mounting Actisense recommends the PRO-MUX-1 is installed using the DIN rail supplied for the most secure installation. However, the PRO-MUX-1 can be secured to a bulkhead using the two screw catches on the reverse of the PRO-MUX-1 shown in the diagram below. -
Page 10: Web Browser Configuration Tool
Web Browser Configuration Tool The Configuration Tool for the PRO-MUX-1 is built-in and can be accessed via the Ethernet connection. As the Configuration Tool is web based it is compatible with all popular web browsers and Operating Systems. An internet connection is not required to access the Configuration Tool. The default page displayed is the PRO-MUX-1 Configuration Tool ‘Home’... -
Page 11: Direct Connections Or Basic Ethernet Networks
Professional NMEA 0183 Intelligent Multiplexer - PRO-MUX-1 Direct connections or basic Ethernet networks If the PRO-MUX-1 is connected directly to a PC (or the Ethernet network does not have a DHCP server), the PRO-MUX-1 will communicate using auto-IP by default. The auto-IP process can take up to 60 seconds to complete. -
Page 12: Troubleshooting Guide
Troubleshooting Guide First level PRO-MUX-1 diagnostics / fault finding can be performed by observing the LED behavior. The normal behavior of the PRO-MUX-1 LEDs is described on the next page. If the LEDs are not behaving as expected, this will indicate a fault in either the device connected to the PRO-MUX-1, the wiring/ connections, or the PRO-MUX-1 itself. -
Page 13: Technical Support And The Returns Procedure
All installation instructions and any warnings contained in this manual must be followed before contacting Actisense technical support. If the troubleshooting guide did not help resolve the problem and an error persists, please contact Actisense Technical Support to help trace the issue before considering the return of the product. - Page 14 Power Supply Mode Inputs Input supply voltage 9 to 35 V DC Input voltage range 0 to 35V DC 250mA max @ 12V DC (all outputs @ full drive Protection Transient overvoltage and ESD protection Input supply current into 100 ohm loads) Alarm Output Continuous reverse polarity, transient overvoltage Contacts...
- Page 15 Professional NMEA 0183 Intelligent Multiplexer - PRO-MUX-1 Page 15 © 2018 Active Research Limited...
- Page 16 21 Harwell Road Poole Dorset UK, BH17 0GE Tel: +44 (0)1202 746682 Email: support@actisense.com Web: actisense.com Product Code Description PRO-MUX-1-BAS-R Standard configuration with pluggable screw terminals PRO-MUX-1-BAS-S Standard configuration with pluggable screwless terminals ® Page 16 © 2018 Active Research Limited...
