NMEA 0183 Multiplexer
Install/User Manual
Issue 1.0
Issue 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NMEA 0183 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Actisense NMEA 0183

Summary of Contents for Actisense NMEA 0183

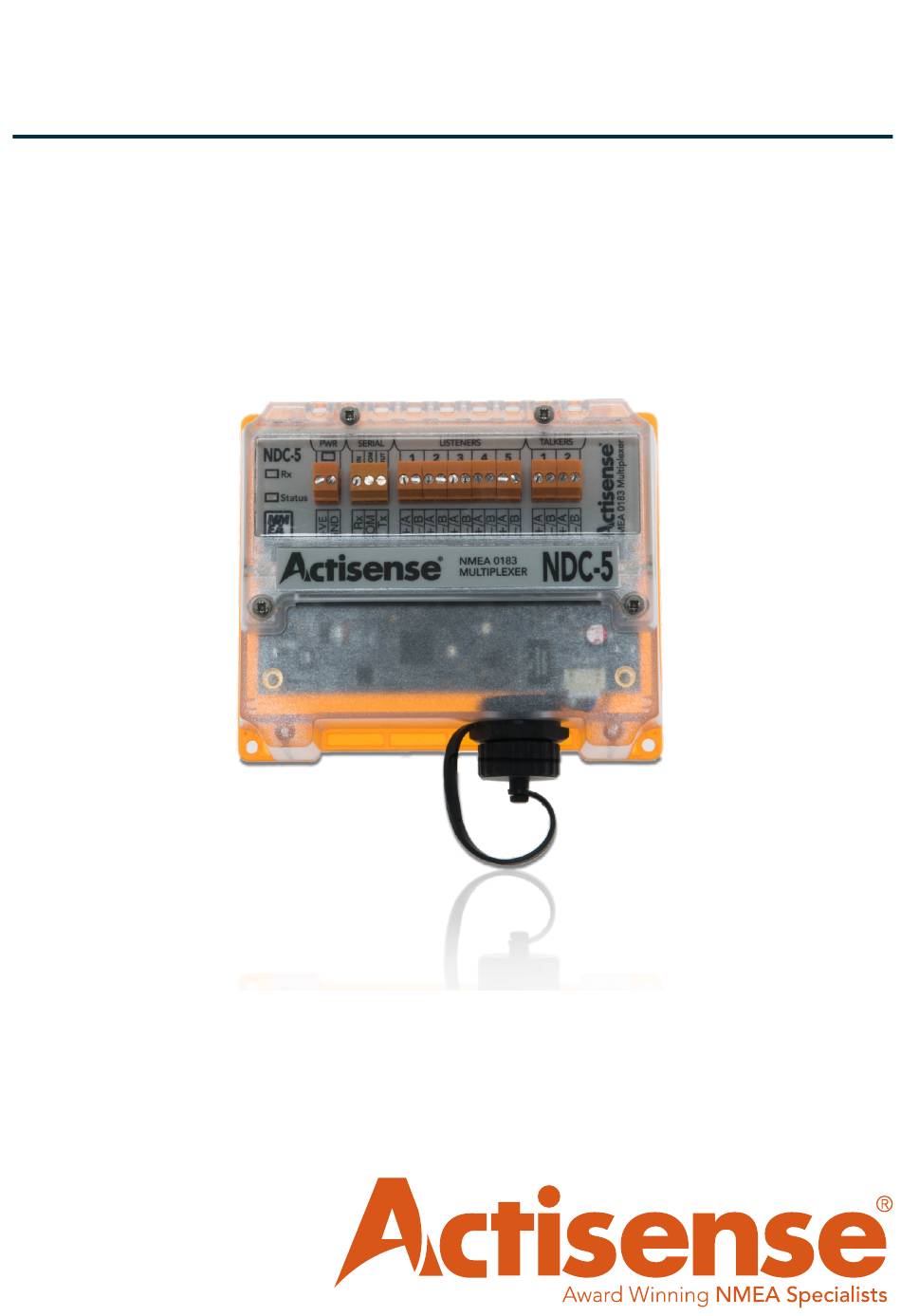

  • Page 1 NMEA 0183 Multiplexer Install/User Manual Issue 1.0 Issue 1.00...

  • Page 2: Important Notices

    Actisense products are intended for use in a marine environment, primarily for below deck use. If a product is to be used in a more severe environment, such use may be considered misuse under the Active Research Ltd guarantee.

  • Page 3: Table Of Contents

    Software Updates ............................4 NDC-5 Intro & Features ........................5 Before getting started ........................6 Terminals ............................6 Powering the NDC-5............................6 NMEA 0183 Talker and Listener Designations ....................6 Connecting to NMEA Devices .........................6 OPTO Inputs ..............................6 ISO-Drive Outputs ............................7 Serial ................................7 Ethernet ................................7...

  • Page 4: Installation Warnings

    Warning 1: Accuracy The Actisense NDC-5 is designed to accurately transfer data from input to output. When the NDC-5 is in a Basic Mode no data integrity checking is performed, therefore any incomplete, inaccurate or corrupt data received on a NDC-5 input will be duplicated to the NDC-5 outputs.

  • Page 5: Ndc-5 Intro & Features

    NMEA 0183 interconnectivity headaches. The five NMEA 0183 inputs can be routed to any of the two NMEA 0183 outputs, as well as the serial and Ethernet ports* providing a highly customisable network. The bi-directional serial port and Ethernet port also allow for simple configuration and diagnostics using Actisense software.

  • Page 6: Before Getting Started

    Connecting to NMEA Devices The ‘A/+’ and ‘B/-’ of the NMEA 0183 device should be matched to the ‘A’ and ‘B’ on the NDC-5. If the NMEA 0183 device has a ground (GND) wire (and no ‘B/-’ wire), simply connect this to ‘B’ on the NDC-5.

  • Page 7: Iso-Drive Outputs

    NMEA 0183 Multiplexer - NDC-5 ISO-Drive Outputs Connect the NMEA 0183 Listener to the NDC-5 Talker terminals as shown in the diagram. Serial The connections for a standard RS232 cable are: NDC-5 Label Serial Serial Serial Connects to DB9 Pin 3 /...

  • Page 8: Mounting The Ndc-5

    NDC-5 in place. Bulkhead Mounting Actisense recommends the NDC-5 is installed using the DIN rail supplied for the most secure installation. However, the NDC-5 can be secured to a bulkhead using the two screw catches on the reverse of the NDC- 5 shown in the diagram below.

  • Page 9: Web Browser Configuration Tool

    NMEA 0183 Multiplexer - NDC-5 Web Browser Configuration Tool The Configuration Tool for the NDC-5 is built-in and can be accessed via the Ethernet connection. As the Configuration Tool is web based it is compatible with all popular web browsers and Operating Systems.

  • Page 10: Direct Connections Or Basic Ethernet Networks

    Direct connections or basic Ethernet networks If the NDC-5 is connected directly to a PC (or the Ethernet network does not have a DHCP server), the NDC-5 will communicate using auto-IP by default. The auto-IP process can take up to 60 seconds to complete.
  • Page 11 NMEA 0183 Multiplexer - NDC-5 First level NDC-5 diagnostics / fault finding can be performed by observing the LED behavior. The normal behavior of the NDC-5 LEDs is described in the table below. If the LEDs are not behaving as expected, this will indicate a fault in either the device connected to the NDC-5, the wiring/connections, or the NDC-5 itself.

  • Page 12: Technical Support And The Returns Procedure

    Actisense Technical Support to help trace the issue before considering the return of the product. If the Actisense support engineer concludes that the NDC-5 unit should be returned to Actisense, a ‘Return Merchandise Authorisation’ (RMA) number will be issued by the support engineer.

  • Page 13: Product Dimensions

    110mA max @ 12V DC (all outputs @ full drive into TCP/IP for configuration and firmware updating Input supply current Supported protocols 100 ohm loads) TCP/IP and UDP for NMEA 0183 comms Continuous reverse polarity, transient overvoltage and Input protection Connector RJ45...
  • Page 14 21 Harwell Road Poole Dorset UK, BH17 0GE Tel: +44 (0)1202 746682 Email: support@actisense.com Web: actisense.com Product Code Description NDC-5-BAS-R Standard configuration with pluggable screw terminals NDC-5-BAS-S Standard configuration with pluggable screwless terminals ® Page 14 © 2018 Active Research Limited...
