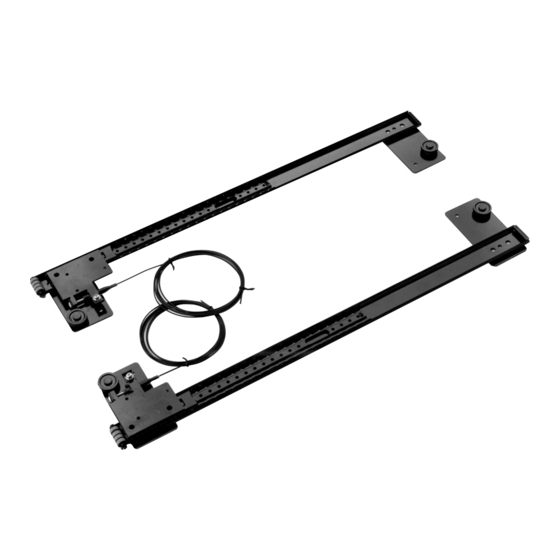

- Page 1 Mounting Instructions Item No.: 408.24. Series XL Pocket Door Slide System Finish: Black Electroplated Zinc Maximum Door Weight: 35 lbs. Maximum Door Size: 60" Height x 24" Wide...
- Page 2 (B) Pre-mounted Spacer Tabs 1 Mounting the slides Attach slides (A) to side panels using (8) Trusshead screws (013.03.304) as shown. Top and bottom locations are determined by pre-mounted spacer tabs (B). This assumes cabinet is square and parallel. Make sure slides are absolutely parallel. Backset is measured from front edge of cabinet to front edge of rollers: Trusshead Screws...
- Page 3 Pocket width required Door Type Pocket Width “X” using up to a maximum Inlay doors 64 mm (2 1/2") door size of 1 1/4" (32 mm) Overlay doors 50 mm (2") 35 mm Cup Hinge Pocket Width Inlay doors 45 mm (1 3/4") Slide “X”...
- Page 4 4 Door adjustments Adjust out any sag in the door using the cable adjuster (E) Do not over tighten cable. Cable should only have light tension applied. Make further adjustments using adjusting screws on hinge and mounting plates. (see diagram) Test ease of operation by sliding door in and out.
