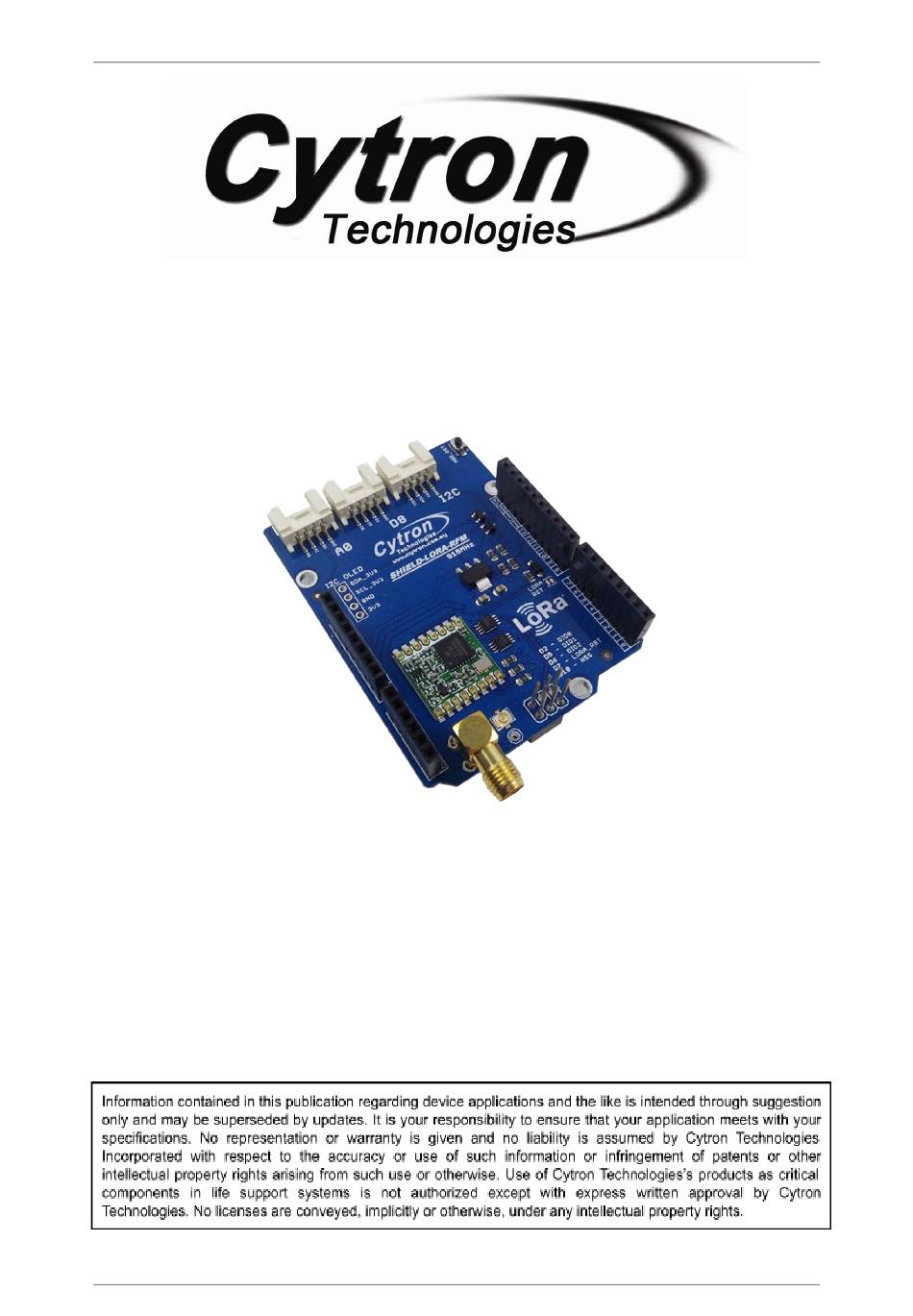

- Page 1 ROBOT . HEAD to TOE Product User’s Manual – LoRa Shield Cytron RFM LoRa Shield SHIELD-LORA-RFM User's Manual V1.0 March 2017 Created by Cytron Technologies Sdn. Bhd. – All Right Reserved...
-
Page 2: Table Of Contents
ROBOT . HEAD to TOE Product User’s Manual – LoRa Shield Index Introduction Packing List Board or Product Layout Dimension Hardware Installation Getting Started Warranty Created by Cytron Technologies Sdn. Bhd. – All Right Reserved... -
Page 3: Introduction
RFM Lora Shield allows users to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption, and targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, smartphone detection, building automation, etc. -
Page 4: Packing List
Please check the parts and components according to the packing lists. If there are any parts missing, please contact us at ales@cytron.com.my immediately. 1. 1 x LoRa Shield 2. 1 x SMA antenna 915MHz 50 Ohm 3. 1 x pigtail for U.FL antenna Created by Cytron Technologies Sdn. Bhd. – All Right Reserved... -
Page 5: Board Or Product Layout
Low-Power Long Range Transceiver operating in the 915 MHz frequency band. Complies with the LoRaWAN Class A protocol specifications, and integrates RF, a baseband controller, command Application Programming Interface (API) processor, making it a complete long range solution. Created by Cytron Technologies Sdn. Bhd. – All Right Reserved... - Page 6 A single through hole for wire antenna. User may choose to solder the hole with wire antenna. 9. U.FL SMD Antenna Connector Connector for U.FL SMD Antenna. User may choose to connect it with pigtail and antenna. Created by Cytron Technologies Sdn. Bhd. – All Right Reserved...
-
Page 7: Dimension
ROBOT . HEAD to TOE Product User’s Manual – LoRa Shield 4.0 DIMENSION Created by Cytron Technologies Sdn. Bhd. – All Right Reserved... -
Page 8: Hardware Installation
Arduino Uno and LoRa Shield; it is simply stacking up the shield onto the Arduino main board. 1. Stack LoRa Shield on A rduino Uno . Ensure that the pins alignment is correct. 2. Install antenna as shown in the picture below. Created by Cytron Technologies Sdn. Bhd. – All Right Reserved... -
Page 9: Getting Started
ROBOT . HEAD to TOE Product User’s Manual – LoRa Shield 6.0 GETTING STARTED Please refer to our w iki page. Created by Cytron Technologies Sdn. Bhd. – All Right Reserved... -
Page 10: Warranty
No. 1, Lorong Industri Impian 1, Taman Industri Impian, 14000 Bukit Mertajam, Penang, Malaysia. Tel: +604 - 548 0668 Fax: +604 - 548 0669 URL: www.cytron.io Email: s upport@cytron.io sales@cytron.io Created by Cytron Technologies Sdn. Bhd. – All Right Reserved...
