- Page 1 Operation & Installation Manual RFP V2 Series Rev 1 Residential Fire Panels RFP V2 Series MA225 26/7/2019...
- Page 2 This page has deliberately been left blank.
-
Page 3: Table Of Contents
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Table of Contents INTRODUCTION ____________________________________________________ 4 Design Philosophy and the Brooks Approach -------------------------------------------------- 4 System Overview -------------------------------------------------------------------------------------- 4 SYSTEM DESIGN ___________________________________________________ 5 Smoke / Heat Alarms --------------------------------------------------------------------------------- 5 2.1.1 Basic Information about your Smoke / Heat Alarm ..........5 2.1.2... - Page 4 Operation & Installation Manual RFP V2 Series MA225 Rev 1 Options ------------------------------------------------------------------------------------------------- 21 3.9.1 Mimic Panel (Optional) ..................21 3.9.2 Zone Output Facility (Optional) ................21 3.9.3 Remote Zone Relay Board (SUB600) ..............22 3.9.4 Magnetic Door Holder Power Supply ..............22 3.10...
- Page 5 Operation & Installation Manual RFP V2 Series MA225 Rev 1 Table of Figures Figure 1 Roof Space Heat Detectors ....................7 Figure 2 Connection of roof space detectors .................. 8 Figure 3 Removing Alarm Heads from EIB603CX or EIB650iWX ..........12 Figure 4 RFP6V2 Overlay for 6 Zones ..................
-
Page 6: Introduction
System Overview The Brooks RFP V2 Series of Residential Fire Alarm Panels complete with the compatible Smoke / Heat Alarms provides an automatic fire detection and warning system designed to meet the requirements of Australian Standard AS3786-2014, AS1603.3:2018 and National Construction Code (NCC) of Australian. -
Page 7: System Design
It will give off visible smoke and toxic fumes at much greater levels. For this reason, Brooks has used only photoelectric Smoke Alarms in the RFS V2 system. Research indicates this technology is superior in performance to ionisation in residential applications and is the overall best and most reliable type of smoke alarm technology for use in the modern dwelling. -

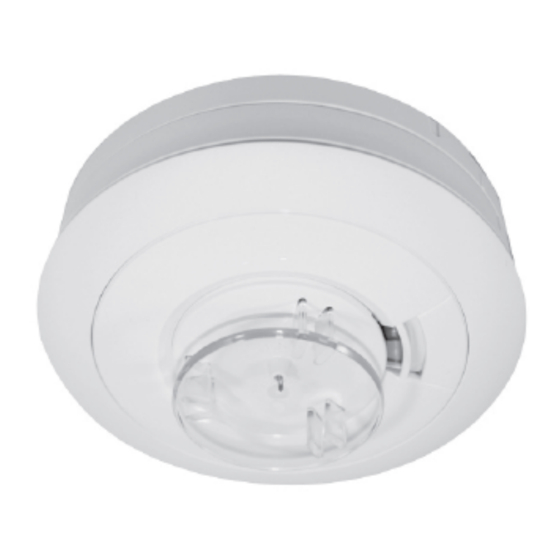

Page 8: Heat Model (Eib603Cx)
Operation & Installation Manual RFP V2 Series MA225 Rev 1 overheated PVC wiring. They are less prone to nuisance alarms from cooking fumes. Furthermore, they contain no radioactive material. However, all photoelectric Smoke Alarms are prone to nuisance alarms caused by dust or insect contamination. -
Page 9: Roof Space Heat Detectors
12V (with a diode forward voltage drop) to the interconnect which activates all Smoke or Heat Alarms within RFP V2 series. Roof space detectors available for 60⁰ C or 80⁰ C applications. -
Page 10: Connection To Rfp V2
Operation & Installation Manual RFP V2 Series MA225 Rev 1 2.2.4 Connection to RFP V2 Field wiring as shown in Figure 2 below is same as the standard RFP zone wiring. The bi-metallic switch contact is connected between Interconnect and positive terminals (with protection diode and series resistor) on SUB1034 (60⁰) / 1035 (80⁰) -
Page 11: Locating Smoke / Heat Alarms
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Locating Smoke / Heat Alarms The locations are typically required to meet the Deemed to Satisfy Provisions of the NCC. However, the NCC does not provide specific guidance as to the minimising of potential nuisance alarms. -
Page 12: Checking Audibility Of Smoke / Heat Alarms
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Important: These Smoke/Heat Alarms are designed for use in a residential type environment. 2.4.3 Checking Audibility of Smoke / Heat Alarms With the Alarm sounding in its intended location, check that you are able to hear it in each bedroom with the door closed above the sound of your radio. -
Page 13: Interconnecting Smoke/Heat Alarms
Interconnecting Smoke/Heat Alarms The Brooks Smoke Alarm EIB650iWX and Heat Alarm EIB603CX provide an interconnect facility to RFP V2 series. When one Smoke/Heat Alarm activates all Smoke/Heat Alarms and panel buzzer will sound, this provides not only an increased sound pressure level but also an alarm warning throughout the entire dwelling. Up to 12 Smoke / Heat Alarms model EIB650iWX, and/or EIB603CX can be interconnected to each zone in RFP V2 series. -
Page 14: Important Safeguards
If unit has been damaged in any way or does not function properly, do not • attempt a repair, return the Alarm to the nearest Brooks office. Smoke/Heat Alarms are intended for premises having a residential type •... -
Page 15: Fire Safety Hints
Smoking in bed. Leaving children at home alone. Cleaning with flammable liquids, such as petrol. Further information can be obtained from Brooks Australia’s Guide to Residential Fire Safety. 13 of 50... -
Page 16: Residential Fire Panel
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Residential Fire Panel RFP V2 Specifications Table 2 Specifications of RFP V2 residential panels Feature Specification No. of zones 6, 12 or 18 Max. no. of Alarms 12 Alarms per zone Enclosure Zinc steel 1.5mmm powder coated oyster... -
Page 17: Familiarisation
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Visual Indications Individual zone alarm - Red Individual zone fault - Amber Ancillary isolate - Amber Locator activated - Amber Sounder silence - Amber Power ON - Green Smoke/Heat Alarms options Remote indication output set to latching or non-latching. -
Page 18: Figure 4 Rfp6V2 Overlay For 6 Zones
Operation & Installation Manual RFP V2 Series MA225 Rev 1 • Common alarm output confirmation (delay), 0, 30 and 50 second. • 003 Key switch to turn the RFP ON / OFF or FIRE mode. Individual zone relay output when the optional zone output card SUB365 is •... -
Page 19: Figure 6 Rfp12V2 / Rfp18V2 Overlay For 12 Or 18 Zone
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Figure 6 RFP12V2 / RFP18V2 Overlay for 12 or 18 Zone 17 of 50... -
Page 20: Indicators Of Rfp V2
Operation & Installation Manual RFP V2 Series MA225 Rev 1 3.3.1 Indicators of RFP V2 Table 3 Front display indicators Descriptor Colour Function Buzzer Green Steady On, mains power ok Steady On: Zone 1 – 6 for RFP6 and Alarm Zone 7 –... -
Page 21: Rfp V2 Compatible Equipment
AS3786. Refer to Table 6, page 36 to calculate the battery capacity. 3.7.1 Primary Power Supply / Battery Charger The primary power supply for RFP V2 series is fully regulated switch mode power supply 15V / 50W. Nominal output is adjusted to14.5V (13.8V on the battery terminals), maximum current 3.4A @ 14.5V. -
Page 22: Termination Of Field Wiring
MA225 Rev 1 Note: When two batteries are used, it must be connected in parallel to increase the battery backup time. All Brooks residential panels are 12V systems. Termination of Field Wiring All field wiring enters the panel via knock-outs on either top or rear of the cabinet and is then terminated on the Termination Board SUB357B. -
Page 23: Panic Input
Operation & Installation Manual RFP V2 Series MA225 Rev 1 capacity is required to increase, two batteries will be connected in parallel, use the supplied lead to interconnect the two batteries as shown in Figure 7 above. Panic Input 3.8.4 This input allows for manual activation of the Residential Fire Alarm System. -
Page 24: Remote Zone Relay Board (Sub600)
Operation & Installation Manual RFP V2 Series MA225 Rev 1 such as bells, sirens, or flashing lights, strobes and door holders etc. The contact rating of the relays is 1A @ 12V. 3.9.3 Remote Zone Relay Board (SUB600) The board provides a relay output clean contact and 12V non-supervised outputs when an alarm is activated in a specific zone. -
Page 25: Low Battery
Operation & Installation Manual RFP V2 Series MA225 Rev 1 3.10.4 Low Battery With the mains disconnected, the panel operates solely off the battery. When the battery reaches a pre-set low level of approximately 12.0 Vdc, the fault sounder will pulse once every 20 seconds to give an audible indication that the system is running low on capacity (all zone fault indicators must remain off). -
Page 26: Installation
In order to ensure that voltage drop is kept to a minimum and ensure that Smoke/Heat Alarms operate up to 100m runs, use low resistance cables of ≤ 19.5 Ω/km maximum DC resistance at 20°C with each core at 1.0 mm². BROOKS strongly recommend using the following cable as a minimum: BAC4C1/100 Metre 4 core 1mm²... -
Page 27: Termination Of Eib650Iwx Or Eib603Cx Alarms
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Note: Battery capacity calculation must be carried out. Failing to use the correct battery capacity will void the compliance to AS3786:2014. Termination of EIB650iWX or EIB603CX Alarms The new Smoke EIB650iWX and Heat EIB603CX Alarms are to be plugged in the interface base BAX16 which consists of SUB1012, adapter board SUB1005, ribbon cable and extended plastic base. -
Page 28: Figure 10 Ribbon Cable From Sub1005
Operation & Installation Manual RFP V2 Series MA225 Rev 1 To install EIB650iWX or EIB603CX, the following procedures can be used: Before installing EIB650iWX or EIB603CX to a zone, ensure the panel is fully switched off and the panel battery is disconnected. -
Page 29: Table 5 Dip Switch Settings For Sub1012
Operation & Installation Manual RFP V2 Series MA225 Rev 1 IMPORTANT PRECAUTION: Do not install the actual alarm head itself in new or renovated buildings until all work is completed (including floor coverings) and the building has been fully cleaned. The wiring can be installed when appropriate. - Page 30 Operation & Installation Manual RFP V2 Series MA225 Rev 1 Note: It is essential that DIP switch 3 is set to “ON” position if SUB1012 is situated in the last position on the zone. Outgoing termination point is to be left empty.
-
Page 31: Commissioning
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Commissioning The fire alarm installer shall ensure that all documentation, logbook, handbook (operators and installers manuals), as-installed drawings, and check list are available at the time of commissioning. The fire alarm system installer should rectify any faults in the fire detection and alarm installation, as appropriate, where the results of the commissioning tests are outside the manufacturer's limits. -
Page 32: Testing
2. Return the key switch to “ON” position to restore the RFP back to normal. Zone Alarm Test Brooks do not recommend testing with smoke or heat as the results can be misleading unless special equipment is used. WARNING: DO NOT TEST WITH FLAME, this will damage both the Alarm and the house. -
Page 33: Zone Fault Test
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Note: If a mimic panel or RIL is connected to the Alarm being tested check that it also illuminates at this time. 4. Repeat for every other zone in the system. -
Page 34: Maintenance
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Maintenance For the continuous reliability of the system, provision should be made for regular inspection, testing and preventative maintenance of the installation. AS1851 provides guidance. A properly designed and installed detection system offers effective life and property protection. -
Page 35: Troubleshooting
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Troubleshooting False Alarms In the event of a "false alarm" it is imperative that the cause is determined and corrective action taken. Condition: False Alarm - System is fully activated; Red zone Alarm LED 'ON'. -
Page 36: Line Fault
Operation & Installation Manual RFP V2 Series MA225 Rev 1 7.2.1 Line Fault If a zone fault LED is lit and the sounder is sounding continuously, then an Open Circuit or Short Circuit (+Ve to –Ve) has occurred. If a Short Circuit has occurred, then the fuse on the zone would have been blown. -
Page 37: Spare Parts
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Spare Parts To obtain any of the spare parts shown below or equipment service, please contact your nearest Brooks office shown in the end of the manual Main Panel Stock No. Description SUB350A RFP6 V2 Main &... -
Page 38: Battery Capacity Calculation
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Battery Capacity Calculation The required battery capacity can be calculated using the active battery calculation spread sheet. By selecting the RFP model, no. of smoke/heat alarms and adding any ancillaries, the spread sheet will automatically calculate the battery capacity required to maintain the system for 72 hours in standby condition followed by 4 minutes in alarm as required by AS3786. -
Page 39: Block Wiring Diagrams
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Block Wiring Diagrams Figure 12 F800 Iss1 RFPV2 37 of 50... -
Page 40: Figure 13 F801 Iss1 - Rfp12V2 / Rfp18V2
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Figure 13 F801 Iss1 – RFP12V2 / RFP18V2 38 of 50... -
Page 41: Figure 14 F802 - Rfp V2 With Options
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Figure 14 F802 - RFP V2 with Options 39 of 50... -
Page 42: Figure 15 Dip Switch Settings On Main Board (Sub350)
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Figure 15 DIP Switch Settings on Main Board (SUB350) 40 of 50... -
Page 43: Commissioning Checklists
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Commissioning Checklists LOCAL FIRE ALARM SYSTEM Installer’s Statement Page 1 of 2 1. Building Name 2. Address Is the system monitored? YES/NO If YES, by whom: 4. Name of nearest Fire Brigade Station Phone: 5. - Page 44 Operation & Installation Manual RFP V2 Series MA225 Rev 1 INSTALLERS STATEMENT Page 2 of 2 Additional Comments 42 of 50...
- Page 45 Operation & Installation Manual RFP V2 Series MA225 Rev 1 TEST REPORT SYSTEM CONFIGURATION As installed Diagrams Correct/Incorrect Log Book Details Correct/Incorrect SMOKE ALARMS Layout Correct/Incorrect Number Correct/Incorrect Type Selection Correct/Incorrect HEAT ALARMS Layout Correct/Incorrect Number Correct/Incorrect Type Selection Correct/Incorrect...
- Page 46 Operation & Installation Manual RFP V2 Series MA225 Rev 1 IF INCORRECT, COMMENT FIELD DEVICES End of Line Fault Test Correct/Incorrect Smoke Alarms All Operational Correct/Incorrect Manual Call Points All Operational Correct/Incorrect Ancillary Equipment All Operational Correct/Incorrect IF INCORRECT, COMMENT:...
- Page 47 Operation & Installation Manual RFP V2 Series MA225 Rev 1 INFORMATIVE EXAMPLE RESIDENTIAL FIRE PANEL LOG BOOK REPORT MONTH/YEAR: INSPECTION, TESTING AND MAINTENANCE PROCEDURES Building Name Address Note: Give details of all unsatisfactory items in report section. Refer to owner’s manual for commissioning test report.
-
Page 48: Product Guarantee
MA225 Rev 1 Product Guarantee Brooks Australia Pty Ltd guarantees the RFP V2 control panel for a period of either fifteen (15) months from the date of purchase or twelve (12) months from the date of installation, whichever is the lesser. Brooks Australia Pty Ltd. Guarantees the Smoke/Heat Alarms for five years from date of purchase. -
Page 49: Revision History
Operation & Installation Manual RFP V2 Series MA225 Rev 1 Revision History Issue Date Description Written By Checked By Combine RFP 6 & RFP12-18 operation and installation manuals and replace old E. Thein / 30/7/2018 smoke alarms with EIB603CX and... - Page 50 Operation & Installation Manual RFP V2 Series MA225 Rev 1 NSW - Head Office P.O. Box 7050 Silverwater NSW 1811 4 Pike Street Rydalmere NSW 2116 Ph: 02 9684 1466 Website: www.Brooks.com.au 9/71 Victoria Crescent, Abbortsford, VIC 3067 Ph: 03 9879 5294 P.O.
