- Page 1 I N S T A L L A T I O N G U I D E...
- Page 2 Hilltopper community of electric bike enthusiasts. With a small but powerful 350W hub motor and a battery with a range of 25 to 50 miles, the Horizon will get you where you need to go and back. The install should take around an hour depending on your mechanical skills and enthusiasm.

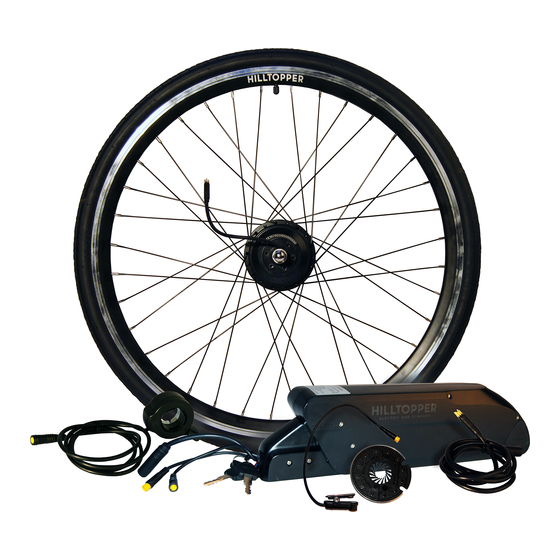

- Page 3 LET’S GET STARTED PARTS AND PIECES - WHEEL WITH HUB MOTOR, MOUNTING HARDWARE and MOTOR CABLE TIRE and TUBE BATTERY and BATTERY DOCK MOUNTING HARDWARE CHARGER KEYS VARIABLE SPEED THROTTLE WITH CABLE PEDAL ASSIST SENSOR (PAS) 2-PIECE MAGNET WHEEL and ALUMINUM LOCK RING INSTALLING THE BATTERY: The BATTERY is designed to be mounted to your bike using the water bottle mounts on your bike's frame NOTE: On the frame is the recommended and generally considered ideal placement.
- Page 4 TURNING THE BATTERY ON / OFF: Press the red POWER SWITCH on the side of the BATTERY to turn the BATTERY on or off. You can find the switch under the rubber cover on the side CAUTION: Make sure to turn the BATTERY off when not in use to avoid accidental throttle engagement and battery drain.
- Page 5 INSTALLING THE HUB MOTOR WHEEL Please refer to FIG 1 on the following page for installing your new Hilltopper HUB MOTOR WHEEL. Please orient FIG 1 to your installation position. Installation positions include bike upside down with handlebars and seat resting on the ground, on a bike rack, or standing with the wheels on the ground.
- Page 6 FIG. 1 IMAGE ORIENTATION LOOKING AT THE FRONT OF THE BIKE WITH THE WHEELS ON THE GROUND THICK AXLE AXLE WASHER WASHER PROTECTOR CAP FORK FORK MOTOR CABLE AXLE AXLE DRIVE SIDE (CHAIN SIDE) DISC BRAKE ROTOR (IF BIKE HAS DISC BRAKES) MOTOR...
- Page 7 MAGNET WHEEL CONNECTING THE CABLES: The Horizon 36V BATTERY has 3 cable connections. These will be used to connect the VARIABLE SPEED THROTTLE, PEDAL ASSIST SENSOR and HUB MOTOR, to the battery. IMPORTANT: Be mindful of the arrows on each plug. Align arrows before inserting plugs together. Poor installation may result in damaged pins and bad connectivity.
- Page 8 sa le s@h i l l top p e r b i ke s .c om su p por t @h i l l top p er b i ke s .c o m 9 20 S O UTH HOLGAT E ST R EET ST E. 1 06 S EATT LE WAS HI NGTON 9 8 1 3 4...
