- Page 1 I N S T A L L A T I O N G U I D E...
- Page 2 Hilltopper community of electric bike enthusiasts. The Sprinter is our simple to use and easy to install kit that utilizes a water bottle battery and front hub motor. The install should take around an hour depending on your mechanical skills and enthusiasm.

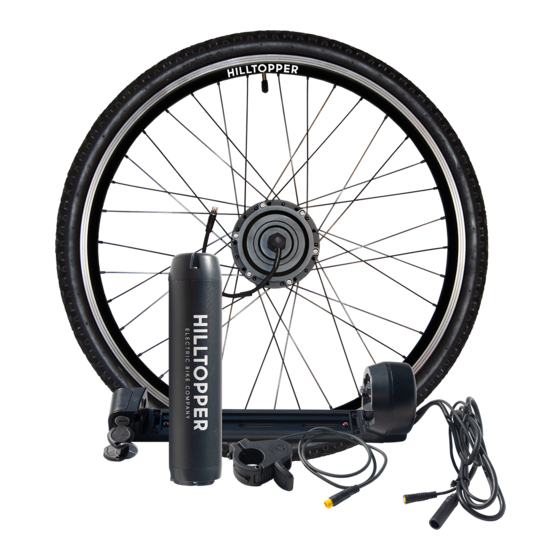

- Page 3 LET’S GET STARTED PARTS AND PIECES - WHEEL W/ HUB MOTOR,TIRE, TUBE, MOUNTING HARDWARE BATTERY, KEYS, BATTERY DOCK, MOUNTING HARWARE VARIABLE SPEED THROTTLE CHARGER INSTALLING THE BATTERY: The BATTERY is designed to be mounted to your bike using the water bottle mounts on your bike's frame NOTE: On the frame is the recommended and generally considered ideal placement.
- Page 4 INSTALLING THE HUB MOTOR WHEEL Please refer to FIG 1 on the following page for installing your new Hilltopper HUB MOTOR WHEEL. Please orient FIG 1 to your installation position. Installation positions include bike upside down with handlebars and seat resting on the ground, on a bike rack, or standing with the wheels on the ground.
- Page 5 FIG. 1 THIN THICK AXLE AXLE WASHER WASHER WASHER PROTECTOR CAP FORK FORK DRIVE SIDE (CHAIN SIDE) AXLE AXLE DISC BRAKE ROTOR (IF BIKE HAS MOTOR DISC BRAKES) CABLE MOTOR IMAGE ORIENTATION LOOKING AT THE FRONT OF THE BIKE WITH THE WHEELS ON THE GROUND “TAB”...
- Page 6 STEP 5: After everything is in place and where you want it TIGHTEN each part to avoid any movement once the bike is in use VARIABLE SPEED THROTTLE CONNECTING THE CABLES: BATTERY CABLES The Sprinter 36V BATTERY has 2 cable connections. BATTERY / THROTTLE IMPORTANT: BATTERY / MOTOR CONNECTOR Be mindful of the arrows on each plug.
- Page 7 Assumption of Risk, Release of Liability, Indemnity, and Hold Harmless Agreement By purchasing these Products, I understand and agree to the following: Bicycling and related activities are hazardous and injuries are common and ordinary occurrences during these activities. I agree to assume all risks of death or injury to any part of the user’s body while using the Products.
- Page 8 sa le s@h i l l top p e r b i ke s .c om su p por t @h i l l top p er b i ke s .c om 9 20 S O UTH HOLGAT E ST R EET ST E. 1 06 S EATT LE WAS HI NGTON 9 8 1 3 4...
