Installation manual

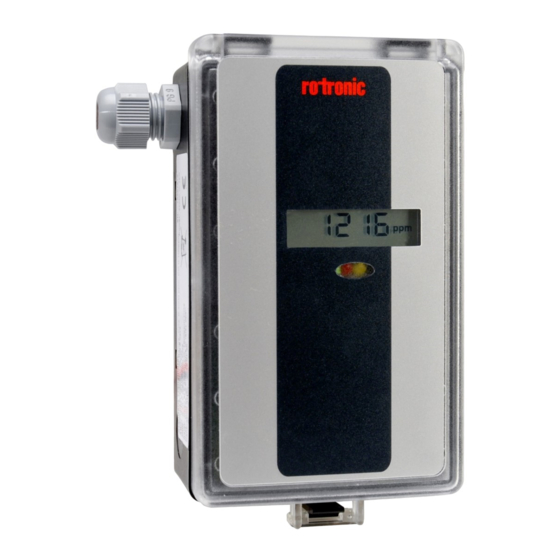

CF8-W-Disp-CO
in industrial wall mounted housing
CO
/ CO sensor with built-in general purpose
2
controller
9
1
6
10
8
Fig. 1
Wall plate
1
PCB (Factory supplied
2
mounted in box)
Temperature sensor for
3
internal compensation (not
shown)
RH sensor for internal
4
compensation (not shown)
10
2
5
3
4
7
Carbon monoxide sensor (not
5
shown)
Hole for wall plate hooks
6
Snap-in lid
7
Locking screw of the lid (not
8
shown)
PG9 cable entry bushing
9
Air holes
10
