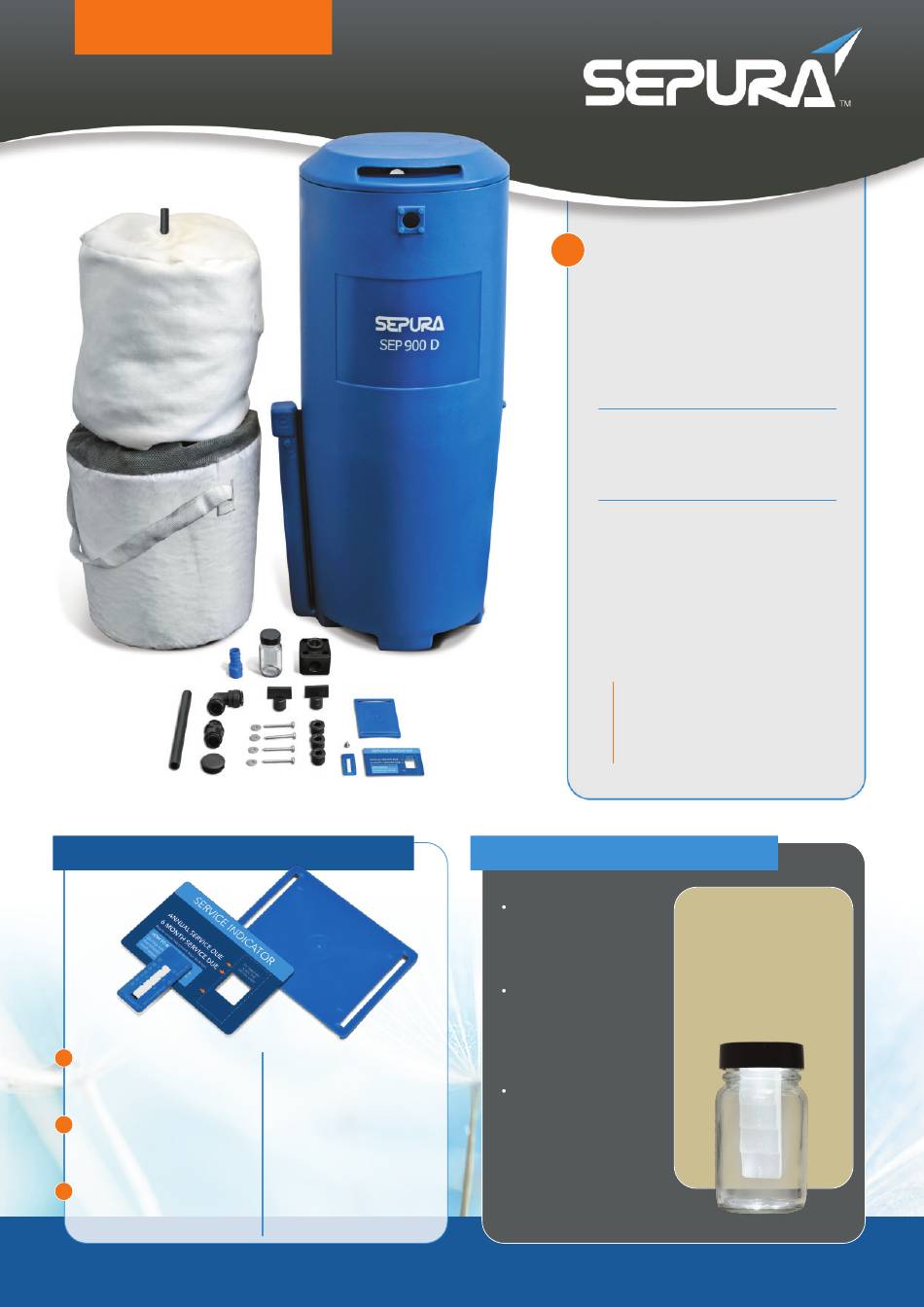

Sepura SEP 120 D Installation Manual

installation manual
SEP
120
/

Service Indicator - assembly and attachment

(b)
(a)
Insert the boss on the reverse of
i
the mount (c) into the pre-drilled
hole in the separator lid.
ii Peel backing from timestrip (a)
and attach to the plastic card (b)
within the dotted lines.
iii Flex the card, passing the ends
through the slots on the top
surface of the mount.
360 900/1250 D
/
(c)
To activate, press firmly on
the timestrip label at the
point indicated.
After a few minutes a red line
will appear, to indicate 'time in
service' up to 12 months
A replacement card and
timestrip will be supplied with
.
each service kit
superior

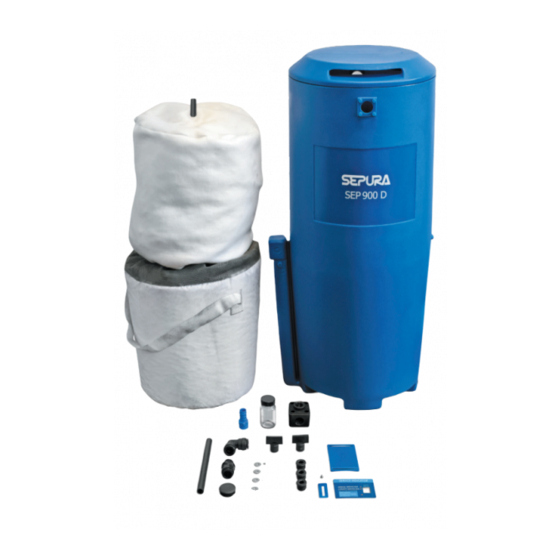

Before Starting Assembly, please
1
check contents are as follows:
•
1 White Felt Bag Filter with black tube
•
1 Carbon Filter
•
1 Test Bottle
•
1 Cleaner Tower (120, 360, 900 or 1250)
•
1 Drilled Lid
Service interval kit comprising;
• moulded plastic mount + screw
• printed card
• self-adhesive Timestrip.
Fitting kit containing;
• 1 Straight adaptor 15mm x 1/2" BSP
• 1 Blanking Plug - large
• 1 Elbow 15mm
• 1 Assembled Porting Block
• 3 Porting Block Small Blanking Plugs
• 4 Screw 4.8x45mm and washers
• 2 Grab Taps
• 1 Blue nylon adaptor
• 1 Black Tube:
SEP120 = 73mm
SEP360 = 100mm
SEP900 = 180mm
SEP1250 = 200mm

General Installation notes

Please ensure a steady
fall in the pipe run from
the outlet point to the
foul drain.
Never discharge
condensate to a storm
drain or to surface water;
always connect to a foul
drain or sewer.
Remember that it's the
user's responsibility to
check with the local
authority as to the
permissible discharges
in their area.
Further information is available on our website below.
www.sepura-technologies.com
technologies

Testing Quality

Replace filters before outlet
cloudiness exceeds the ppm
limit for your region.
Test outlet quality weekly
using kit provided.
