Sepura SEP 3500 ST Installation Manual

installation manual
SEP
3500
Service Indicator - assembly and attachment
(b)
(a)
i Insert the boss on the reverse of
the mount (c) into the pre-drilled
hole in the separator lid.
ii Peel backing from timestrip (a)
and attach to the plastic card (b)
within the dotted lines.
iii Flex the card, passing the ends
through the slots on the top
surface of the mount.
ST &
7000
(c)
To activate, press firmly on
the timestrip label at the
point indicated.
After a few minutes a red line
will appear, to indicate 'time in
service' up to 12 months
A replacement card and
timestrip will be supplied with
.
each service kit
ST
1

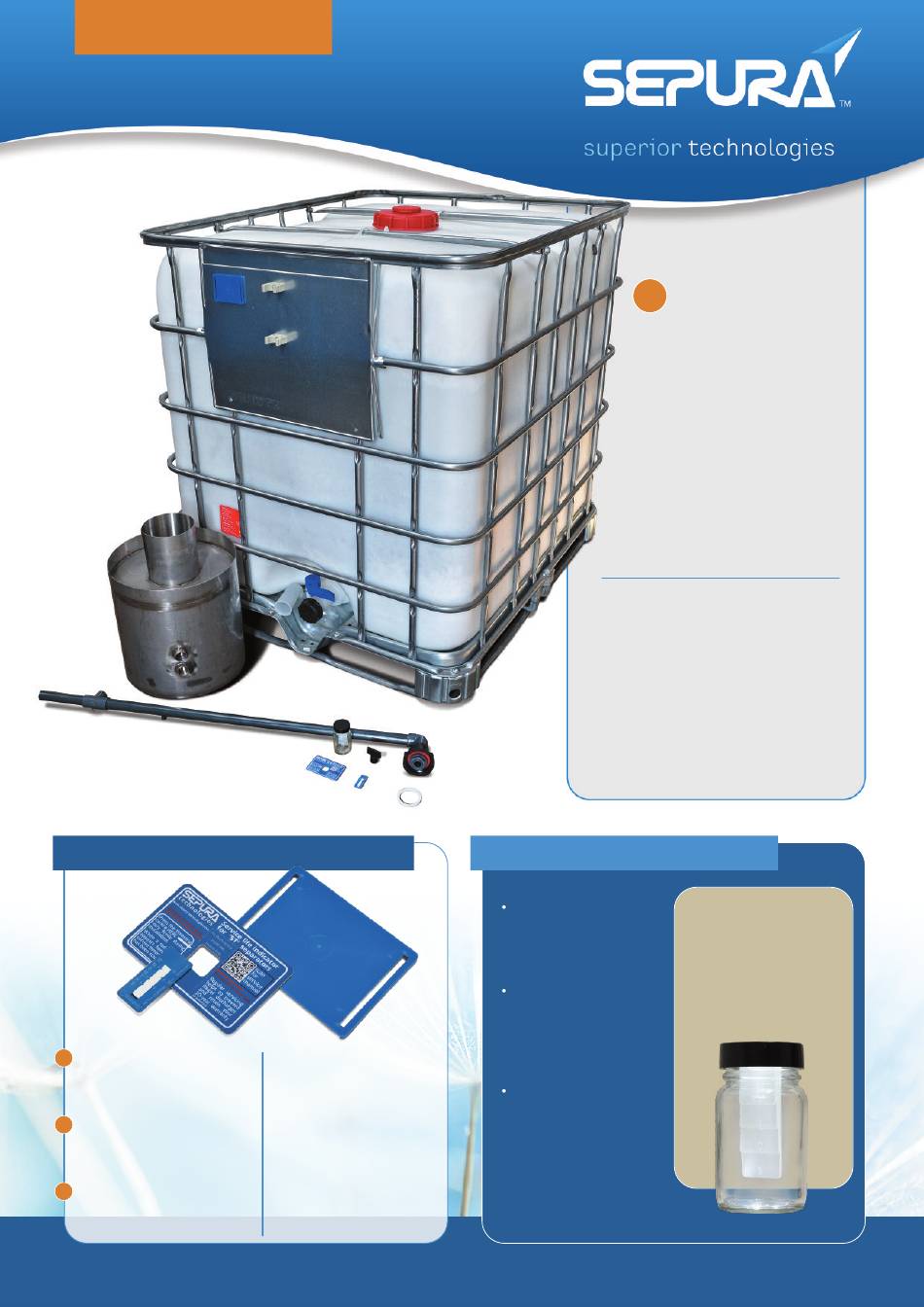

Before Starting Assembly,
please check contents are
as follows:
• 1 Unit/filter
• 1 Diffuser
• 1 Outlet Pipe
• 1 White sealing ring
• 1 Test kit/bottle
•
1 Grab Tap
Service interval kit comprising;
• moulded plastic mount + screw
• printed card
• self-adhesive Timestrip.
See below left for instructions.
General Installation notes
Please ensure a steady
fall in the pipe run from
the outlet point to the
foul drain.
Never discharge
condensate to a storm
drain or to surface water;
always connect to a foul
drain or sewer.
Remember that it's the
user's responsibility to
check with the local
authority as to the
permissible discharges
in their area.
Further information is available on our website below.
www.sepura-technologies.com
Testing Quality
Replace filters before outlet
cloudiness exceeds the ppm
limit for your region.
Test outlet quality weekly
using kit provided.
