Sepura SEP 60 ST Installation Manual

installation manual
SEP
60
installation
2

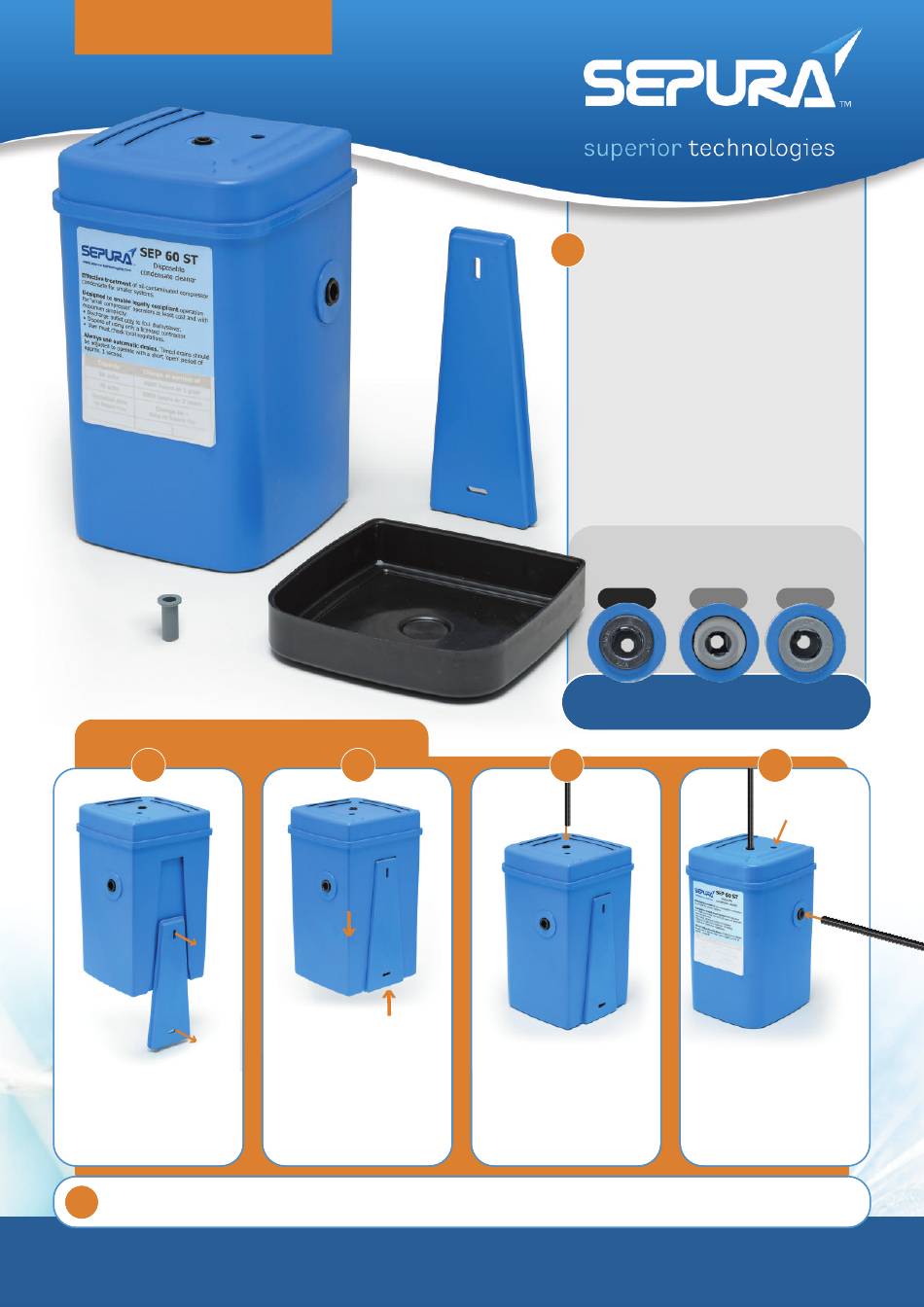

Fix the wall plate vertically on a
suitable wall or the compressor
cabinet. Isolate the compressor
and look out for cables and pipes
when drilling.
Important Always use an automatic drain. Set timers to short open periods of one second or less.
6
NEVER use manual drains which could flood the separator, forcing partially treated or untreated condensate to be discharged.
ST
Single Use
Condensate Cleaner
3
Slide the SEP60 on to the plate,
with the venting flutes at the top.
Before Starting Assembly, please
1
read the following:
SEP 60 ST is a single-use product. It should
be replaced as directed to ensure its vital
environmental and legally protective
functions are performed correctly.
SEP 60 ST has been designed to clean
condensate from a compressor system of
up to 60cfm (1.7m3min) to better than
10ppm oil-in-water; suitable for discharge
to a sewer. Note: This is generally
well below the accepted level, but it
is the users responsibility to ensure
compliance with local regulations.
The unit comes shipped with a
6mm inlet port as standard
8mm
Other size inlet ports are availble as shown
above. Please specify when ordering.
4
INLET
Connect all drain points, insert tube
into push fitting in the inlet (top).
• 6mm tube for metric
• 1 / " tube for imperial
4
www.sepura-technologies.com
Top Inlet Port
1/4" 5/16"
5
Anti-siphon Vent
(Do NOT block)
OUTLET
Connect tube into outlet fitting and
feed to drain (side). Ensure a
steady fall from outlet point to
drain with no kinks or tight bends.
• 10mm tube for metric
3 /
• " tube for imperial
8
