CHOPIN KNX
Installation Manual
Safety instructions
Before operating the unit, please read this manual thoroughly and retain it for future reference.
Failure to observe these instructions might damage the device.
The device may only be installed and connected by professional electrical contractors.
All relevant rules and regulations valid in the country of use, as well as KNX guidelines, apply.
Description

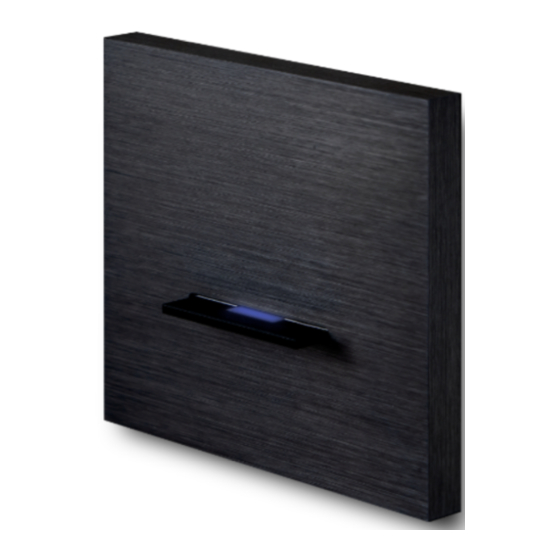

Chopin KNX is a mechanical switch compatible with all Chopin cover plates, both 1- and 2-gang.
The Chopin's levers control various functions, using both short and long press.
Additional comfort functions can be activated including room toggle, scene sequencer and RGB sequencer. The
multicolour LED backlight provides status feedback and can be used as night light.
The Chopin KNX also has a built-in temperature sensor and integrated thermostat logic. A scene controller can
control up to 6 scenes and 8 outputs per scene.

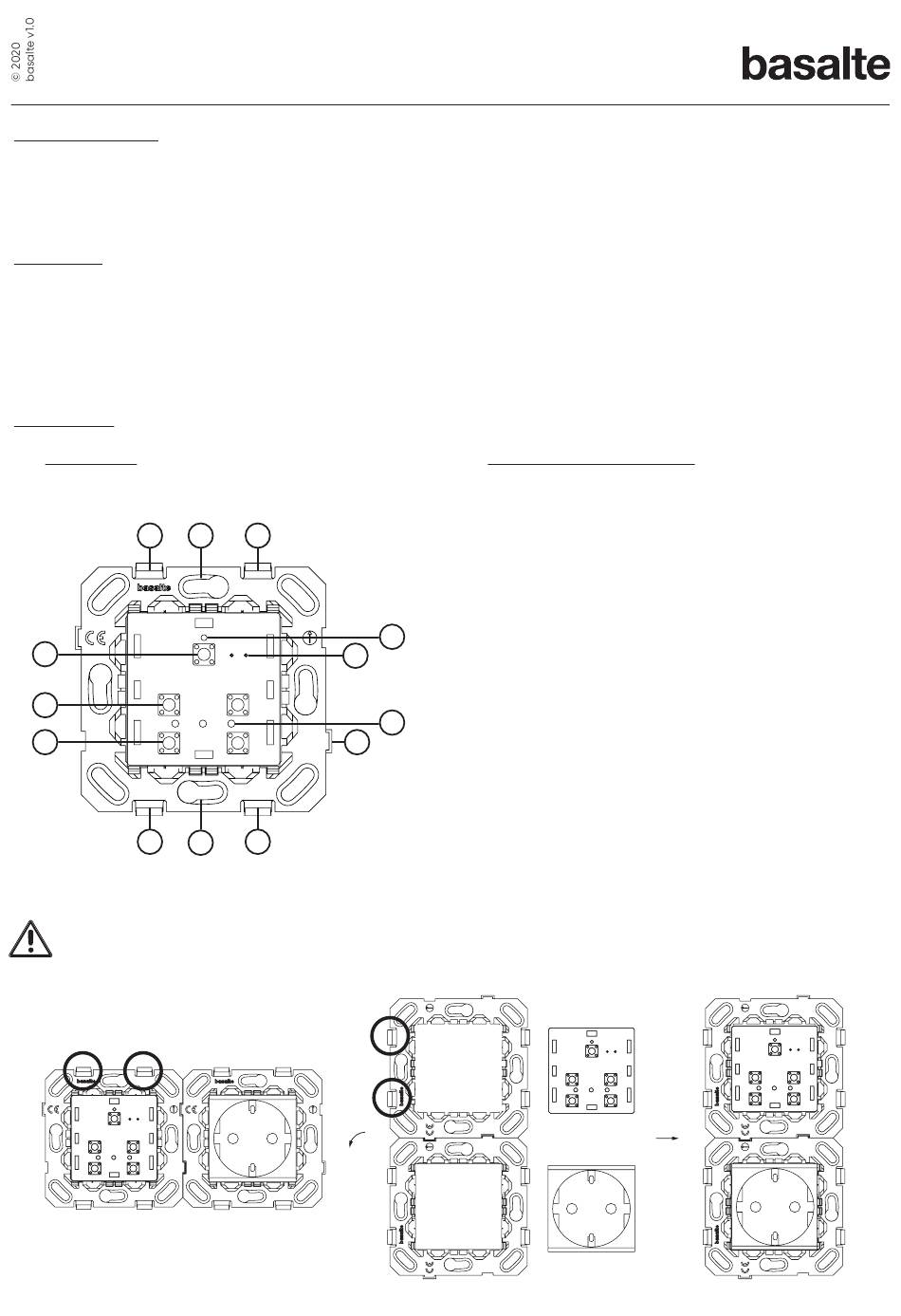

Components
Chopin KNX
Model No. 0220-02
F
B
H
H
F
When using vertical oriented Chopin covers, the clips to mount the cover plate need to be oriented
vertically. Make sure to click out electronics from the socket adapter and turn the electronics 90°
counter-clockwise.
1 1 1 1 3 3 3 3
2 2 2 2 4 4 4 4
E F
D
1 3
G
2 4
F
E
Compatible Chopin covers
Visit chopin.basalte.world to
configure your Chopin cover.
A RGB LED's
B Program button
C Programming LED
D Temperature sensor connector pins*
C
*The sensor is located in the Chopin cover plate
(not included).
*2-gang covers only have one temperature
sensor, check the back of the cover to verify its
A
position.
E Opening to screw the Chopin switch to the wall
box
F Clips to mount the cover plate
G Alignment guides for 2-gang installations
3 3 3 3
1 1 1 1
2 2 2 2 4 4 4 4
3 3 3 3
1 1 1 1
2 2 2 2 4 4 4 4
