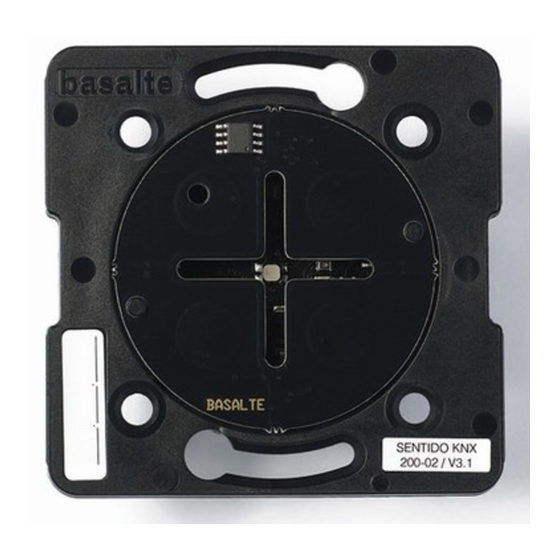

The Sentido switch for KNX is a four way touch sensor.
The Sentido switch has to be used in combination with the Sentido front covers, either four-way or two-way.
By touching each of the four touch sensitive area's you can use KNX to execute a range of functions incuding switching,
dimming, operating blinds, activating scenes, etc.
Touching a touch sensitive area will give a visual feedback by means of lighting up the central RGB led.
The central RGB led can also be controlled by KNX to provide a visual feedback of statuses. The led can also be used to
illuminate the switch in the dark.
The Sentido switch uses the patented Multitouch technology. Touching more than one touch sensitive area at the same time
activates an additional comfort function wich also can be used by KNX.

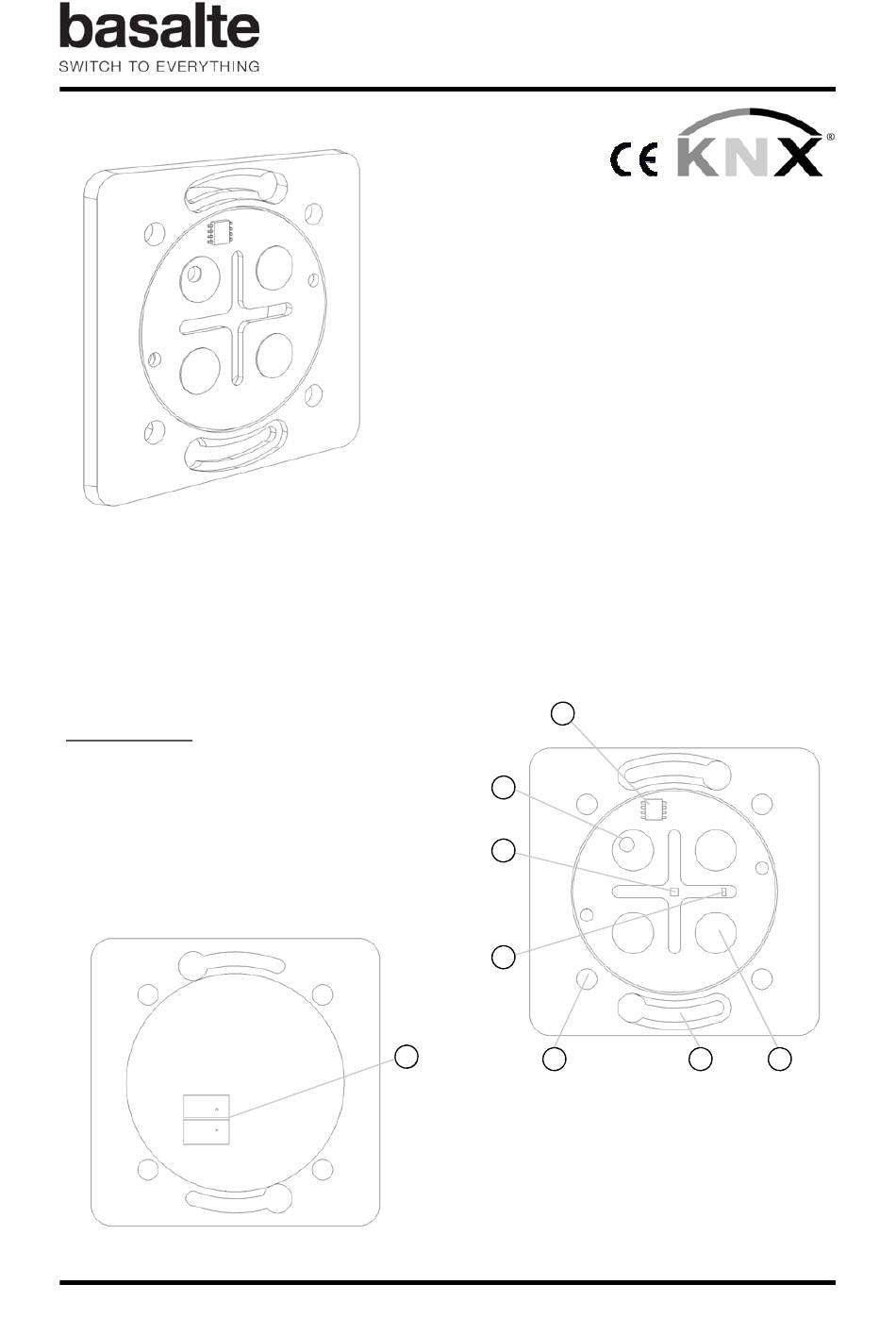

Identitifying the parts

A
RGB-led
B
Programming button
C
Programming led
D
Touchsensor (with according no. to be programmed in ETS)
E
Temperature sensor
F
Opening to screw the device into the backbox
G
Guide for the Sentido front cover
H
KNX connector
Rear
-
+
Before operating the unit, please read this manual thoroughly and
retain it for future reference.
Model No. 200-02
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
Caution: The device could become damaged.
Never connect the device to 230V!
Caution: The device may only be installed and connected by
professional electricians. Observe the regulations valid in the country
of use, as well as valid KNX guidelines.
E
B
A
C
H
G
Sentido KNX
Installation Manual
1
2
4
3
F
basalte is a registered trademark of Basalte bvba.
Multitouch is a patented technology by Basalte bvba.
Sentido is a registered design of Basalte bvba.
KNX is a registered trademark of the KNX organisation.
004-006-03 v1.7 © 2010 basalte
Front
D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sentido KNX and is the answer not in the manual?

Questions and answers

Summary of Contents for Basalte Sentido KNX

  • Page 1 Guide for the Sentido front cover KNX connector Rear basalte is a registered trademark of Basalte bvba. Multitouch is a patented technology by Basalte bvba. Sentido is a registered design of Basalte bvba. KNX is a registered trademark of the KNX organisation.
  • Page 2 Sentido switch. Depending of the Sendido front cover all four or only two touch sensors will be used. Caution: When using the dual Sentido front cover, program sensor 2 and 3 as ‘off’. Only sensor 1 and 4 will be used. Use the ETS database file you can find on our website www.basalte.be. Calibration In order to function properly, the sensors of the Sentido switch need to calibrate to the environment.
