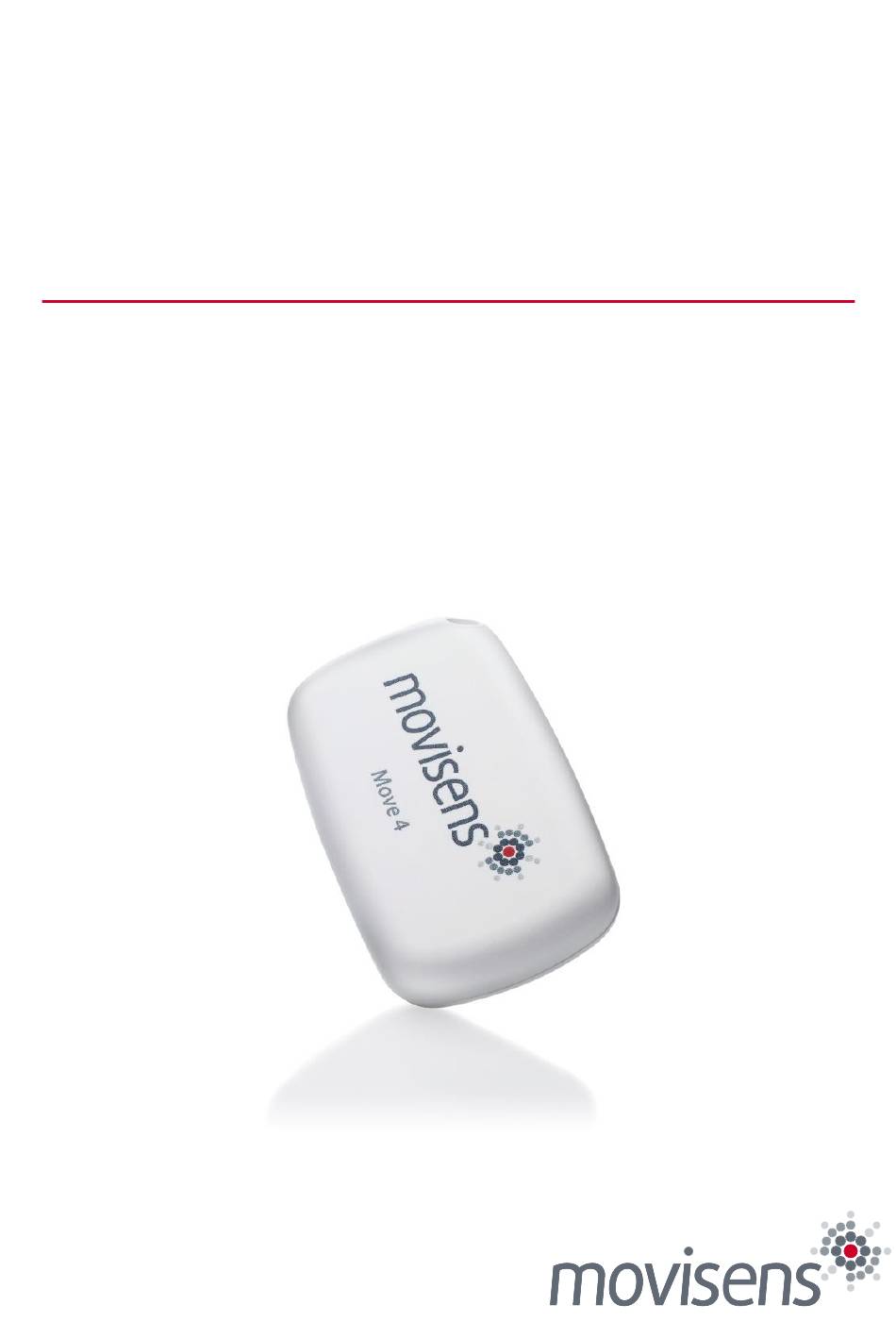

  • Page 1 Move 4 Physical Activity Sensor Operating and Safety Instructions...
  • Page 2 Imprint Move 4 Operating and Safety Instructions Version: 21.08.2019 movisens GmbH Augartenstraße 1 76137 Karlsruhe Germany Phone: +49 721 381344-0 Fax: +49 721 381344-90 Internet: www.movisens.com E-Mail: info@movisens.com © Copyright: movisens GmbH...
  • Page 3 1 Welcome! Dear customer, Thank you for choosing the Physical Activity Sensor Move 4 from movisens. With this sensor, you get the newest technology for mobile monitoring of physical activity in everyday life. Please read this manual completely and thoroughly before bringing the...
  • Page 4: Intended Use

    2 Intended use Move 4 is a scientific research instrument that captures the physical activity and other secondary parameters derivable from these measurement signals. Move 4 is designed and tailored for the use in research applications. The physical activity sensor Move 4 is not a medical device!
  • Page 5: Safety Instructions

    Please follow these safety instructions. Improper use of the product may impair/affect the protection provided by the product and cause product damage or personal/physical injury: Move 4 is not a medical device. Do not use it for a medical purpose. Only use Move 4 for the intended use.
  • Page 6: Scope Of Delivery

    5 Scope of Delivery The following components are included in delivery: Article Order No. Move 4 Physical Activity Sensor, Cradle, 10400 Micro USB cable, Belt Clip, Operating and safety instructions To be able to do measurements a PC is needed in addition to the scope of delivery.
  • Page 7 Size: XL Wrist Measurement: 20 to 28 cm Hip Belt Elastic Belt with SensorFix 30412 Hip Measurement: 67 cm to 125 Cradle 4 Cradle for Move 4 30400 with Micro USB Interface USB Charger 30100 USB Charger for 110-240V USB Hub 30101 USB Hub 2.0, 7 Ports...
  • Page 8 To deactivate this interface, a firmware update is required. The axes of the integrated acceleration sensor are defined as described in the following figure: 9 User interface and indicators Move 4 is equipped with a multi-colored LED to show the status of the sensor:...
  • Page 9 Status-LED Meaning Flashing red (once The sensor is active and records per second) data Flashing red slowly (every two Delayed recording active seconds) The sensor is connected to a PC or Flashing green a charger. The battery is fully charged. The sensor is connected to a PC or Flashing blue a charger.
  • Page 10: Software Installation

    Move 4 features a vibration alarm. It vibrates two times when a marker is set. During measurement a marker can be set by double tapping on the front of the sensor.
  • Page 11: Preparing A Measurement

    ✓ If the sensor is fully charged, the battery run time during recording is 3 days. 11.2 Preparing a Measurement Step 1: Start the SensorManager by selecting Windows Startmenu → movisens SensorManager → SensorManager...
  • Page 12: Starting A Measurement

    Step 2: Connect the Move 4 sensor to your PC using the cradle. The SensorManager application shows information about sensor hardware, sensor state and sensor configuration. Before you start a measurement please check the charging status of the battery. The maximum measurement duration can only be reached when the battery is fully charged.
  • Page 13 Use the belt attachment to attach the sensor to the right side hip. The movisens logo should face directly to the right as depicted in the following image. Use the wrist band to attach the sensor to the non-dominant hand of the test person.
  • Page 14: Stopping A Measurement

    Disposable electrodes can also serve as an attachment mechanism, and can be used at various locations such as upper arms, thighs, and chest Depending on the position of the sensor, different parameters can be analyzed after the measurement. For more details refer to the user manual of the DataAnalyzer.
  • Page 15: Storing Measurement Data

    Step 1: Start the SensorManager by selecting Windows Start menu → movisens SensorManager → SensorManager Step 2: Connect Move 4 sensor to the PC using the cradle. Step 3: Click on „Save Data“. Step 4: Please type in the requested information.
  • Page 16: Maintenance

    12.1 Cleaning the Sensor If you want to clean Move 4 and plastic attachment parts, please note the following: Disconnect the sensor from band/belt or cradle. ⚫ Use fast-acting alcoholic surface disinfectant (e.g. Meliseptol Foam ⚫ Pure) to clean the complete sensor housing. Respect the instructions of the manufacturer.
  • Page 17: Proper Disposal

    Besides charging the batteries, Move 4 does not need any further maintenance. The battery capacity will decrease slowly with charging cycles and age. The battery can only be changed by movisens. Please contact us in the case when a replacement is necessary.
  • Page 18: Technical Data

    15 Technical Data Power supply Lithium-Polymer-Battery, 3,7V Number of charging cycles 300 (with 1 C / 1 C > 80%) Internal memory 4 GB Maximum recording capacity 2 weeks Battery run time ~ 3 days Recharging time ~ 1 hour Connectors USB 2.0 via Micro-USB, 5V, 500mA Size of sensor (W x H x D)
  • Page 19 Heart Rate, bpmBxB, NN-List, HRV Live Analysis Rmssd, HRV is valid, Movement Acceleration, Step count LED, 3-color Indicators Vibration alarm User Interfaces Marker (tapping) Wireless interface Bluetooth Smart (4.0) Java API for USB (Windows) Java Bluetooth Smart Gatt Library Wear locations Chest Wearing systems Chest Belt, adhesive Electrodes...
  • Page 20: Legal Notes

    herein.
