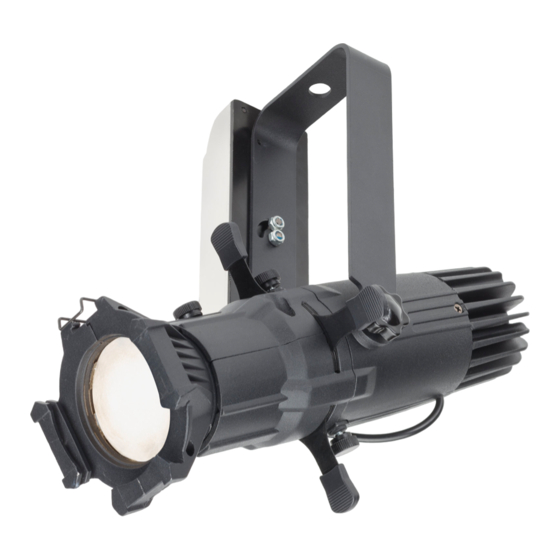

- Page 1 Mini Stingray Variable White USER MANUAL Elektralite (a division of Group One), 70, Sea Lane, Farmingdale, NY11735, U.S.A. T. +1 (631)-396-0184. F. +1 (631)-396-0190 WWW.MYELEKTRALITE.COM...
-
Page 2: Safety Instructions
VW Mini Stingray is a high voltage fixture. Be careful when dealing with high voltages. Please read this manual. If you do not read this manual and damages occur to the Elektralite VW Mini Stingray, then it could void the warranty. -
Page 3: Main Features
4. Main Features. • 1*20W COB LED (2in1 Warm white + Cool white) • Color Rendering Index (CRI): Ra≥90 • Optimized high definition optical system for improved photometric performance and field uniformity • Projector-quality, high contrast aspheric lens • Glass reflector that removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light •... -
Page 4: Changing Lenses
Do not clamp the cable to the U bracket or clamp. That is not a secondary safety point. A secondary safety point is any point that will adequately hold the Elektralite VW Mini Stingray if the "C" clamp or half cheesboro fails. -
Page 5: Dmx-512 Connection With Dmx Terminator
Connect an XLR cable (not provided) to the female 5-pin XLR output of the DMX controller The other end should be connected to the male 5-pin XLR input of the Elektralite VW Mini Stingray . Then daisy-chain out of the first Elektralite VW Mini Stingray and into the next Elektralite VW Mini Stingray or other dmx device. - Page 6 The DMX module and integral power supply...
- Page 7 7. Menus in the fixture. Press the MENU button to change the menu On the Screen Description Operation Advanced Use the ↑ or ↓ buttons to choose the DMX starter address. Press “A” uses the 5 channel dmx the ENTER button to save. profile for the fixture “d”...
- Page 8 8. Sound Sub menus. When the screen displays the word “Sound” if the “enter button is pressed and held down for several seconds, then a new Sub Menu is activated with the following parameters. On the Description Operation Description Screen LED time “on”...
- Page 9 9. Fixture Personality. There are just two fixture personalities or profiles and they are as follows Channel Data Function 0~255 Master Dimmer 0~255 Cool white 0~255 Warm White No function 6~255 Strobe: 6 is slowest, 255 is fastest 0~25 Turn on “delay by controller” 26~100 Turn off “delay by controller”...
-
Page 10: Cleaning And Maintenance
11" x 5" x 5" 2.0 kgs 4.4 pounds Elektralite is a division of Group One. Group One and its divisions are constantly improving their product range and we reserve the right to make changes without prior notice. -
Page 11: Other Products
Lee 170 Lavender are flawlessly achieved. The Elektralite 1018 Using 18 high powered 12 watt leds, the Elektralite 1018 is available using 4-in-1 or 6-in-1 leds. Each led can produce any combination of colors as each led is either an RGBW or RGBWAI device... - Page 12 16 bit pan and tilt. Elektralite Stingray Ellipsoidal The Elektralite Stingray is a 300 watt LED ellipsoidal with the output of a conventional 750 watt fixture. Different LED types are available including Warm White, Daylight (5600K) and RGBL...
- Page 13 Elektralite SLA The SLA is the perfect compact IP65 fixture for accent lighting everything from trees and walls to product high lighting. Even though it is compact it packs a massive punch with its 15 watt Cree RGBW leds.
