elektraLite eyeBall RGBWA User Manual

Led 5-in-1
Hide thumbs Also See for eyeBall RGBWA:
Table of Contents

Advertisement

Quick Links

Download this manual

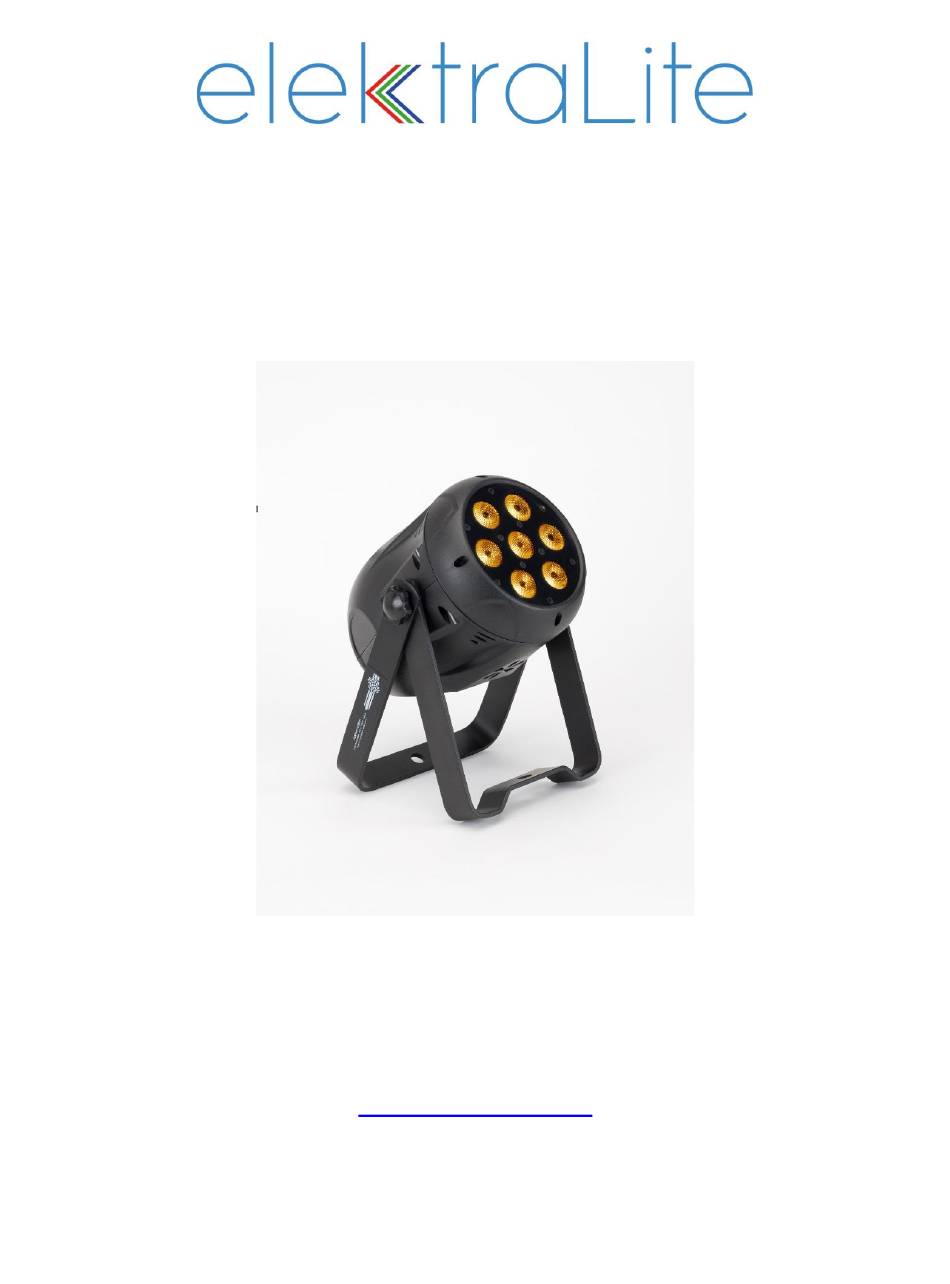

ElektraLite LED
eyeBall RGBWA (5-in-1)
USER MANUAL
ElektraLite (a division of Group One),
70, Sea Lane, Farmingdale, NY11735, U.S.A.
T. +1 (631)-396-0184.
www.myElektraLite.com
(Version2.0)
F. +1 (631)-396-0190

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eyeBall RGBWA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for elektraLite eyeBall RGBWA

Summary of Contents for elektraLite eyeBall RGBWA

  • Page 1 ElektraLite LED eyeBall RGBWA (5-in-1) USER MANUAL (Version2.0) ElektraLite (a division of Group One), 70, Sea Lane, Farmingdale, NY11735, U.S.A. T. +1 (631)-396-0184. F. +1 (631)-396-0190 www.myElektraLite.com...

  • Page 2: Safety Instructions

    Please keep this manual for future reference. ElektraLite eyeBall (5-in-1) wash fixture uses 7 high powered 12 watt quad leds, derated to run at 10 watts in a balanced arrangement giving incredible output. Please unpack the ElektraLite eyeBall (5-in-1) carefully and check whether it was damaged in shipping.

  • Page 3: General Guidelines

    Never hang the fixture without a safety chain or cable. Make sure the Gel frame (Gel holder) is clipped into position correctly and cannot come loose. If you are not qualified or have any doubts about hanging the ElektraLite eyeBall (5-in-1) then do NOT hang it.

  • Page 4: Dmx-512 Control Connection

    The DMX terminator is simply a 5 pin XLR plug (male) with a 120 Ω resistor connected between pins 2 and 3. It is then plugged into the output XLR socket of the last ElektraLite eyeBall (5-in-1) or other dmx device in the chain. Please see illustration below.
  • Page 5 6. Menus in the fixture. Root Menu Sub Menu 1 Sub Menu 2 STAT (STATIC LOOK) 000-255 GREEN 000-255 BLUE 000-255 WHITE 000-255 AMBER 000-255 STROBE 000-255 AUTO (AUTOMATIC) ( (AUTOMPROGRAMS) GREEN BLUE WHITE AMBER YELLOW CYAN PURPLE RGBWA (ALL AT MAX OUTPUT) EFFECT 1 (inbuilt program 1) EFFECT 2 (inbuilt program 2) EFFECT 3 (inbuilt program 3)

  • Page 6: Auto Programs

    Do not press MENU as this will get you out to the Root directory and out of the static look. 8. Auto Programs. In Auto Program the ElektraLite eyeBall (5-in1) can be set to output a selection of fixed colors or run some inbuilt programs (shows). The choice of colors are Red, Green, Blue, White, Amber, Yellow, Cyan, Purple and "combined white".
  • Page 7 Enter to exit out and back to the Root Menu again. ID Address An ElektraLite eyeBall (5-in-1) can be addressed (controlled) through the dmx or instead it can have its own unique ID address. There are a total of 255 different ID addresses from 001 to 255.
  • Page 8 12. Settings. (Set has several Sub Menus which allow the following functions to be used). 1). DIMMER The Dimmer function allows different Dimmer curves to be chosen. There are 5 choices. Choice 1 :- this is Dim off. The Dimmer curve is 0 which means any change in dimmer level is instantaneous.

  • Page 9: Rgb To White

    13. RGB to WHITE When RGB to WHITE is turned on under the SETTINGS menu, then the RGB to WHITE calibration can be done in the root menu. In fact it is a little bit misleading saying the RGB to white calibration because in fact the eyeBall will allow you to calibrate white using all the "raw components"….meaning RGBW and A.
  • Page 10 16. Personality tables. (for the personality STAG please refer to the DMX channel assignments on pages 13 & 14. STAG uses all 12 channels as shown in the dmx channel assignment table). ARC1 0-255 0-255 GREEN 0-255 BLUE 0-50 Linear dimmer speed（DIM=OFF） 51-100 nonlinear speed1（DIM1）...
  • Page 11 16. Personality tables (Cont). ARC2+S 000-255 MASTER DIMMER 000-255 000-255 GREEN 000-255 BLUE 000-255 WHITE 000-009 NO FUNCTION 010-049 SYNCHRONIZED STROBE SLOW SPEED 050-099 NON SYNCHRONIZED STROBE SLOW SPEED 100-149 RANDOM STROBE SLOW SPEED 150-199 NON SYNCHRONIZED STROBE FAST SPEED 200-255 SYNCHRONIZED STROBE FAST 0-50...
  • Page 12 ARC3+S 000-255 MASTER DIMMER 000-255 000-255 GREEN 000-255 BLUE 000-255 WHITE 000-255 AMBER 000-009 NO FUNCTION 010-049 SYNCHRONIZED STROBE SLOW SPEED 050-099 NON SYNCHRONIZED STROBE SLOW SPEED 100-149 RANDOM STROBE SLOW SPEED 150-199 NON SYNCHRONIZED STROBE FAST SPEED 200-255 SYNCHRONIZED STROBE FAST 0-50 Linear dimmer speed（DIM=OFF）...

  • Page 13: Dmx Channel Assignments

    17. DMX Channel Assignments. Grand Master for RGBWA 0-255 Leds 0-255 GREEN Leds 0-255 Blue Leds 0-255 White Leds 0-255 Amber Leds No effect 0-010 Snap to Red 255 Crossfade Red 255→000 Green 000→255 012-050 Crossfade Green 255→000 Blue 000→255 051-090 Crossfade Red 000→255...

  • Page 14: Cleaning And Maintenance

    The clear front plastic cover for the lenses should be cleaned so the light output is maintained. With the ElektraLite eyeBall (5-in-1) turned off, use only a moist lint-free cloth, and clean the plastic cover. Never use alcohol or solvents to clean the fixture. Never spray anything onto the fixture at the front or in any place on the fixture.

  • Page 15: Other Products

    20. Other Products. For other great products that are manufactured under the ElektraLite product line, please go to the website at www.myElektraLite.com A preview of the products include:- ElektraLite ML602...
  • Page 16 ElektraLite LightStream ElektraLite DazerIP65 in white...
