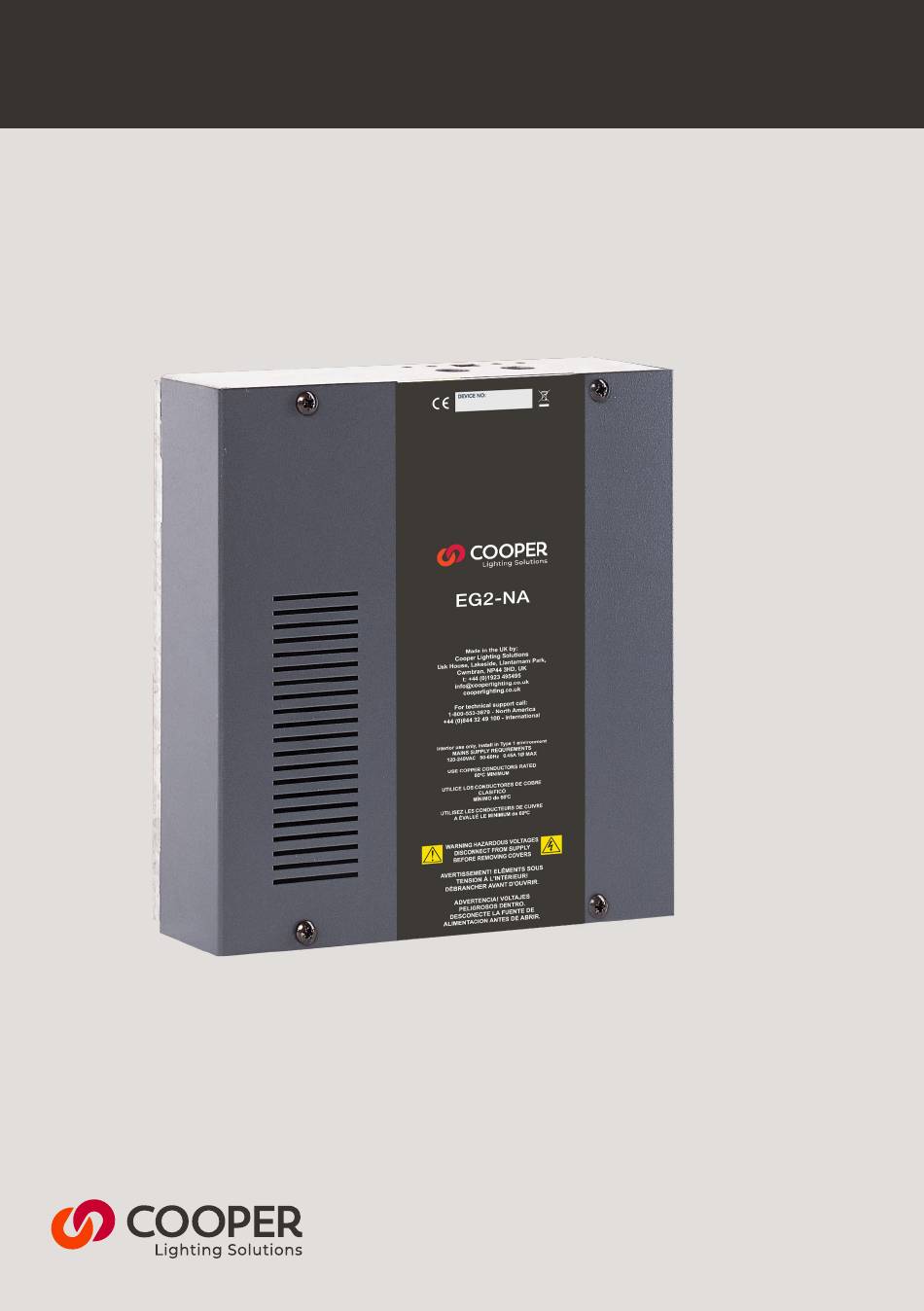

- Page 1 Installation Guide EG2-NA Ethernet Gateway...
-
Page 2: Table Of Contents
Supply Wiring Setup Instructions Please Read This First The EG2-NA is built and tested to strict safety regulations. By following the steps listed below and elsewhere within this guide, you can ensure safe installation and operation of these controller units. -
Page 3: Introduction
Humidity: 20% to 90% non-condensing in place (or by connecting a wireless router into Configuration and sequence memory the EG2-NA) the user can access the network with a Wi-Fi enabled PC running iCANsoft. Field upgradable FLASH program memory The Ethernet Gateway is also the host for the... -
Page 4: Product Overview
Product Overview Mounting Location and spacing The EG2-NA should be installed in a dry ventilated location, where ambient conditions are maintained within the requirements of the unit. The unit has ventilation slots on its sides to allow convection cooling and under no circumstances should these be blocked. -
Page 5: Control Wiring
Devices on an iCAN network can be cables. If the EG2-NA is located in the middle of wired in any order. Termination is required at the network, incoming and outgoing cables will both ends of the network. -
Page 6: Setup Instructions
Green CAN LED to flash slowly. The Ethernet Switch or Wireless Router. Green Power LED will double flash continuously while EG2-NA is on. If Ethernet is connected Ethernet Input the Link and Data LEDs will indicate successful connection. - Page 7 For details of setting the IP address of your computer consult information online specific to your Operating System. If the EG2-NA you are configuring is at the factory default settings, the following settings are suggested when assigning a static IP...
- Page 8 Tel: +44 (0)844 324 9100 (available Mon-Fri 9am-5pm GMT) Email: cctechsupport@cooperlighting.com All products manufactured by Cooper Lighting Solutions are warranted to be free from defects in material and workmanship and shall conform to and perform in accordance with Seller’s written specifications.
