Read these instructions for use carefully and keep them for later
use, be sure to make them accessible to other users and observe
the information they contain.
WARNING
• This device may be used by children over the age of eight and by people with
reduced physical, sensory or mental skills or a lack of experience or knowledge,
provided that they are supervised or have been instructed on how to use the
device safely, and are fully aware of the consequent risks of use.
• Children must not play with the device.
• Cleaning and user maintenance must not be performed by children unless
supervised.
• Disconnect the device from the mains supply during cleaning.
• Clean the device using only the methods specified. Under no circumstances
must liquid enter the fan unit.
• Do not use any solvent-based cleaning products.
• If the mains connection cable of this device is damaged, it must be disposed
of. If it cannot be removed, the device must be disposed of..
Dear customer,
Thank you for choosing one of our products. Our name stands for high-quality, thoroughly tested products
for applications in the areas of heat, gentle therapy, blood pressure/diagnosis, weight, massage, beauty, air
and babycare.
With kind regards,
Your Beurer team
Getting to know your device
Humans spend a large proportion of their time indoors. The air indoors is often polluted with dust particles,
pollen, animal hair, odours, harmful gases as well as various bacteria and viruses and, particularly in winter,
is also too dry. Ambient air that is too dry and contaminated may have a number of negative effects. The

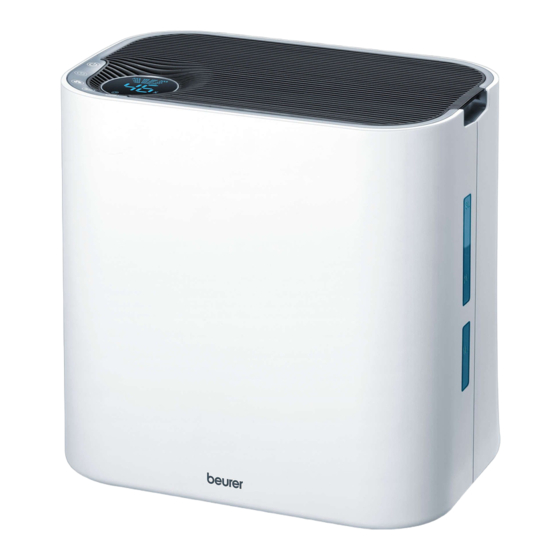

LR 330 air purifier humidifies air that is too dry and simultaneously cleans the air with a 3-layer filter system.
The LR 330 air purifier
• Washes and humidifies air particularly hygienically
• Filters air with a combi filter (Activated carbon filter against harmful gases and unpleasant odours, EPA filter
E 10 against particles such as bacteria, viruses, mites, pollen and fine dust)
• Operates quietly with three output levels
• Can humidify a room up to a preset target humidity (e.g. 55% air humidity)
• Has a timer function (1 to 12 hours)
• Suitable for rooms up to 35 m² in size
• Consumes little energy and automatically switches off if the water runs out
ENGLISH
14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LR 330 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Beurer LR 330

  • Page 1 Ambient air that is too dry and contaminated may have a number of negative effects. The LR 330 air purifier humidifies air that is too dry and simultaneously cleans the air with a 3-layer filter system.
  • Page 2: Table Of Contents

    Principle of air cleaning 1. The quiet and low-energy fan sucks the contaminated air in from the side air inlet. 2. The contaminated air is pre-cleaned by the built-in combi filter (activated carbon filter/EPA filter). In addi- tion, the pre-filter filters larger particles and hairs (in general) from the air. 3.
  • Page 3: Included In Delivery

    1. Included in delivery • 1x Air purifier • 1x combi filter (activated carbon/EPA filter class E 10) • 1x pre-filter • 1x these instructions for use 2. Signs and symbols The following symbols appear in these instructions for use: WARNING Warning instruction indicating a risk of injury or Manufacturer...
  • Page 4: Intended Use

    Repairs WARNING • Only specialist personnel may perform repairs on electrical devices. Improper repairs may subject users to considerable danger. For repairs, please contact Customer Services or an authorised retailer. • Do not open the fan unit. Risk of fire WARNING There is a risk of fire if the device is used improperly or these instructions for use are ignored.
  • Page 5: Device Description

    5. Device description 1 Housing cover 7 Pre-filter Filters coarse dust and dirt, such as hairs 2 Water tank and screwed plug 8 Filter cover 3 Air outlet 9 Mains cable 4 Illuminated display 10 Disc set 5 Air inlet 11 Tray 6 combi filter (activated carbon/EPA filter class E 10) Activated carbon filter: against harmful gases,...
  • Page 6: Initial Use

    6. Initial use 6.1 Removing the air purifier 1. Open the cardboard packaging. 2. Remove the device from the top of the box without opening the film bag. 3. Now remove all films and the transport lock of the disc set (in the tray). Ensure that you remove all the foam padding from the disc set.
  • Page 7: Usage

    7. Usage 7.1 Switching on the air purifier 1. Always follow the instructions in chapter “5 Initial use”. 2. Press the ON/OFF button ( ) to switch on the air purifier. The current ambient humidity is shown on the display. When the air purifier is used for the first time it is set to the middle humidity level.
  • Page 8: Replacing The Combi Filter And Pre-Filter

    6. Close the water tank again. Ensure that the screwed plug is screwed on correctly and the water tank is sealed shut. 7. Carefully place the water tank back into the housing from above. 8. Replace the top housing cover back onto the housing. 9.
  • Page 9 Rinsing the tray Rinse out the tray every 2 weeks with warm water. If the air is heavily polluted, the device is used intensively or the water quality is poor, the air purifier must be cleaned at shorter intervals. Before you can pull the tray out for cleaning, you must first pull the water tank out of the air purifier from above.
  • Page 10: Accessories And Replacement Parts

    EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal. 12. Technical specifications Model LR 330 Mains voltage / Output See type plate on the device Dimensions (L x W x H)
  • Page 11: Warranty / Service

    During the warranty period, should this product prove to be incomplete or defective in functionality in accor- dance with the following provisions, Beurer shall carry out a repair or a replacement delivery free of charge, in accordance with these warranty conditions.
