GlammFire Crea7ion Plus Instruction Manual

Fire round
Hide thumbs Also See for Crea7ion Plus:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
Crea7ionEvo Plus Fire Round

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Crea7ion Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GlammFire Crea7ion Plus

Summary of Contents for GlammFire Crea7ion Plus

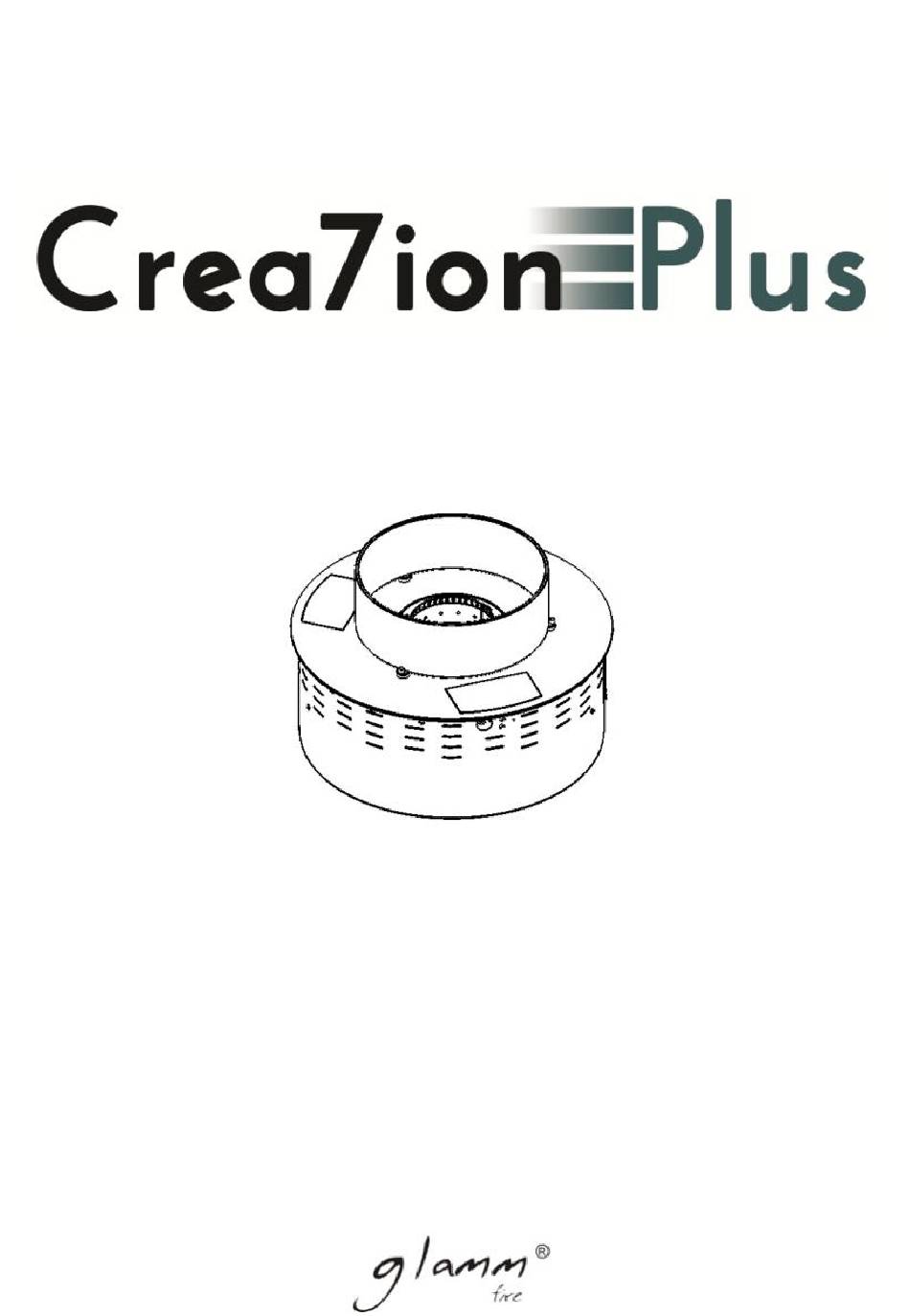

  • Page 1 INSTRUCTION MANUAL Crea7ionEvo Plus Fire Round...
  • Page 2 GlammFire. PAG./2 Thank you for purchasing a GlammFire product. In order to activate your 2-year GlammFire warranty, please register your GlammFire product at www.glammfire.com/pt/sobre/garantia or complete your warranty card and send it to us along with a purchase copy, to our address, within 30 days after the purchase.

  • Page 3: Table Of Contents

    GlammFire. PAG./3 ÍNDICE 1—Material Supplied 2—Components 3—Safety Instructions 3.1—Ventilation 3.2—Cautions 4—Fuel 4.1—Bioetanol – The adequate fuel 5—Installation 5.1—Flammable material 5.2—Materials: stone/metal/ceramics 5.3—Other non-flammable materials 5.4—Dimensions 5.5—Installation Procedures 5.6—Filling system 5.6.1—Local filling system 5.6.2—Displaced filling system (Option) 5.7—Home Automation 6—Operation Instructions 6.1—Functions—Buttons...

  • Page 4: 1-Material Supplied

    Please read this Instruction Manual carefully before using your decorative fireplace. It contains important operating and maintenance instructions, that should be followed correctly, in order to ensure a durable use of your decorative fireplace. All presented cautions and warnings must be respected. Keep this manual for future reference.

  • Page 5: 3-Safety Instructions

    3.2—Cautions: GlammFire is concerned about your safety, therefore we have taken all necessary consideration for conception, fabri- cation, assembly and transport, to ensure perfect functioning. We therefore ask you to thoroughly follow our instructions for assembly, use and maintenance.
  • Page 6 Do not use water to extinguish the fire;  Do not use chemical products to clean the fireplace, as they may damage the materials. When in doubt contact an  authorized dealer; After flame cutting may remain small residual flames at the point of fuel inlet for approximately 2 to 10 minutes. At ...

  • Page 7: 4-Fuel

    4—Fuel 4.1—Bioethanol – The adequate fuel GlammFire fireplaces are designed to work with quality bioethanol liquid with a minimum of 96% suitable for  fireplaces, fully tested. Only this fuel ensures a clean and efficient combustion. Fuel with less or inappropriate quality may lead to: Higher probability of malfunction;...

  • Page 8: 5-Installation

    5—Installation 5.1—Flammable materials Do not place flammable materials near the fireplace, within 1m;  Racks or shelves should be distant 1m from the combustion fire area;  5.2—Materials: stone/metal/ceramics A - 100 mm;  B - 100 mm;  C - 500 mm; ...

  • Page 9: Dimensions

    GlammFire. PAG./9 5.4—Dimensions: The surface which you want to install the combustion fire must be as level as possible;  Necessary dimensions for the built-in hole: Diameter (D) Height (E) Crea7ionEvo Plus Fire Round 480 mm 200mm * Ensure that there is a good ventilation (about 50mm) around Crea7ionEVO Plus Fire Round...
  • Page 10 GlammFire. PAG./10 In case you want to place Crea7ionEvo Plus Fire Round on the top of a surface, in which it will be recessed, use the following measurements: Note: In this case, Crea7ionEvo Plus Fire Round has to seat by its base.

  • Page 11: Installation Procedures

    Insallation Procedures 5.5— Highly Important: It is recommended when unpacking the piece. To unpack, at least 2 people are needed. The Crea7ionEvo Plus Fire Round comes with a metallic handle (Fig. 1), that makes easy its handling when installing. To put in the provided handle, make sure that the burner is completely turned off, the combustion as well the power supplies.
  • Page 12 GlammFire. PAG./12 Turn the handle as illustrated in Figure 3. This way the handle stays tight in the burner, allowing it to be moved and perform its correct installation. Figure 3- Attaching the handle to the burner...
  • Page 13 GlammFire. PAG./13 Then proceed with the placement of the given ring, in the central area of the burning area (Figure 4). This ring should have a regular cleaning maintenance by using the given pencil. Clean the ring and the burning area.
  • Page 14 GlammFire. PAG./14 Ensure that the ring is properly seated. (Figure 5) Figure 5—Placed Ring...
  • Page 15 GlammFire. PAG./15 After installing Crea7ionEvo Plus Fire Round at the desired location, proceed with the installation of the protection glass. The Crea7ionEvo Plus Fire Round has 3 brackets for the glass dedicated (H) to the placement of the provided glass.
  • Page 16 GlammFire. PAG./16 lacement of the glass (Figure 7). Figure 7— Installation of the supplied glass...
  • Page 17 GlammFire. PAG./17 When installing the provided glass assure that this same seats correctly on the 3 dedicated supports. Figure 8— Glass installed...

  • Page 18: Filling System

    GlammFire. PAG./18 5.6—Filling System 5.6.1—Local filling system Attention: Preivously o the first use and when installing the burner, remove the red cover (I) (Figures 9 and 10) This same is duly identifyed with a label that should be removed to.
  • Page 19 GlammFire. PAG./19 If your Crea7ionEVO PLUS has a local filling system, please follow the following steps to install it correctly: Attach the hose provided (Figure 11) in the quick coupler, located next to the tank (figure 12). Place the other end of the hose, with its own filter, in the bioethanol jerry can.
  • Page 20 GlammFire. PAG./20 Filling button Figure 13—Identification filling button...

  • Page 21: 2-Displaced Filling System (Option)

    5.6.2—Displaced filling system If your Crea7ionEVO PLUS Fire Round has a displaced filling system, please follow the following steps to install it cor- rectly: Note: GlammFire recommends the utilization of 20 litres deposit. Material provided: -Technical box with displaced filling pump;...
  • Page 22 GlammFire. PAG./22 Pass the hose and the electronic cable through the hole in the box and connect them in the respective orifices, located near the tank (Figure 15). Figure 15—Hose (ou pipe) and Cable Connection Attach the hose to the available connection in the pump displaced filling system, using the serrated clamp provided (Figure 16).
  • Page 23 GlammFire. PAG./23 Attach the 1,50m hose provided to the filter, using the serrated clamps (Figure 18). Figure 18—Connecting the filter to the hose Attach the hose to the available connection in the pump displaced filling system, using the serrated clamp provided (Figure 19).

  • Page 24: Home Automation

    GlammFire. PAG./24 5.8—Home Automation (Option) The Crea7ionEVO PLUS Fire Round is equipped with a plug intended for the home automation connection (Figure 21), which must be carried out by a qualified technician. This option allows the burner to be switched on or off through the system installed in the room.
  • Page 25 GlammFire. PAG./25 To connect to the home automation system, unscrew the four screws from the technical box and remove the existing protective cover (Figure 22). Figure 22—Box opening to access home automation...
  • Page 26 GlammFire. PAG./26 To connect the electric wires slide easy connection of the burner plug, insert the electric wire and release the connec- tion ( Figure 23). Electric wire insertion holes Figure 23—Identification of connectors Easy connection for electrical wiring...
  • Page 27 The device will only be able to receive the proper pulses to switch it on / off this way. Nota: Note: This functionality must be used with responsibility and supervision. GlammFire is not responsible for incidents inherent to the connection to home automation.

  • Page 28: 6-Operation Instructions

    GlammFire. PAG./28 6—Operation 6.1—Functions—Buttons I - Turn on O - Turn off + - Maximum - - Minimum Battery charging button I - Turn On O - Turn Off ON/OFF General Buttons I - Turn On O - Turn Off...
  • Page 29 GlammFire. PAG./29 The Crea7ion Evo Plus Fire Round has a batery that allows working without any external connections. However, to charge this same it is necessary to use the given charger and plug in one of the available plugs. One lug (J) in the burner’s box (Fig.

  • Page 30: Language Selection

    GlammFire. PAG./30 To turn on the Crea7ionEvo Plus Fire Round, press the ON / OFF-General (L) button to the ON position (figure 27). This way the burner will turn on. Figure 27—ON/OFF—General 6.2—Language Selection Language selection can only be achieved with the “ON/OFF—General” button in the "OFF" position.

  • Page 31: Turn On

    GlammFire. PAG./31 6.4—Turn on After connecting the ON / OFF button to the ON position, the system turns on, appearing immediately the following information on the display: “Start” “Bt □” - battery charge status “Et □” - Bioethanol level Next, click on the "ON" key on the display / remote control for 2 seconds.

  • Page 32: Out Of Fuel

    GlammFire. PAG./32 6.5—Out of fuel When connecting the Crea7ionEVO PLUS, and it does not have bioethanol in the tank, the following information will appear on the display: “Start” “Bt □” - battery charge status “Et □” - Bioethanol level Next, click on the "ON" button on the display / remote control for 2 seconds.

  • Page 33: Turn Off

    GlammFire. PAG./33 6.6—Turn off The Crea7ionEVO PLUS can be turned off at any time. To do it, click on the "OFF" button on the display / remote con- trol. Then, the following information appears on the display: 1. “Ignition Stopped”...

  • Page 34: 7-Security Systems

    GlammFire. PAG./34 7—Security Systems Whenever there is some kind of error, it appears on the display. Simultaneously, the system emits one continuous beep. The error remains on the display until you click on the "OFF" button (on the display) for 2-3 seconds. After clicking the button, the system emits one beep that indicates the elimination of the error.

  • Page 35: Tank Door Locking System

    GlammFire. PAG./35 7.3—Tank door locking system The system does not allow the filling of bioethanol in the tank if it is not at the proper temperature. To do it, you must wait about 5-10 minutes until the system has cooled naturally and unlock the door of the tank zone, after it having been in operation.

  • Page 36: 8-Display Messages

    GlammFire. PAG./36 8—Display messages All error messages that may appear on the display are listed in the table below. INFORMATION CAUSE PROCEDURE DISPLAYED Burner Is The combustion fire zone is at a Wait about 5 – 10 minutes until temperature above the safety the combustion fire zone has value.
  • Page 37 GlammFire. PAG./37 INFORMATION CAUSE PROCEDURE DISPLAYED Tank The bioethanol is below the mini- Filling the tank if you want to turn Empty mum level. the system on again. Otherwise, turn it off using the ON/OFF/ON button, in order to save energy.
  • Page 38 GlammFire. PAG./38 INFORMATION CAUSE PROCEDURE DISPLAYED Time Exc Lack of bioethanol in the combus- Tubing clogged with anomaly. Sens Max tion zone; Fault in the ethanol supply pump. Maximum level probe with anom- Contact a specialist. aly; Ign. Time Exceeded the time of ignition.
  • Page 39 GlammFire. PAG./39 INFORMATION CAUSE PROCEDURE DISPLAYED Error Sens Maximum Short circuit of the low level Ensure that the probe is against probe. the combustion fire zone. Please always contact a qualified technician. Err Sens Maximum Short circuit of the maximum level Ensure that the probe is against probe.
  • Page 40 GlammFire. PAG./40 INFORMATION CAUSE PROCEDURE DISPLAYED High Voltage! Battery or charger with high volt- Check if the battery or charger are age. suitable for the Crea7ionEVO PLUS. Fire Stopped The ignition process has been in- The system returns to standby terrupted by the user.

  • Page 41: 9-Maintenance

    9—Maintenance 1. The combustion fire zone should be cleaned regularly using a damp cloth with bioethanol or Cleaning brush pro- vided; The more persistent marks can be removed using a soft cloth moistened in bioethanol;  Never use chemicals not suitable for cleaning stainless steel; ...

  • Page 42: 11-Specifications

    In case of doubt or any anomaly, do not use the fireplace and please contact a specialized technician. 13– Warranty In order to activate your GlammFire 2 year warranty, please register your new GlammFire product at www.glammfire.com/en/about/warranty complete your warranty card and return it to us, along with a copy of the proof of purchase, at our address within 30 days of purchase.
  • Page 43 Name and Address of the Distributor The GlammFire is always concerned with the environment. This is reflected when the projection of their products and their packaging. Focusing on the reduction of energy consumption, raw materials, natural resources and quantity of waste generated, GlammFire follows the policy of the 4R's (Reduce, Reuse, Recycle and Recover).
  • Page 44 Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com www.glammfire.com PT10324-B...
