GILBARCO VEEDER-ROOT Applause Media System Installation, Service, And Parts Manual page 90

Broadband Router and Network Configuration
The Network Settings screen appears.

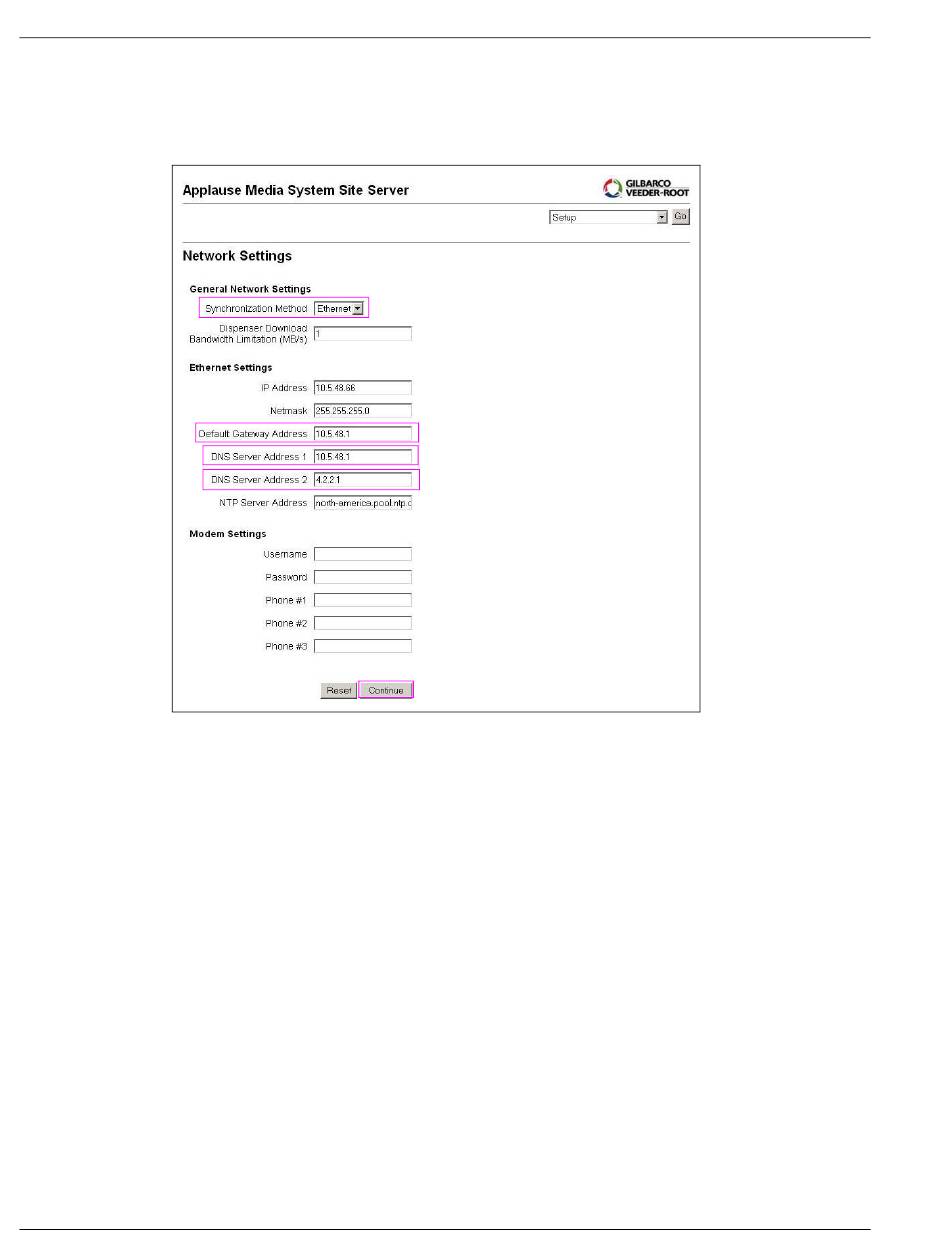

Figure D-6: Network Settings Screen
Note: Ensure that the Synchronization Method field is set to Ethernet.
Set the Default Gateway Address to 10.5.48.1.
3
Set the DNS Server Address 1 to 10.5.48.1 and DNS Server Address 2 to 4.2.2.1.
4
Note: Ensure that the Subnet Mask is set to the default value of 255.255.255.0.
Click Continue.
5
Click Apply New Settings on the next screen after you have reviewed the settings, and
6
rebooted the server.
Note: You will be prompted to reboot the server two times.
In three minutes the web browser shows the Applause Media System options menu if the
Linksys's WAN/Internet port has been connected to a port on the main site router.
Click Synchronize Content Now.
7
In 2-3 minutes, the web browser screen shows the status of the synchronization and updates.
Page D-6 MDE-4699L Applause™ Media System Installation, Service, and Parts Manual · June 2017
Configuring Linksys® Router
