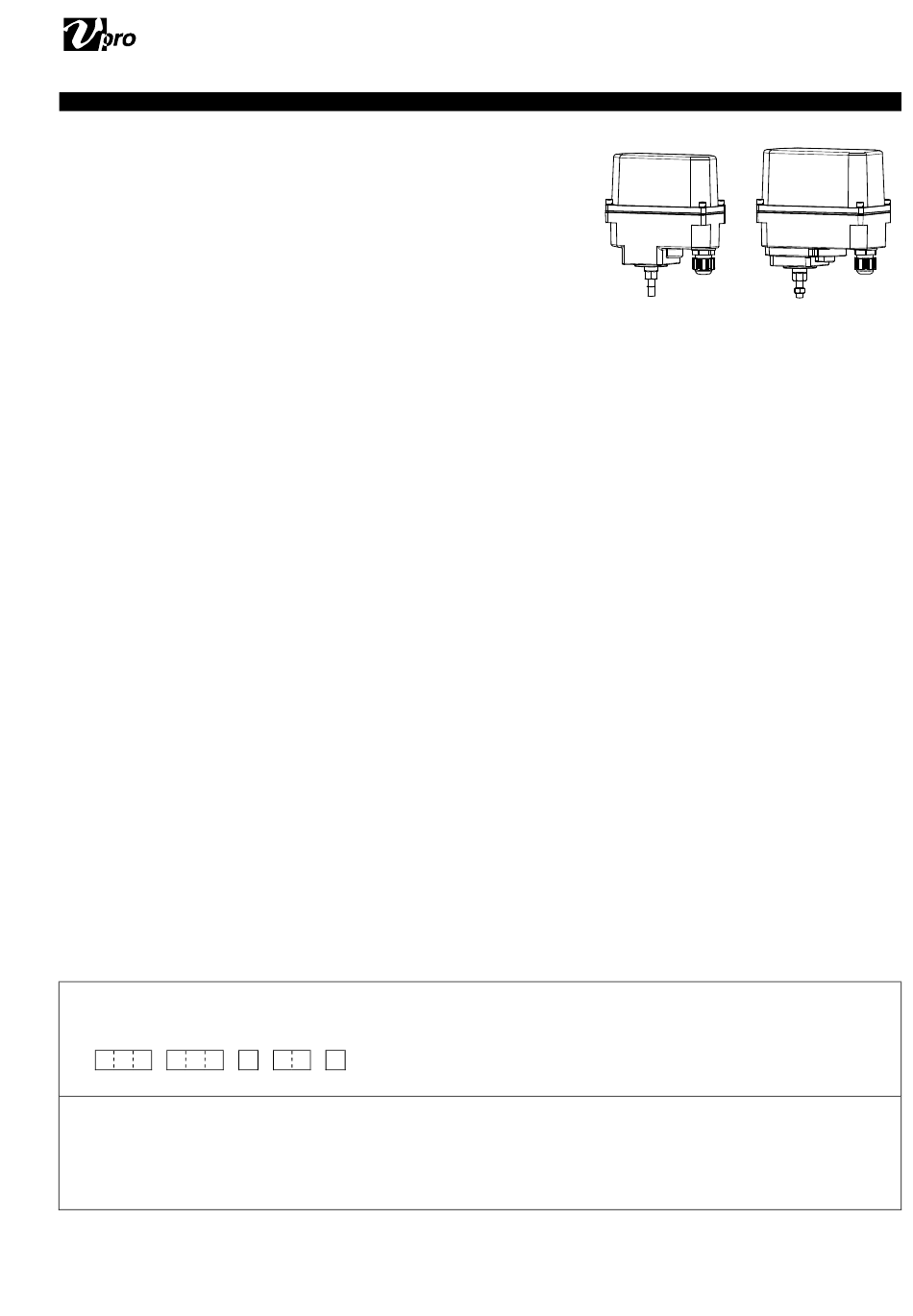

NIPPON VALVE CONTROLS, INC.
Please read this document before using these valves.
GENERAL
Long service life electric actuator built in high reliability and
proportional motor. (linear motion)
PRODUCT CODE
Ex) L A X - 0 3 0 - 1
L A X - 0 7 0 - 1
-
-
(1)
(2)
(1) Actuator
(2) Torque
LAX
030
070
Instruction manual
Electric Actuator LAX
-
-
(3)
(4)
(5)
(3) Voltage
1 : 100 / 110 V
2 : 200 / 220 V
LAX-030
(4) Option
1/5
OSXLA207-EN
LAX-070
(5) Operation mode
Nil : Mode A
J : Mode B
SP-1385
Advertisement
Table of Contents
Related Manuals for VPro LAX Series
Summary of Contents for VPro LAX Series
- Page 1 OSXLA207-EN Instruction manual NIPPON VALVE CONTROLS, INC. Electric Actuator LAX SP-1385 Please read this document before using these valves. GENERAL Long service life electric actuator built in high reliability and proportional motor. (linear motion) LAX-030 LAX-070 PRODUCT CODE Ex) L A X - 0 3 0 - 1 L A X - 0 7 0 - 1 (1) Actuator (2) Torque...
- Page 2 OSXLA207-EN ELECTRIC ACTUATOR SPECIFICATIONS Actuator type ( :Voltage code) LAX-030- LAX-070- Voltage 100 / 110 V AC ±10 % 50/60 Hz (Code: 1) 200 / 220 V AC ±10 % 50/60 Hz (Code: 2) Thrust [N] 300 Operation time [mm/s] 0.39 / 0.47 (50/60 Hz) 0.46 / 0.55 (50/60 Hz) Stroke [mm] 7.5...
- Page 3 OSXLA207-EN ELECTRIC ACTUATOR SPECIFICATIONS DIMENSION LAX-030 LAX-070 Parts name 1 Body 4 Control board 7 Drive shaft 2 Motor cover 5 Terminal block 8 Manual shaft 3 Motor 6 Potentiometer 9 Rubber packing ADJUSTMENT LAX-030 LAX-030 Adjust ZERO / SPAN trimmer Terminal board The trimmer is already setting when the shipped.
- Page 4 OSXLA207-EN INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS HANDLING & STORAGE CONTROL HANDLING • Use shielded wire for signal wiring where high level Proper care in handling the actuator should be taken noise is generated or when the wiring distance is long. to prevent damage.
- Page 5 OSXLA207-EN INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS MANUAL OPERATION TROUBLE SHOOTING PRECAUTIONS Problem Cause Solution • Manual operation should be a temporary operation. Actuator Faulty wiring. Correct the wiring. • Be sure to turn off the power before manual operation. does not NOTE move.
