NIPPON VALVE CONTROLS, INC.
Please read this manual before installation and use.
GENERAL
The actuator operates at the time of power loss by the built-in
high-performance shielded battery.
Built-in battery life is 8 to 9 years at 25 °C.
It's possible to use for a wide range of temperature
(ambient temperature: -20 to +50 °C).
The battery composed by dry type structure the maintenance of
saving water is not necessary.
ABR : For AC / DC power
HBR : For AC / DC power (High speed)
PRODUCT CODE
A B R - 3 0 0 - 1
H B R - 3 0 0 - 1 - Q
-
(1)
(2)
(1) Actuator
ABR
HBR
Instruction manual
Electric Actuator ABR HBR
-
-
(3)
(4)
(2) Torque
(3) Voltage
300
700
02K
06K
1 : 100 / 110 V AC
2 : 200 / 220 V AC
0 : 24 V DC
1/7
OSXAB208-EN
SP-1379

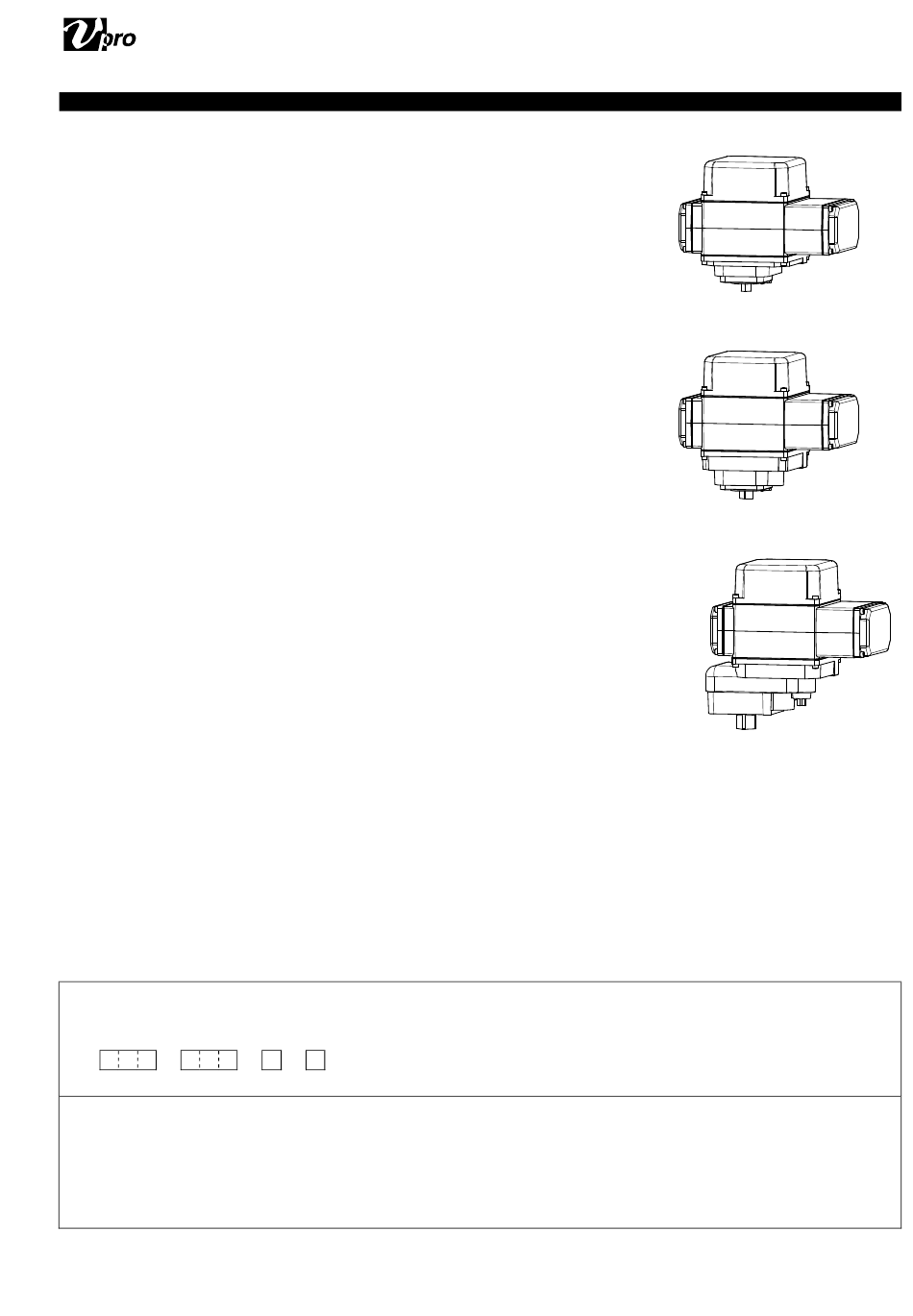

ABR (300 / 700)
HBR (300 / 700)
HBR (02K)
HBR (06K)
(4) Operation mode
Nil : Mode A
Q : Mode B
Advertisement
Table of Contents
Related Manuals for VPro ABR-300 Series
Summary of Contents for VPro ABR-300 Series
- Page 1 OSXAB208-EN Instruction manual NIPPON VALVE CONTROLS, INC. Electric Actuator ABR HBR SP-1379 Please read this manual before installation and use. GENERAL The actuator operates at the time of power loss by the built-in high-performance shielded battery. Built-in battery life is 8 to 9 years at 25 °C. It’s possible to use for a wide range of temperature (ambient temperature: -20 to +50 °C).
- Page 2 OSXAB208-EN ELECTRIC ACTUATOR SPECIFICATIONS 3 way valve: SHUT / Position , OPEN / Position Actuator type ABR-300- ABR-700- HBR-300- HBR-700- HBR-02K- HBR-06K- ( : Voltage code) Voltage 100 / 110 V AC ±10 % 50/60 Hz (Code: 1) 200 / 220 V AC ±10 % 50/60 Hz (Code: 2) Note) Cannot use a half or...
- Page 3 OSXAB208-EN ELECTRIC ACTUATOR SPECIFICATIONS 3 way valve: SHUT / Position , OPEN / Position WIRING Voltage 100/110V AC 200/220V AC 24V DC Battery com. SHUT signal S. LS Output of signal (Common in mode A / B) OPEN signal Closed the valve SHUT signal Open the valve OPEN signal...
- Page 4 OSXAB208-EN ELECTRIC ACTUATOR SPECIFICATIONS DIMENSIONS ABR / HBR Actuator 2-G1/2 ABR HBR 300 300 700 700 4-M10 Depth 14 16 15 P.C.D. 80 HBR (06K) 15.5 2-G1/2 4-M12 Depth 18 16 15 14 P.C.D. 125 Parts name 1 Body 7 Terminal block 13 Cable gland 19 Battery fix screw 2 Body cover lower part screw...
- Page 5 OSXAB208-EN INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS HANDLING & STORAGE INSTALLATION HANDLING ENVIRONMENT Proper care in handling the actuator should be taken • Do not install in place where corrosive gas is present to prevent damage. Do not drop or throw it. or where vibration is heavy (0.5 G or more).
- Page 6 OSXAB208-EN INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS CONTROL BATTERY CONTROL OF SWITCHING HANDLING When using control switch with current leakage • The battery can be expected a service life over 8 to 9 (more than 0.1 mA) such as TRIAC or relay with CR, years at 25 °C.
- Page 7 OSXAB208-EN INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS MANUAL OPERATION TROUBLE SHOOTING PRECAUTIONS Problem Cause Solution • Remove the battery connector before manual Actuator Faulty wiring. Correct the wiring. operation for safety. (Refer the battery replacement) does not • Manual operation should be a temporary operation. move.
