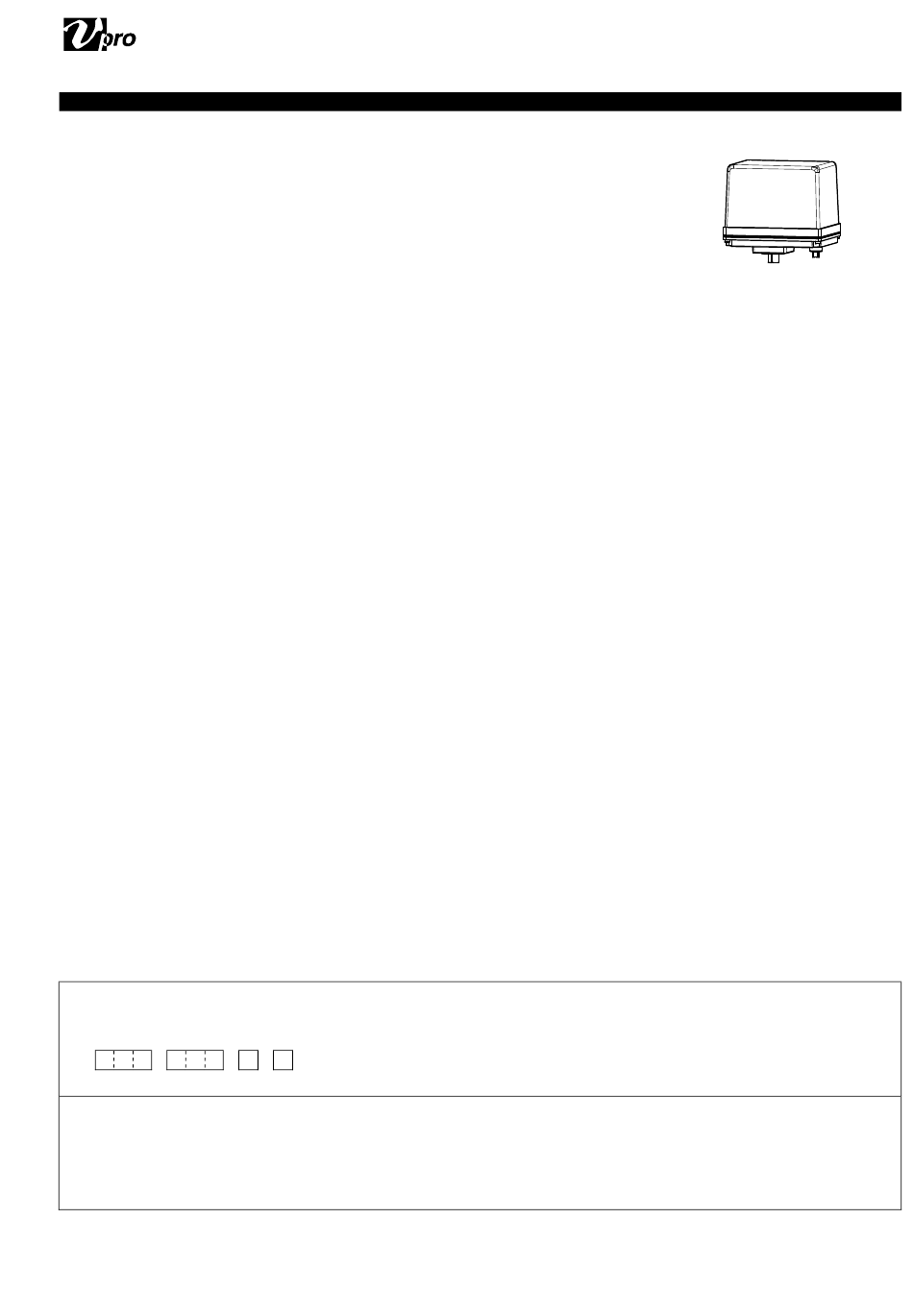

VPro ECR Instruction Manual

NIPPON VALVE CONTROLS, INC.
Please read this manual before installation and use.

GENERAL

Excellent performance actuator for electric shut-off valves equipped with
connector for damper shaft and bracket.
It has a new structure with ultra high capacity electric double layer capacitor.
In case of power failure, capacitor discharges electricity and operates valve.
This series can handle high frequency (over 200,000 times) operation.
When motor is not in motion, consumed electric power is less than 3W,
and it is energy-saving design.

PRODUCT CODE

Ex) E C R - 1 2 0 - 1
E C R - 3 6 0 - 1 - Q
- -
(1) (2)
(1) Actuator (2) Torque
ECR 120
360
Instruction manual
Electric Actuator ECR
-
(3) (4)
(3) Voltage
1 : 100 / 110V AC
2 : 200 / 220V AC
(4) Operation mode
Nil : Mode A
Q : Mode B
1/5
OSXEC206-EN
SP-1385
ECR-120 / 360
