Summary of Contents for UGT Tensio 140

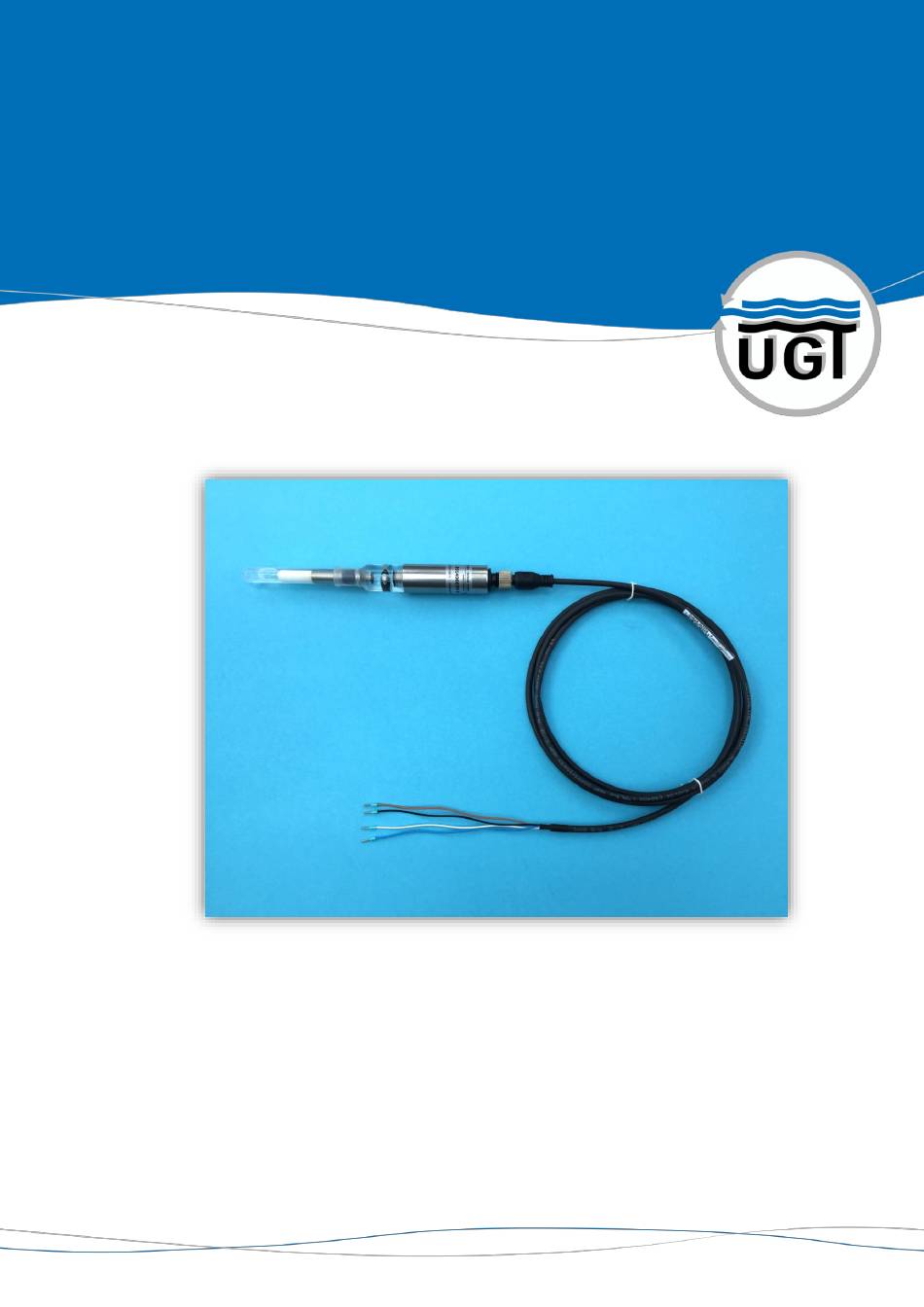

- Page 1 Operating Manual Tensio 140 Version: 18/06/19 Laboratory Tensiometer Umwelt-Geräte-Technik GmbH Eberswalder Str. 58 | D-15374 Müncheberg phone: +49 (0) 33 43 2 - 89 575 | fax: +49 (0) 33 43 2 - 89 573 e-Mail: info@ugt-online.de | www.ugt-online.de...
-
Page 2: Table Of Contents
5. Maintenance and Repair ......................... 12 6. Caretaking ............................12 6.1. General Care and Storage Instructions.................. 12 Umwelt-Geräte-Technik GmbH | Eberswalder Str. 58 | D-15374 Müncheberg | phone: +49 (0) 33 43 2 - 89 575 | www.ugt-online.de Page 2 of 12... -
Page 3: Introduction
Air bubbles are easy to recognize and eliminate through the acrylic head with vent screw. The tensiometers can be installed in any position. They are ideally suited to determine the soil moisture tension in experimental setups in the laboratory. The Tensio 140 is characterized by its long and robust shaft. -
Page 4: Safety Instructions
Do not touch the ceramic with bare hands. chemical influences Use only pure water and no detergent for cleaning. Umwelt-Geräte-Technik GmbH | Eberswalder Str. 58 | D-15374 Müncheberg | phone: +49 (0) 33 43 2 - 89 575 | www.ugt-online.de Page 4 of 12... -
Page 5: General Information
Exemplary retention curves of different soil types Umwelt-Geräte-Technik GmbH | Eberswalder Str. 58 | D-15374 Müncheberg | phone: +49 (0) 33 43 2 - 89 575 | www.ugt-online.de Page 5 of 12... -
Page 6: What Are Tensiometers Used For
Water Soil Particle Porous Cup Water Schematic representation of the functional principle of a tensiometer Umwelt-Geräte-Technik GmbH | Eberswalder Str. 58 | D-15374 Müncheberg | phone: +49 (0) 33 43 2 - 89 575 | www.ugt-online.de Page 6 of 12... -
Page 7: Under Which Conditions Can A Tensiometer Be Used
Tensiometer of UGT GmbH, are not bound to these limits and cannot fall dry due to innovative operating principles. The ceramics of the UGT tensiometers have by default an air entry point of at least 85 kPa. This value slightly varies for every ceramic and depends next to the maximum pore size also on the state of the ceramic and on substances dissolved in the water. - Page 8 Umwelt-Geräte-Technik GmbH | Eberswalder Str. 58 | D-15374 Müncheberg | phone: +49 (0) 33 43 2 - 89 575 | www.ugt-online.de Page 8 of 12...
-
Page 9: Set Up And Technical Parameters
Temperature coefficient < 0,08% FSO/°C Cable length Size of ceramic cup P80 25mm x 6,5mm ´ Umwelt-Geräte-Technik GmbH | Eberswalder Str. 58 | D-15374 Müncheberg | phone: +49 (0) 33 43 2 - 89 575 | www.ugt-online.de Page 9 of 12... -
Page 10: Pin Assignment
+Vs 9… 30VDC white Signal output 0… 1VDC blue Case, shield black -Vs, AGND Umwelt-Geräte-Technik GmbH | Eberswalder Str. 58 | D-15374 Müncheberg | phone: +49 (0) 33 43 2 - 89 575 | www.ugt-online.de Page 10 of 12... -
Page 11: Commissioning
While preferential vertical flow paths and hence potential failures in the measurement are to be expected for variant b), and can be almost excluded for variant a) and c). Umwelt-Geräte-Technik GmbH | Eberswalder Str. 58 | D-15374 Müncheberg | phone: +49 (0) 33 43 2 - 89 575 | www.ugt-online.de Page 11 of 12... -
Page 12: Pressure Readings
4.3. Pressure Readings The Tensio 140 provides an analog output signal between 0 and 1 V. To transform the output signal into a pressure value the signal range (0 – 1 V) has to be transferred linearly to measurement range of the pressure transducer (+0.3 bar to –...
