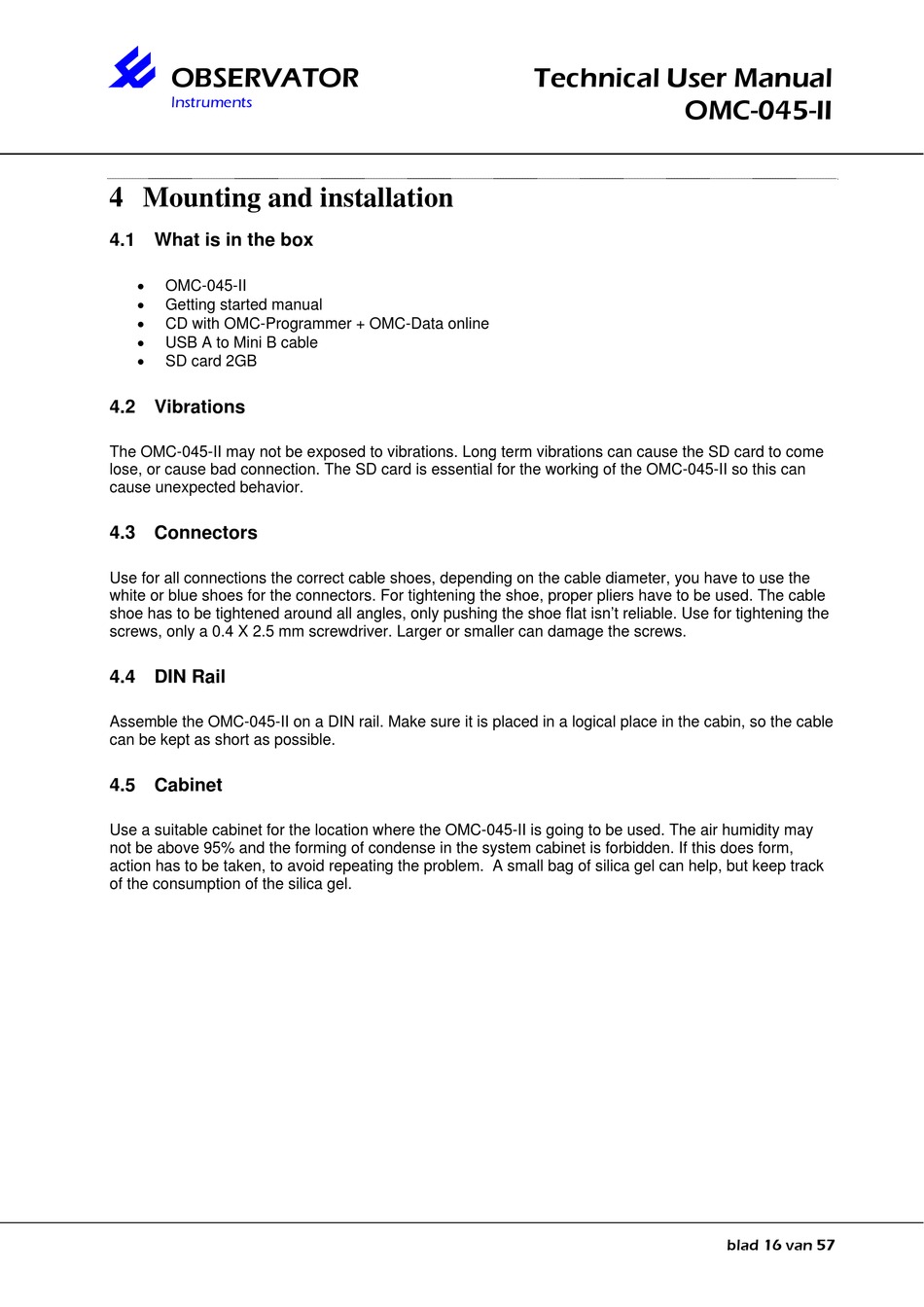

4 Mounting and installation

4.1 What is in the box


OMC-045-II

Getting started manual

CD with OMC-Programmer + OMC-Data online

USB A to Mini B cable

SD card 2GB

4.2 Vibrations

The OMC-045-II may not be exposed to vibrations. Long term vibrations can cause the SD card to come
lose, or cause bad connection. The SD card is essential for the working of the OMC-045-II so this can
cause unexpected behavior.

4.3 Connectors

Use for all connections the correct cable shoes, depending on the cable diameter, you have to use the
white or blue shoes for the connectors. For tightening the shoe, proper pliers have to be used. The cable
shoe has to be tightened around all angles, only pushing the shoe flat isn't reliable. Use for tightening the
screws, only a 0.4 X 2.5 mm screwdriver. Larger or smaller can damage the screws.

4.4 DIN Rail

Assemble the OMC-045-II on a DIN rail. Make sure it is placed in a logical place in the cabin, so the cable
can be kept as short as possible.

4.5 Cabinet

Use a suitable cabinet for the location where the OMC-045-II is going to be used. The air humidity may
not be above 95% and the forming of condense in the system cabinet is forbidden. If this does form,
action has to be taken, to avoid repeating the problem. A small bag of silica gel can help, but keep track
of the consumption of the silica gel.
