Panasonic WV-QAT502-W Operating Instructions

Operating Instructions
Included Installation Instructions

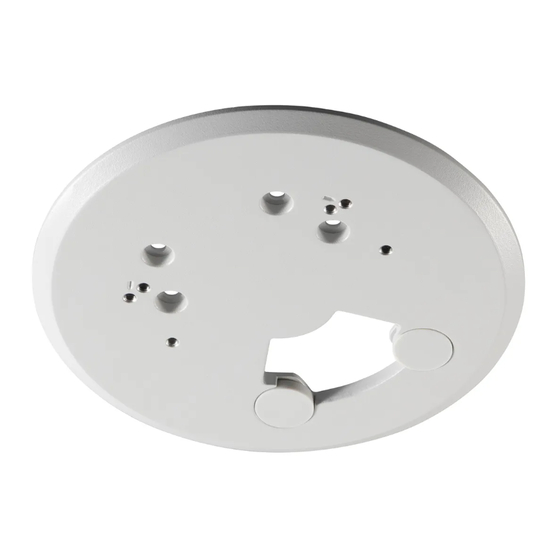

Gangbox Adapter
WV-QAT502-W
WV-QAT502-G
Model No.
⿟ Before attempting to connect or install this product, please read these instructions carefully
and save this manual for future use.
⿟ Be sure to read "Precautions" in this document before use.
⿟ The external appearance and other parts shown in this manual may differ from the actual
product within the scope that will not interfere with normal use due to improvement of the
product.
Panasonic i-PRO Sensing Solutions Co., Ltd. assumes no responsibility for injuries or
property damage resulting from failures arising out of improper installation or
operation inconsistent with this documentation.
For U.S. and Canada:
Panasonic i-PRO Sensing Solutions
Corporation of America
800 Gessner Rd, Suite 700 Houston, TX 77024
https://www.security.us.panasonic.com/
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada
1-877-495-0580
https://www.panasonic.com/ca/
© Panasonic i-PRO Sensing Solutions Co., Ltd. 2021
Preface
This product is used when installing a compact dome type camera using a Gangbox/Junction
box.
For the latest information about the supported cameras, refer to our support website
(https://security.panasonic.com/training_support/support/info/<Control No.:C0501>).
Specifications
Ambient operating temperature: –50 °C to +60 °C {–58 °F to +140 °F}
Dimensions: ø162 mm × 6.2 mm (H)
{ø6-3/8 inches × 1/4 inches (H)}
Approx. 144 g {0.32 lbs}
Mass:
Finish: Aluminum die cast
Precautions
 Refer installation work to the dealer.
Installation work requires technique and experience. Failure to observe this may cause fire,
electric shock, injury, or damage to the product.
Be sure to consult the dealer.
 I nstall the product securely on a Gangbox/Junction box in accordance with the
installation instructions.
Failure to observe this may cause injury or accidents.
 Do not use this product except with suitable cameras.
Failure to observe this may cause a drop resulting in injury or accidents.
 Do not install this product on a place that is greatly influenced by wind.
Installation on a place where the wind speed is 60 m/s {approx. 134 mph} or more may cause a
fall of the product resulting in injury or accidents.
 The screws and bolts must be tightened to the specified torque.
Failure to observe this may cause a drop resulting in injury or accidents.
When using this product, also read the "Precautions" described in the operating
instructions for the camera to be attached.
For Europe and other countries:
Panasonic Corporation
http://www.panasonic.com
Panasonic i-PRO Sensing Solutions Co., Ltd.
Fukuoka, Japan
Authorised Representative in EU:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Fs0321-0
Printed in China
WV-QAT502-W : i-PRO white
WV-QAT502-G : Light gray
Caution:
⿟ Before attempting to connect or operate this product, please read these instructions
carefully.
Notice:
⿟ This product is not suitable for use in locations where children are likely to be present.
⿟ Do not install this product in locations where ordinary persons can easily reach.
⿟ For information about screws and other parts required for installation, refer to the
corresponding section of this document.
Standard accessories
Operating Instructions (this document).... 1 pc.
Camera fixing screws. . ............................. 2 pcs.
(M4 × 8 mm {5/16 inches})
Precautions for installation
 I n order to prevent injury, the product must be securely mounted to a Gangbox/
Junction box according to installation guide.
 Make sure to remove this product if it will no longer be used.
Note:
⿟ When installing outside, installation work shall be such that there is no exposure to water
into the architecture through the Gangbox/Junction box or conduits having been joined.
<Installation example>
<WV-U25xxL series> <WV-S35xxL series>
<WV-U21xxL series>
Installation
Compatible Gangbox/Junction box
Step 1
46 mm {1-13/16 inches}
<Double-Gangbox/Junction box>
63 mm {2-15/32 inches}
<Octagon-Gangbox/Junction box>
Screw caps. . .............................................. 2 pcs.
Fixing screws............................................ 5 pcs.
(M4 × 8 mm {5/16 inches}) (of them, 1 for spare)
<WV-S31xxL series>
83.5 mm
{3-9/32 inches}
63 mm
{2-15/32 inches}
