INSTALLATION INSTRUCTIONS
Transportation and handling before installation
Transport the product as close to the installation location as practical before unpacking.
• Handling Method
When handling the unit, ensure a balance of the unit, check
safety and lift it up smoothly.
1 Do not remove any packing materials.

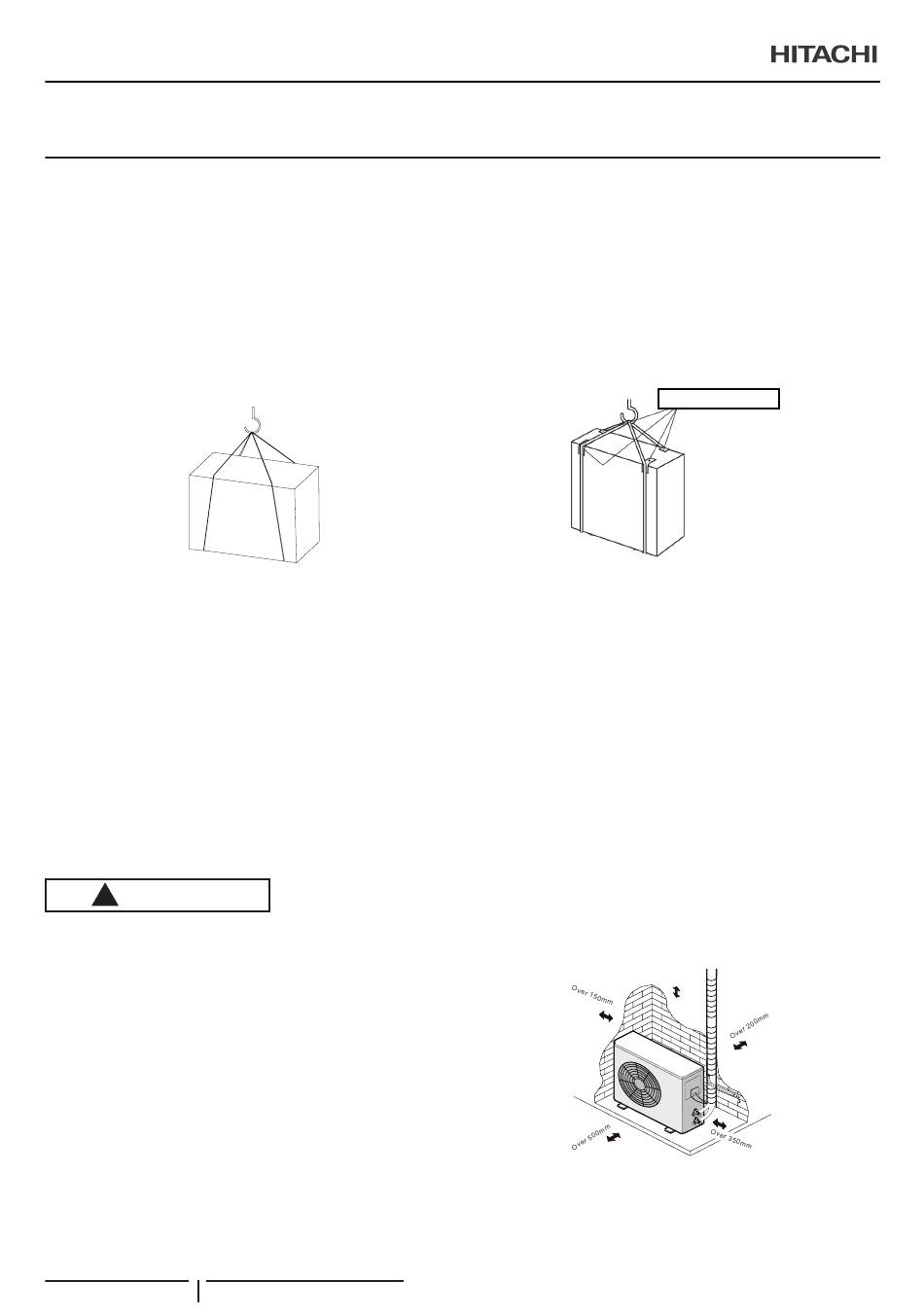

2 Hang the unit under packing condition with two ropes, as
shown in figure below.
Installation locations selection
Before choosing the installation site, obtain user's approval.
• Where it is not exposed to strong wind.
• Where airflow is good and clean.
• Where it is not exposed to rain and direct sunshine.
• Where neighbours are not annoyed by operation sound or hot air.
• Where rigid wall or support is available to prevent the increase of operation sound or vibration.
• Where there is no risk of combustible gas leakage.
• Where it is at least 3m away from the antenna of TV set or radio. An amplifier may be required for the affected device.
• Install the unit horizontally.
• Please install it in an area not affected by snowfall or blowing snow. In areas with heavy snow, please install a canopy, a pedestal
and/or some baffle boards.
!
CAUTION
Avoid the following places for installation where air conditioner
trouble is liable to occur.
• Where there is much machine oil.
• Salty places such as seaside.
• Where sulfide gas is generated such as a hot spring.
• Where there is high-frequency or wireless equipment.
NOTE:
When operating the air conditioner in low outside temperature, be sure to follow the instruction described below:
• Never install the outdoor unit in a place where its air inlet/outlet side may be exposed directly to wind.
• To prevent exposure to wind, install the outdoor unit with its air inlet side facing the wall.
• To prevent exposure to wind, it is recommended to install a baffle board on the air outlet side of the outdoor unit.
10
HO2019292HA
Installation instructions
• Handling
If the product has no package to move, please protect with
cloth or paper.
Over 300mm (3.0/3.5/4.0HP)
Over 600mm (5.0/6.0/6.5HP)
Put cloth or paper
