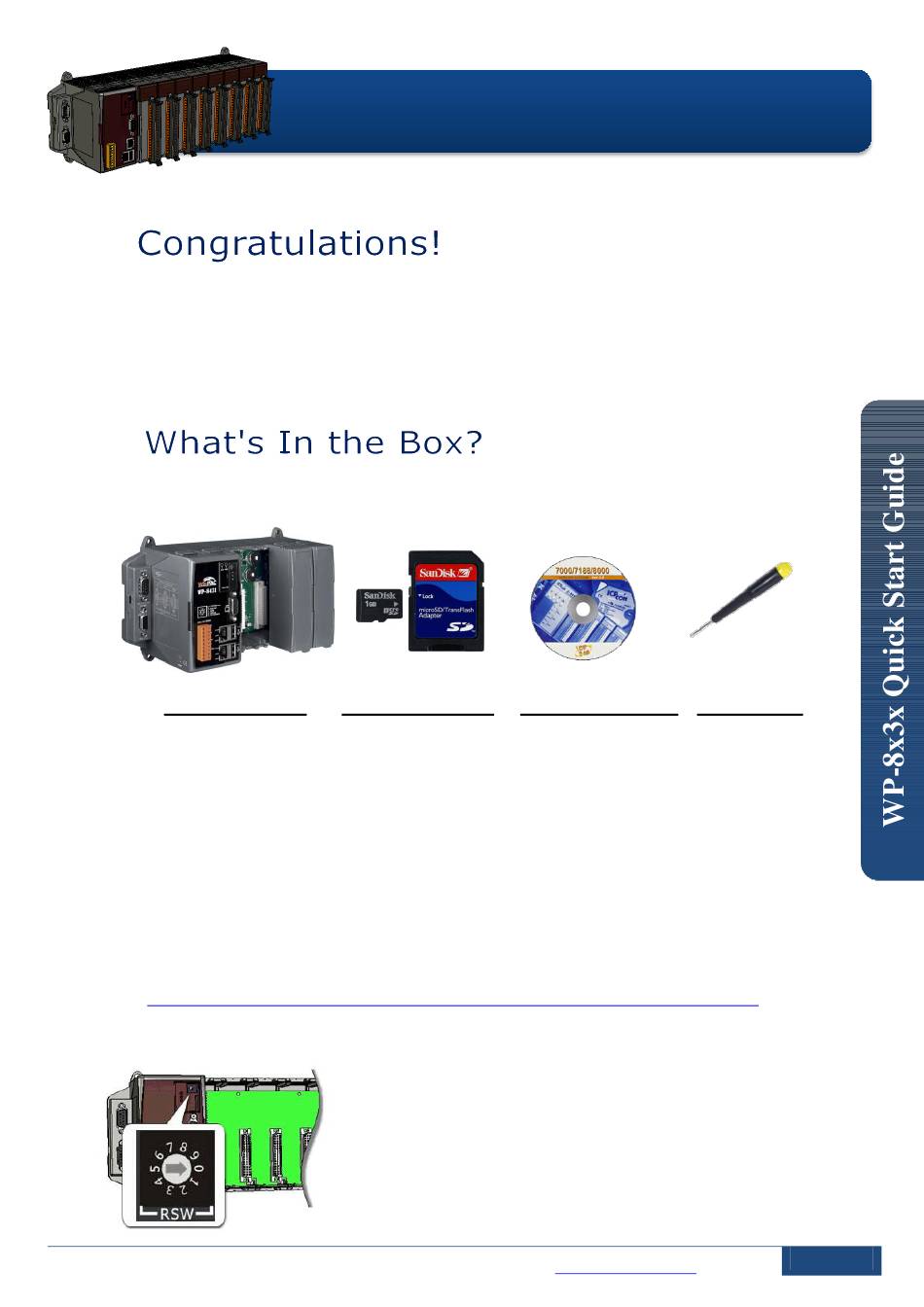

Congratulations on purchasing Win PAC-8000 - the most popular automation solution
for remote monitoring and control application. This Quick Start Guide will provide
information needed to get started with WinPAC. Please also consult the User Manual
for detailed information on the setup and use of Win PAC.
In addition to this guide, the package includes the following items:

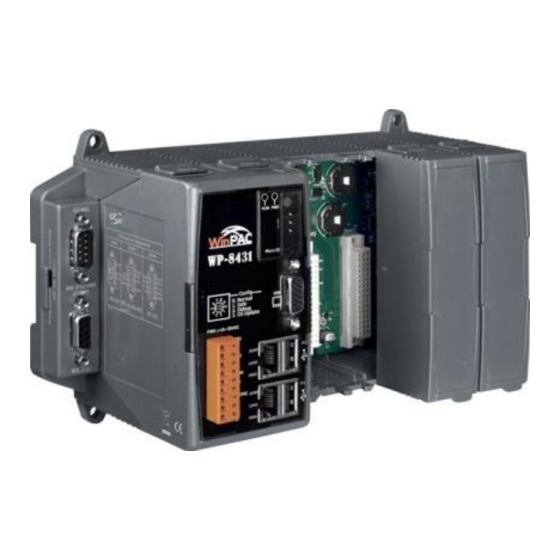

Win PAC Module
WP-8131: 1 slot
WP-8431: 4 slots
WP-8831: 8 slots
--------------------------------------------------------------------------------
1
Preparing for Start-up the WinPAC-8000
Power Supply: +10V ~ +30V/DC (Ex: DP-665):
http://www.icpdas.com/products/Accessories/power_supply/power_list.htm
Copyright © 2009 ICP DAS Co., Ltd. All Rights Reserved.
WP-8x3x Quick Start Guide
2GB microSD card
---------------------------------------------
2
Configuring the boot mode
Make sure the rotary switch placed in
the "0" position.
Version 1.0.2, December 2009
Software Utility CD Screw Driver
E-mail:
service@icpdas.com
(1C016)
2.4 mm
- 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA WP-83 Series
Summary of Contents for ICP DAS USA WP-83 Series
- Page 1 • WP-8x3x Quick Start Guide Version 1.0.2, December 2009 Congratulations on purchasing Win PAC-8000 - the most popular automation solution for remote monitoring and control application. This Quick Start Guide will provide information needed to get started with WinPAC. Please also consult the User Manual for detailed information on the setup and use of Win PAC.
- Page 2 -------------------------------------------------------------------------------- Setting up the power supply and other I/O devices The diagram below shows the connections of WP-8131. The diagram below shows the connections of WP-8431/WP-8831. Copyright © 2009 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com...
- Page 3 -------------------------------------------------------------------------------- Start the WinPAC Utility to manage the Win PAC The WinPAC Utility is a toolkit used to quickly control and manage the Win PAC. Step 1: Run the WinPAC Utility located on desktop Step 2: Configure IP(DHCP), FTP Server, Auto Execution…, etc Step 3: Save and Reboot --------------------------------------------------------------------------------...
- Page 4 Step 2: Run the DCON Utility on the host PC The DCON Utility can be obtained from: CD:\Napdos\wp-8x3x_ce50\PC_Tools\DCON_Utility\ http://ftp.icpdas.com/pub/cd/winpac/napdos/wp-8x3x_ce50/pc_tools/dcon_utility/ Step 3: Click the WIN CE button Step 4: On the WINCE device connection, enter the IP address of the Win PAC to search the I-87K series expansion I/O modules Step 5: It will display a list of I-87K series expansion...
