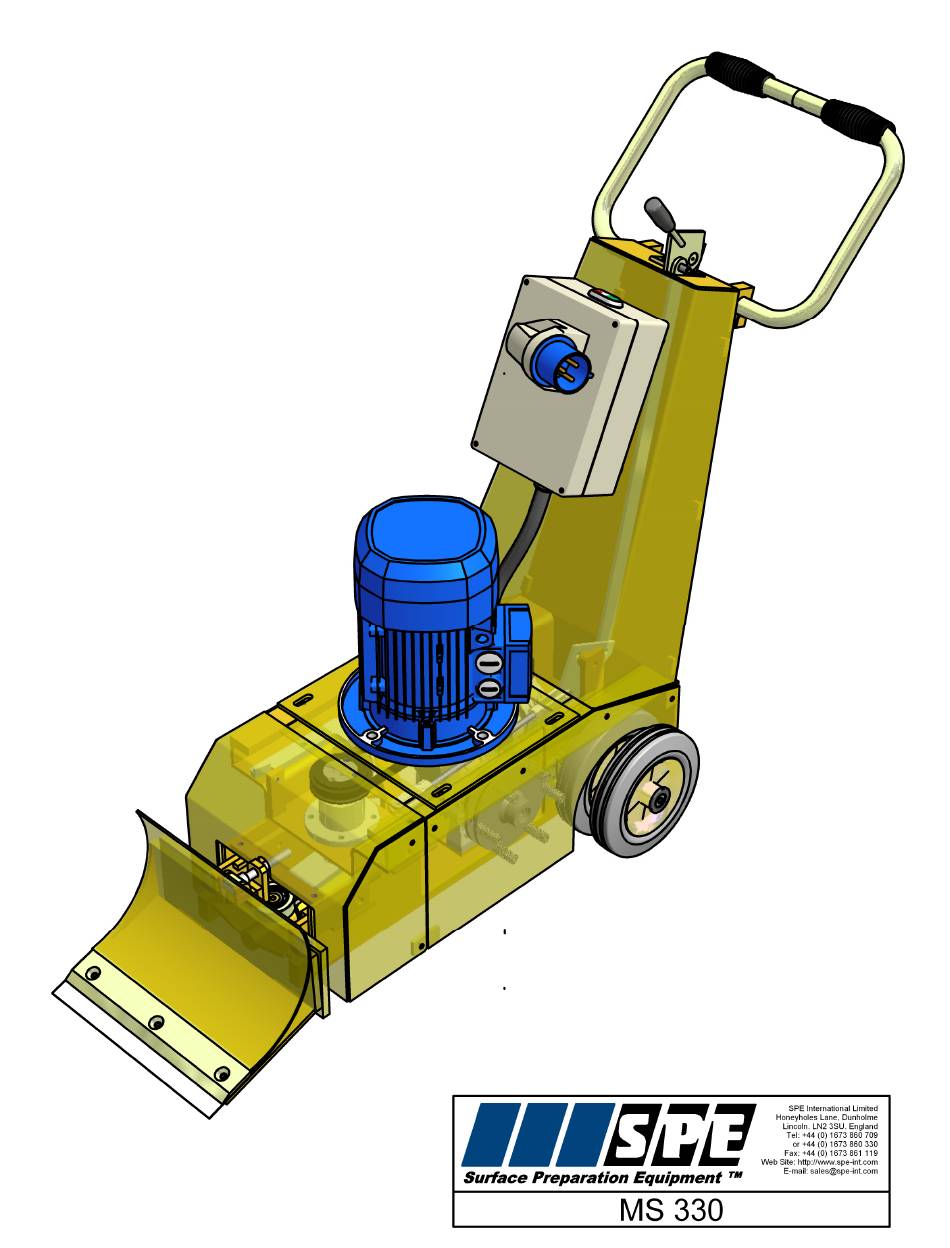

- Page 2 MS330-2 MULTISTRIPPER Operating Manual This manual is provided to persons purchasing an SPE machine and may not be reproduced in part or full without written permission of SPE International Ltd. This manual provides the basic information required and is only to be used as a guideline.
- Page 3 WARNING Failure to follow these instructions may result in serious personal injury or death. SPE disclaims all responsibility for damage to persons or objects arising as a consequence of incorrect handling of the machine and failure to inspect the machine for damage or other faults that may influence the operation prior to starting work.
- Page 4 MS330-2 MULTISRIPPER Operating Manual INDEX Starting work Operating Instructions Maintenance Safety Spare Parts Breakdown Body Components Blade & Motion Components Drive Components Power Components Wiring Diagram Electrical Components Specification Sheet Electrical Requirements Noise and Vibration Assessment Warranty Declaration of Conformity...
-
Page 5: Starting Work
MS330-2 MULTISRIPPER Operating Manual STARTING WORK - Check the condition of the cutter blade assembly - Check all nuts and bolts for tightness - Check the drive belt for condition and tension - Check the plugs and cables for damage Before starting the machine ensure that the blade is clear of any obstructions Adjust the handlebar to a comfortable height and position. -
Page 6: Maintenance
MS330-2 MULTISRIPPER Operating Manual MAINTENANCE Prior to any maintenance or adjustment, isolate the power supply. AFTER USE: Clean the machine to remove all the build up of dust and surface residue. If using hosepipe or pressure water take care that water is not directed onto electrical components and switches. - Page 7 Executive. Noise and vibration will occur at various levels dependent on the attachments and work being completed, SPE have assessments conducted under test conditions detailed in the operating manual (see page 12). However it is recommended that additional tests are taken on site to provide the operator with accurate information on using the equipment within the guidelines laid down by the Health &...
- Page 8 MS330-2 MULTISRIPPER Operating Manual...
-
Page 9: Electrical Components
MS330-2 MULTISRIPPER Operating Manual ELECTRICAL COMPONENTS DESCRIPTION SPE PART NO Panel Box SP2518-11 Hinge Kit SP190005 Back Plate 9249 On/Off Switch SPLM2B7223 Contactor SPBF181023 Trip SP60HD216 Overload SPRF3814 On/Off Contact SPLM2TC01 On/Off Contact SPLM2TC10 Contact Holder SPLM2AU120 Conduit Gland 9258... -
Page 10: Specification Sheet
MS330-2 MULTISRIPPER Operating Manual SPECIFICATION SHEET Type MS330 Electric Part Number MS330-2 3.0hp Power Output Voltage Cycles 50hz Machine Dimensions (mm) Length 1100 Width 1000 Height Weight (kg) Working width (mm) 2800 Motor (rpm) ELECTRICAL REQUIREMENTS Max Cable Machine Volts Plug Size Cable Size... - Page 11 MS330-2 MULTISRIPPER Operating Manual RECORD OF NOISE AND VIBRATION ASSESSMENT Manufacturer: Type: Tile Lifter Model No. MS330-2 Electric Operation : Removing vinyl tiles Running Conditions: 1410 rpm HAV Note: Operc HAND-ARM VIBRATION Frequency Weighted Energy Equivalent Accelerations (a Measurement Position...
-
Page 12: Warranty
Conditions of Sale (copy attached). Warranty start date: As despatch date Model: MS330-2 Serial no: Customer name: Customer Address: Manufacturer: SPE International Ltd Honeyholes Lane Dunholme Lincoln LN2 3SU England Telephone: +44 (0) 1673 860709 Fax:... -
Page 13: Declaration Of Conformity
Directive 2006/42/EC............Brian Jacklin – Technical Manager SPE INTERNATIONAL LTD SPE International Ltd, Honeyholes Lane, Dunholme, Lincoln. LNS 3SU England Tel: +44 (0) 1673 860709 Fax: +44 (0) 1673 861119 Web: www.spe-int.com e-mail: sales@spe-int.com... - Page 14 MULTISRIPPER CONDITIONS OF SALE Operating Manual The quotation overleaf and any order placed following such quotation are subject to the following conditions of sale in which SPE International Limited is referred to as the “Company”. Validity of quotation No order received from a customer by the Company shall constitute a contract until accepted in writing by the Company.
