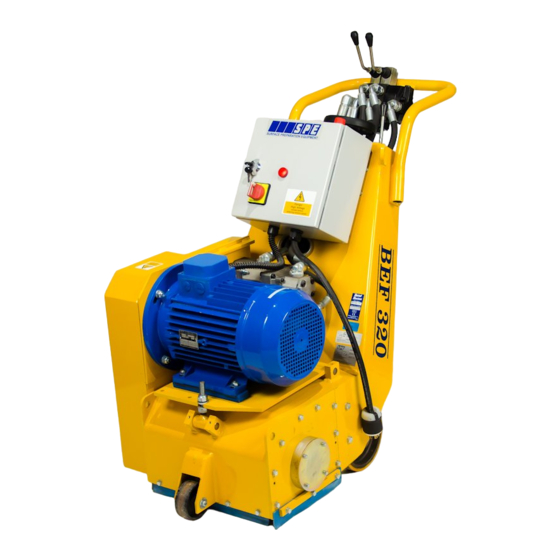

BEF320-1A
Operating Manual
This manual is provided to persons purchasing an
SPE machine and may not be reproduced in part or full
without written permission of
SPE International Ltd.
This manual provides the basic information required
and is only to be used as a guideline.
The SPE machines are manufactured and covered by
SPE design registrations granted and pending.
SPE International Ltd reserves the right to alter the
equipment design and specification as required
without notice.
The SPE product range is subject to amendment and
improvement as a result of on going research
Honeyholes Lane, Dunholme, Lincoln LN2 3SU, England
Tel: +44 (0) 1673 860709 Fax: +44 (0) 1673 861119
Email:
sales@spe-int.com
BEF320-1A
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEF320-1A and is the answer not in the manual?

Questions and answers

Related Manuals for SPE BEF320-1A

Summary of Contents for SPE BEF320-1A

  • Page 1 Operating Manual BEF320-1A Operating Manual This manual is provided to persons purchasing an SPE machine and may not be reproduced in part or full without written permission of SPE International Ltd. This manual provides the basic information required and is only to be used as a guideline.
  • Page 2 WARNING Failure to follow this instruction may result in serious personal injury or death. SPE disclaims all responsibility for damage to persons or objects arising as a consequence of incorrect handling of the machine, failure to inspect the machine for damage or other faults that may influence the operation prior to starting work, or failure to follow the safety regulations listed or applicable to the job site.
  • Page 3 BEF320-1A Operating Manual INDEX Page No Starting Work General Operation Dust Control Phase Reversing Maintenance Basic Maintenance Checklist Safety Accessories 10-12 Cutter Drum Set Up Spare Parts Breakdown Body Components Undercarriage Components Height Adjuster Components Drum Drive Components Hydraulic Tank Components...

  • Page 4: Starting Work

    - Check electrical cables/plugs - Check RCD protection is fitted and working 1. Ensure power supply is correct. BEF320-1A requires a 380/415v 32amp supply from the mains or generated by a minimum of 25kva on 50 cycles. 2. After connecting the machine to the power supply turn the red isolator (on the front of electric panel) to the on position.

  • Page 5: General Operation

    BEF320-1A Operating Manual GENERAL OPERATION It is essential that the cutters are not lowered too far and too hard onto the surface as serious damage could be caused to the machine and cutter drum assembly. THE cutters must be allowed to "float" on the cutter shafts without excessive downward pressure.

  • Page 6: Dust Control

    To control any dust created by the operation connect an industrial dust collector or vacuum to the 50mm port at the rear of the machine. We recommend the SPE 316 for almost 100% dust control. In the absence of a dust control unit it is acceptable to spray water onto the surface or to feed water down the vacuum port.

  • Page 7: Maintenance

    BEF320-1A Operating Manual MAINTENANCE PRIOR TO ANY MAINTENANCE OR ADJUSTMENT ISOLATE POWER SUPPLY AND STOP EQUIPMENT After use: Clean the machine to remove all build up of dust and surface residues. If using a hose pipe or pressure washer take care that water is not directed onto electrical components and switches.
  • Page 8 BEF320-1A Operating Manual Height Adjustment Maintenance: Ensure the height screw thread is cleaned and then lightly oiled. Periodically it should be removed and the female threaded section cleaned out and oiled. At the same time the self- aligning bearing should be greased.
  • Page 9 BEF320-1A Operating Manual BASIC MAINTENANCE/CHECKLIST DAILY: (or every 8hrs to 10hrs) Check cutters Check flail shafts Check all bolts and nuts for tightness Check belt tension Check plugs/cables Check hydraulic oil level. Clean any debris from drum enclosure and ensure drum turns freely.
  • Page 10 Note: It is possible that the noise level produced by the BEF320 could exceed 90dbA. Personal noise protection must be worn. To control dust it is recommended that an SPE dust control unit/vacuum is fitted. Never leave the BEF320 unattended while in use. Always stop the motor and raise the height adjustment fully up before leaving the machine.
  • Page 11 BEF320-1A Operating Manual ACCESSORIES Part number Description Application Hardened steel cutter with tungsten inserts, for all concrete texturing, scabbling, planing and grooving applications. Removal of bridge Heavy duty drum complete with deck and car park membranes, 32001 T.C.T. cutters and spacers.
  • Page 12 BEF320-1A Operating Manual ACCESSORIES For the removal of thermoplastic road/runway markings, rubber 20mm based deposits and cold plastic 80600N coatings from asphalt and Milling cutter: Tipped with tungsten concrete. carbide. Heavy duty drum complete with For use with various cutter 32000 flail shafts.
  • Page 16 BEF320-1A Operating Manual...
  • Page 26 BEF320-1A Operating Manual BEF320 (B) TYPE PANEL ASSY (PART NO 3079B) DESCRIPTION SPE PART NO. Panel Inc Back Plate (Tempo Pano) Overload SPLRD16 Star Delta Start Unit Switch Block (Telemec) SPZB4BZ101 Switch Block (Telemec) SPZB4BZ102 Start Button (Telemec) SPZB4BA3 Start Button (Telemec)

  • Page 28: Specification Sheet

    BEF320-1A Operating Manual SPECIFICATION SHEET Specifications Electric Type BEF320-1A Part Number Power Output (hp) 380/415 Voltage Cycles Cutter head speed (rpm) Star/Delta Starter 0-12 Travel speed mtr/min Machine Dimensions (mm) 1230 Length Width 1220 Height Weight (kg) c/w cutter drum...
  • Page 29 BEF320-1A Operating Manual RECORD OF NOISE AND VIBRATION ASSESSMENT Manufacturer: Type: Scarifier Model No. BEF 320-1A Electric Operation : Concrete floor surface Inserted Tool: TCT cutters Running Conditions: 1450 rpm HAV Note: Acoustic Associates HAND-ARM VIBRATION Frequency Weighted Energy Equivalent Accelerations (a...

  • Page 30: Warranty

    Conditions of Sale (copy attached). Warranty start date: As despatch date Model: BEF320-1A Serial no: Customer name: Customer Address: Manufacturer: SPE International Ltd Honeyholes Lane Dunholme Lincoln LN2 3SU England Telephone: +44 (0) 1673 860709 Fax:...

  • Page 31: Declaration Of Conformity

    BEF320-1A Operating Manual DECLARATION OF CONFORMITY SPE INTERNATIONAL LTD Honeyholes Lane Dunholme Lincoln LN2 3SU DECLARE that under our sole responsibility for the supply/manufacture of the product (Description/name) BEF320 Multiplane (Model/type) BEF320-1A to which this declaration relates is in conformity with the following standards and other normative documents following the provisions of Directive 2006/42/EC.
  • Page 32 BEF320-1A CONDITIONS OF SALE Operating Manual The quotation overleaf and any order placed following such quotation are subject to the following conditions of sale in which SPE International Limited is referred to as the “Company”. Validity of quotation No order received from a customer by the Company shall constitute a contract until accepted in writing by the Company.
