ROBOfiber RB-4KHDMI Series User Manual

RB-4KHDMI series
4K HDMI Uncompressed Video Converter
User's manual (please read before installation)
1. Description
The RB-4KHDMI video digital optical converter uses an
all-digital fiber technology that allows transmission of 4K
uncompressed HDMI video signal over two fiber optic
strands only at high-quality and for long reaches.
RB-4KHDMI offers transport of a single high-definition
HDMI interface over fiber optic. If two fiber strands are
used, converter also provides a bidirectional RS-232
interface path for control signals. The single port series
converters can also be installed in a 16 slot 19", 2RU
chassis with redundant AC power supplies. RB-4KHDMI is
backward compatible with DVI video signal.
2. Technical Specifications
HDMI input/output
Video interface HDMI
4096×2160@30Hz or
Video resolution
1080p@120Hz
Video standard HDMI 1.4, HDMI 1.2a
Fiber interface
Optical connectors Dual LC (can operate over one
strand without RS232 interface)
Operating distance SMF 20Km (40Km or 60Km by demand
only)
Operating distance MMF 300 meters
Optical Tx Power -5dBm (either MMF or SMF)
Optical Rx Sensitivity -12dBm for MMF and -18dBm for
SMF
EDID supported
Data
TDMS signal I/O 1.2Vp-p
DC signal input 5V p-p (TTL)
Interface Type RS232/Manchester
Baud Rate 0-400Kbps
-9
BER < 10
Operation Mode Full duplex / half duplex
Operating parameters
AC 100-240V(adapter), DC12V/2A
Input power
converter
Power consumption 10W
Work Temp -10°C to 70°C
Storage Temp -40°C to 85°C
Humidity 0 ~ 95% (non-condensing)
3. LED status
LED Description
FIBER ON when fiber link is established
SYS ON when HDMI video signal is available
PWR ON when power is present
DATA ON when data is running through port
4. Installation
Package Contents: Converter, Power Adapter, and this
Manual
1
Please identify Transmitter and Receiver units in the
RB-4KHDMI package. "-T" ending unit is Transmitter and
must be installed at the source of HDMI signal, "-R" unit
will be installed at receiving end of the HDMI video signal
path.
Please connect optical fiber first and the HDMI copper
connections before powering up the units. Check LED
lights to confirm proper connectivity has been
established. HDMI signal should be available at remote
end.
Only use the power supply provided with the converter
unit. Power adapter provides stable and filtered power
for the fiber converters; if adapter is lost please contact
rd
vendor for a replacement part. A 3 party AC adapter can
only be used if output voltage, polarity and power jack
connector are identical to the original AC adapter.

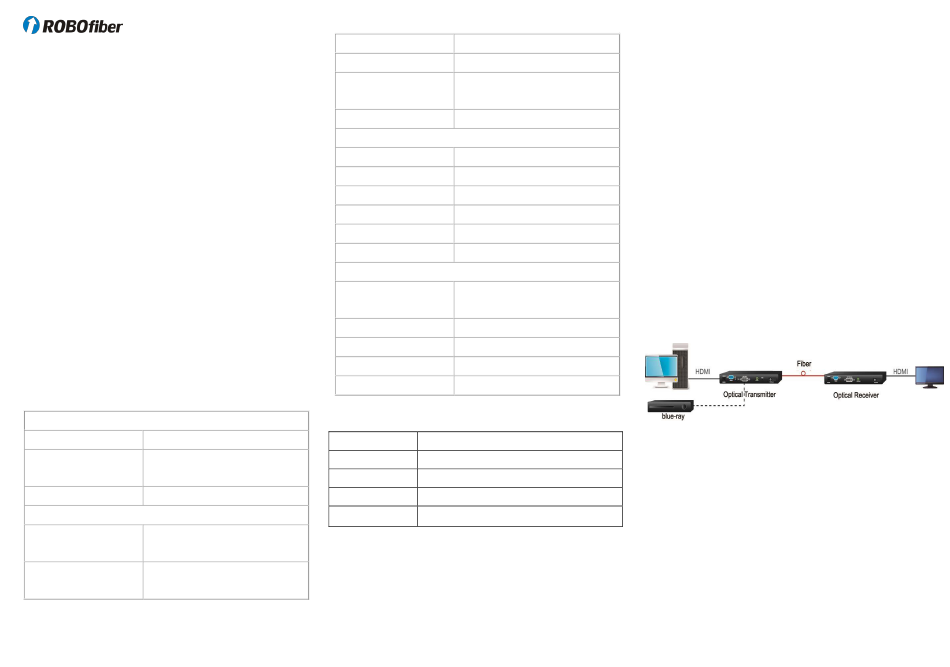

Diagram of RB-4KHDMI series installation
5. Safety
Please avoid exposure to water and do not install unit in
high humidity areas. Make sure all connectors (optical
and copper) are properly secured.
Please verify that power supplied is matching the input
required for operation:
- for AC adapter input：100~240V, 50~60Hz
www.robofiber.com
