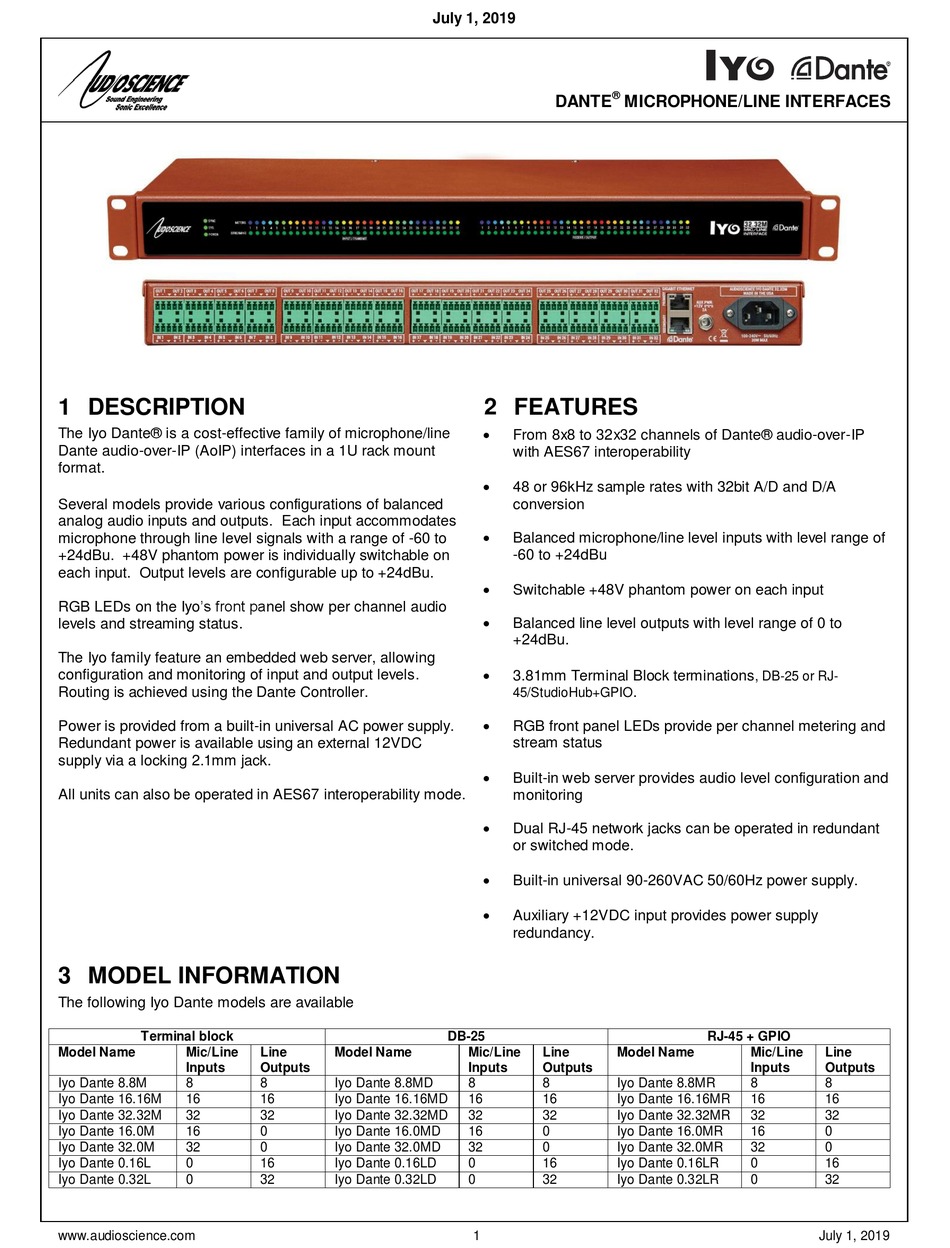

1 DESCRIPTION

The Iyo Dante® is a cost-effective family of microphone/line
Dante audio-over-IP (AoIP) interfaces in a 1U rack mount
format.
Several models provide various configurations of balanced
analog audio inputs and outputs. Each input accommodates
microphone through line level signals with a range of -60 to
+24dBu. +48V phantom power is individually switchable on
each input. Output levels are configurable up to +24dBu.
RGB LEDs on the Iyo's front panel show per channel audio
levels and streaming status.
The Iyo family feature an embedded web server, allowing
configuration and monitoring of input and output levels.
Routing is achieved using the Dante Controller.
Power is provided from a built-in universal AC power supply.
Redundant power is available using an external 12VDC
supply via a locking 2.1mm jack.
All units can also be operated in AES67 interoperability mode.

3 MODEL INFORMATION

The following Iyo Dante models are available
Terminal block
Model Name Mic/Line
Inputs
Iyo Dante 8.8M 8
Iyo Dante 16.16M 16
Iyo Dante 32.32M 32
Iyo Dante 16.0M 16
Iyo Dante 32.0M 32
Iyo Dante 0.16L 0
Iyo Dante 0.32L 0
www.audioscience.com
July 1, 2019
Line Model Name
Outputs
8 Iyo Dante 8.8MD
16 Iyo Dante 16.16MD
32 Iyo Dante 32.32MD
0 Iyo Dante 16.0MD
0 Iyo Dante 32.0MD
16 Iyo Dante 0.16LD
32 Iyo Dante 0.32LD
®
DANTE MICROPHONE/LINE INTERFACES

2 FEATURES


From 8x8 to 32x32 channels of Dante® audio-over-IP
with AES67 interoperability

48 or 96kHz sample rates with 32bit A/D and D/A
conversion

Balanced microphone/line level inputs with level range of
-60 to +24dBu

Switchable +48V phantom power on each input

Balanced line level outputs with level range of 0 to
+24dBu.

3.81mm Terminal Block terminations
45/StudioHub+GPIO

RGB front panel LEDs provide per channel metering and
stream status

Built-in web server provides audio level configuration and
monitoring

Dual RJ-45 network jacks can be operated in redundant
or switched mode.

Built-in universal 90-260VAC 50/60Hz power supply.

Auxiliary +12VDC input provides power supply
redundancy.
DB-25
Mic/Line Line Model Name
Inputs Outputs
8 8 Iyo Dante 8.8MR
16 16 Iyo Dante 16.16MR
32 32 Iyo Dante 32.32MR
16 0 Iyo Dante 16.0MR
32 0 Iyo Dante 32.0MR
0 16 Iyo Dante 0.16LR
0 32 Iyo Dante 0.32LR
1
, DB-25 or RJ-
.
RJ-45 + GPIO
Mic/Line
Inputs
8
16
32
16
32
0
0
Line
Outputs
8
16
32
0
0
16
32
