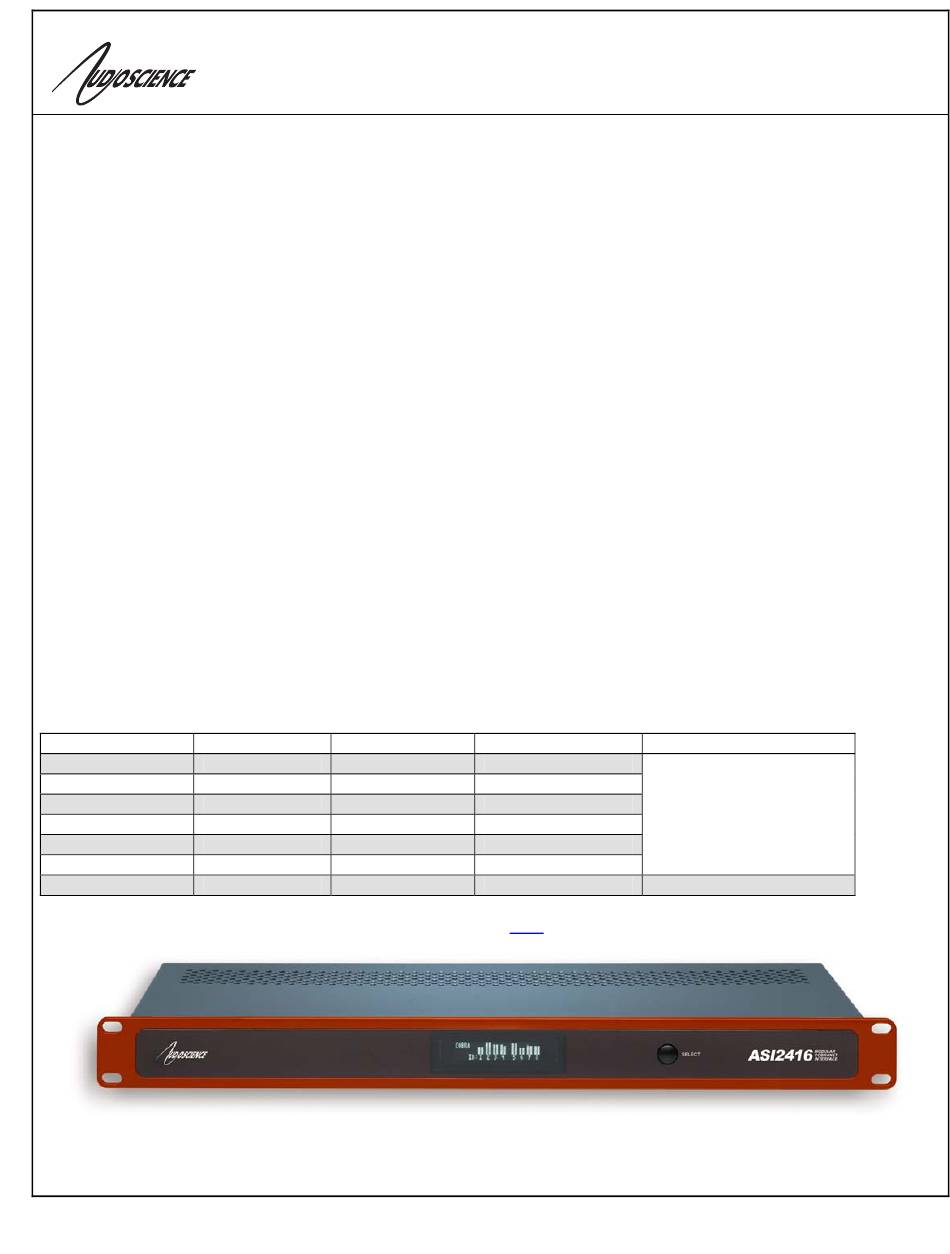

AudioScience COBRANET ASI2416 Manual

1 DESCRIPTION

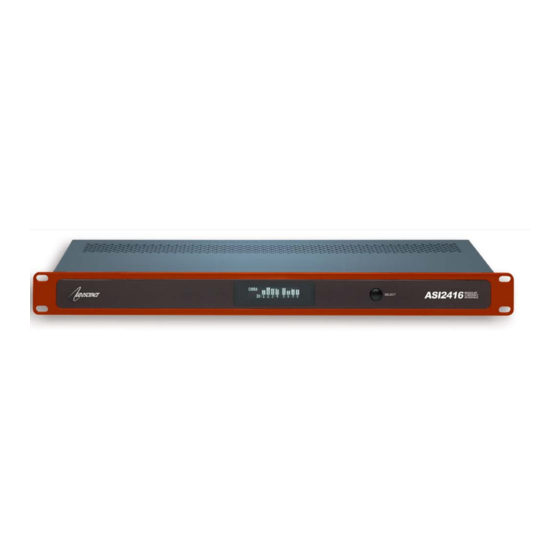

The ASI2416 is a CobraNet
rack mount format providing 16 channels of CobraNet
receive and transmit.
The unit can be populated with up to four function specific
modules, allowing up to 16 channels of analog or
AES/EBU I/O. Each module has an interchangeable
connector that may be configured with either a pluggable
terminal block, StudioHub+
connector with XLR breakout cables.
The ASI2416 features a powerful Texas Instruments 32bit
floating point DSP that allows sophisticated
switching/mixing. A graphics display on the unit's front
panel shows peak meters and CobraNet status.
AudioScience provides application software that may be
used to set up the ASI2416. ASIControl sets up all
internal features of the unit. ASIControl or CobraNet
Discovery allows CobraNet routing connections to be set
up between the ASI2416 and any other CobraNet device
on the network.

3 MODULE INFORMATION

Model
ASI1431
ASI1432
ASI1433
ASI1441
ASI1442
ASI1443
ASI1445
Configure the ASI2416 as needed - use the order form found
CobraNet is a registered trademark of Cirrus Logic and StudioHub+ is a registered trademark of Radio Systems, Inc.
www.audioscience.com
18 November 2008
™
audio interface in a 1RU
®
RJ-45, or a 50pin Centronics
Inputs Outputs
8 8
8 0
0 8
8 8
8 0
0 8
16 16
MODULAR COBRANET

2 FEATURES

• ™
16 CobraNet input channels and 16 CobraNet output
channels on 100Mbit Ethernet with redundant RJ-45
connectors
•
4 CobraNet Transmitters and 8 CobraNet Receivers.
•
1RU rack-mount unit
•
Modular architecture allows up to 4 I/O modules to be
inserted into the back of the unit
•
Module connector options include Terminal Block
(Phoenix style), StudioHub+
Centronics connector with XLR breakout cables
•
Available modules include eight-channel analog I/O and
eight channel AES/EBU I/O.
•
Powerful floating point DSP provides metering, level
control and up to 20 dB gain on all signal paths.
•
Interoperable with ASI6416 CobraNet Sound Card and
other third party CobraNet equipment
•
Built-in 90-260VAC power supply
Input/Output Type
Balanced analog
Balanced analog
ASI1491
Balanced analog
ASI1492
ASI1493
AES/EBU
AES/EBU
AES/EBU
GPIO Optos/Relays ASI1493
here to customize yours.
1
ASI2416
™
1RU INTERFACE
®
RJ-45, or 50pin
Connector Type
(50 pin Centronics)
(StudioHub+ RJ-45)
(Terminal block)
(Terminal block)
18 November 2008
