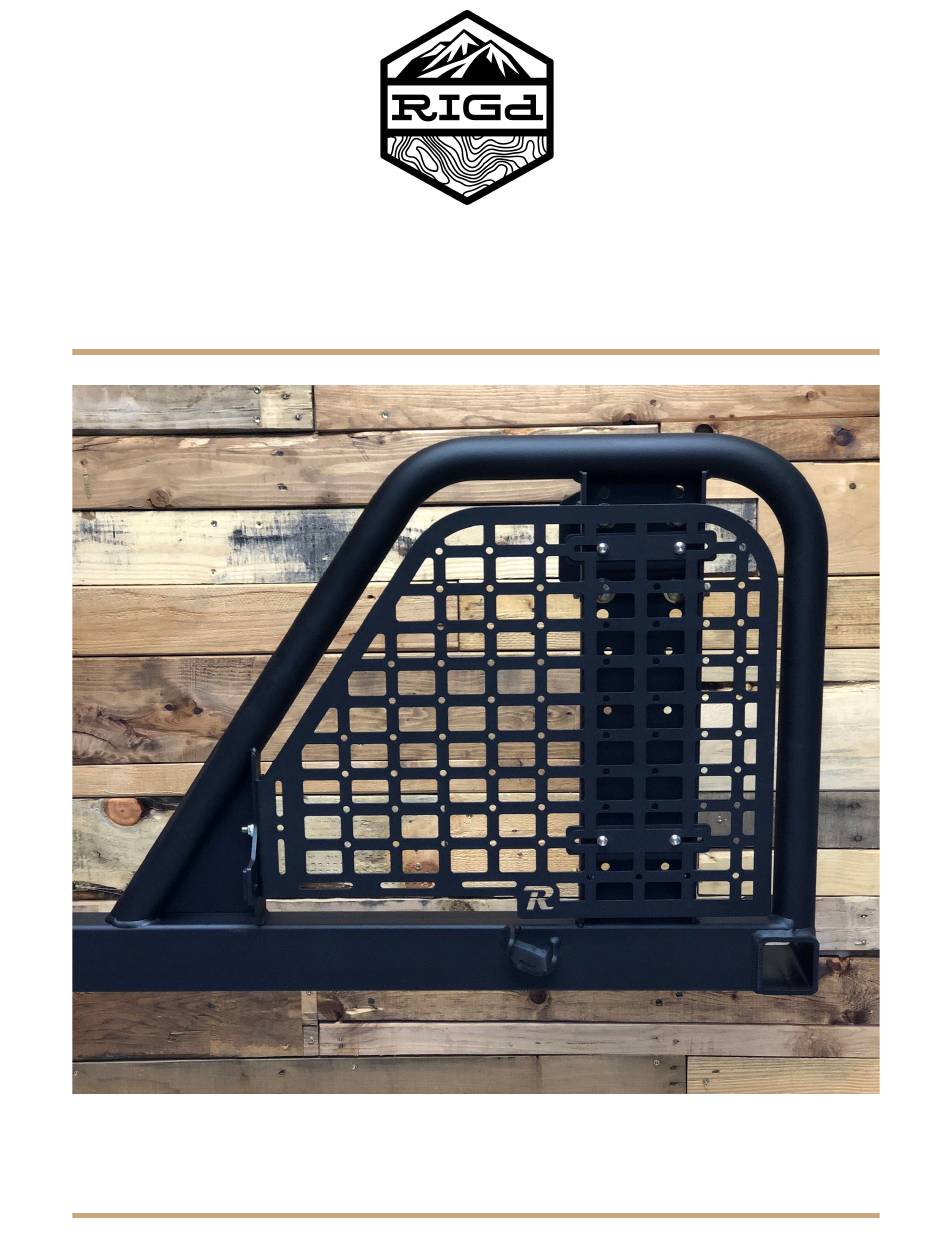

- Page 1 INSTALLATION GUIDE UltraPlate ™ Congratulations on your UltraPlate! You’re only a few steps away from hitting the trail. RIGd Supply 1533 W Orangewood Ave, Orange, CA 92868 | info@rigdsupply.com | 949-424-3057 ...
- Page 2 Installing the RIGd UltraPlate™ to the UltraSwing™ First and foremost if you bought your UltraSwing with a wheel-plate at the second hole down, mount your wheel-plate and be sure the bolts and washers are mounted from ...
- Page 3 Figure 3 2. Now fit your UltraPlate to the UltraSwing, the brackets should fit inside the channel of the UltraSwing. If needed you can loosen the button head bolts to slide over where needed. 3. Hand tighten the 2 bolts by the handle. ...
- Page 4 4. Next, hand tighten your 4 remaining bolts into the channel from the outside in. 4 ...
- Page 5 5. Go back the the 2 bolts by the handle and tighten them with 9/16 wrenches. Follow up with the 4 channel bolts. 5 ...
- Page 6 Congratulations, your UltraPlate is now installed! 6 ...
