- Page 1 INSTALLATION GUIDE UltraSwing Multi-Fit ™ Congratulations on your UltraSwing! You’re only a few steps away from hitting the trail. RIGd Supply 1533 W Orangewood Ave, Orange, CA 92868 | info@rigdsupply.com | 714-820-9444 ...
- Page 2 WARNING: Never exceed the 250 lbs total weight rating of the UltraSwing. In severe off-road application we recommend reducing the total weight to 150lbs. UltraSwing is tow rated to 10,000 lbs (1,000 lb tongue). Never exceed your vehicle's towing capacity. Subtract the weight of the UltraSwing (70 lbs) as well as the weight of your spare tire and all other products ...
- Page 3 WARNING : The UltraWedge is only designed to eliminate wobbling in the receiver. Always use a hitch pin. NOTE: The UltraSwing was fixtured to have several degrees of upslope towards the passenger side. This is in order to provide maximum departure angle and improved aesthetics when ...

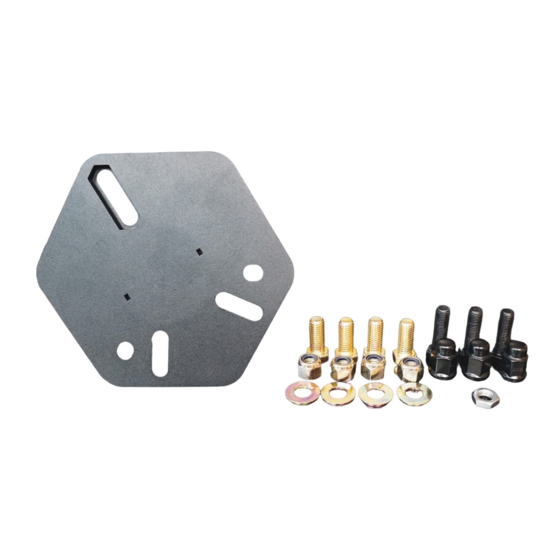

- Page 4 Full-Size Wheel Plate w/ corresponding hardware Setting Multi-Fit Plate Lugs Before mounting your wheel plate to the UltraSwing, set your top lug to the proper height. (Figure 4) 1. Place the wheel plate on the backside of your rim and align the three lug ...
- Page 5 Figure 5 Figure 6 Installing Wheel Plate For 32-inch or smaller tires or plan to run an Ultraplate we recommend starting at the lowest set of holes. For 33-34-inch tires we recommend to use the middle set of holes. ...
- Page 6 License Plate Relocation Your UltraSwing Multi-Fit includes a license plate relocation bracket. (See Figure 8). Extra thick spacers can be used to space the plate as needed. (Figure 9) Completed install of the license plate bracket ...
- Page 7 Figure 10 Figure 9 Compression Latch Adjustment Washers Your latch has been pre-adjusted by RIGd. However, if you’d like to add more compression to the latch silver washers have been included to fine-tune the feel of the latch.
- Page 8 Limited Lifetime Warranty RIGd Supply offers a Limited Lifetime Warranty on the structure of each UltraSwing to the original purchaser. Exclusions 1. UltraSwings that have been abused, crashed, altered, modified, or installed on vehicles other than those approved by RIGd Supply ...
