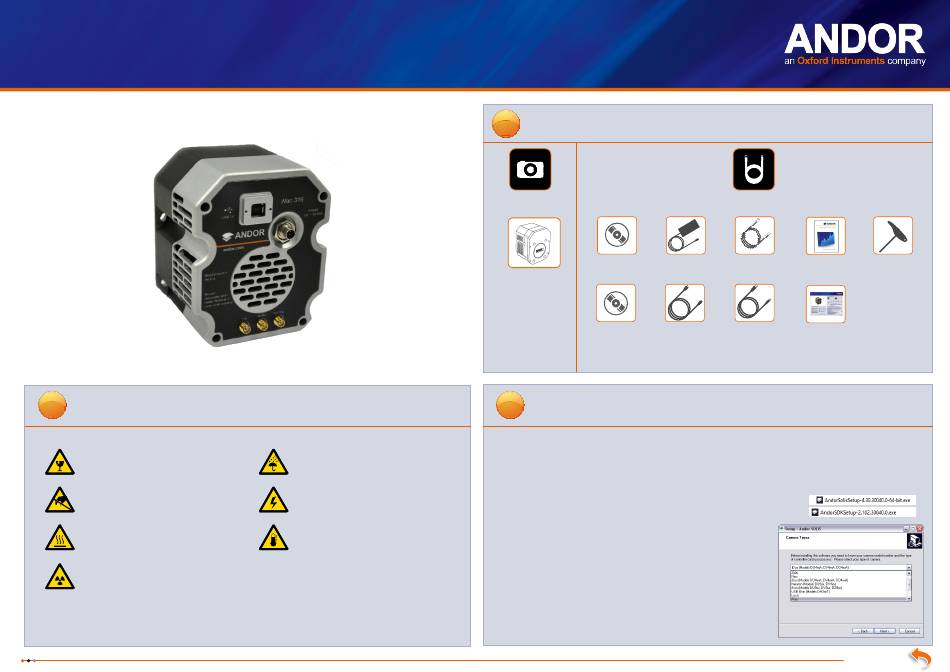

iVac (316 & 324) Quick Start Guide
1
Preparing Your Facility
Handle the camera and accessories with care.
The iVac weighs 1.4 kg [3 lb 13 oz].
Observe anti-static precautions when
installing the camera.
Ensure 90 mm clearance around camera
and power supply vents (Do not block
vents when operating on benchtop).
Operation of the camera close to intense
pulsed sources (e.g. plasma and X-ray
sources) may compromise performance.
Keep dry, <70% humidity non-condensing.
Use correct power supply and cables.
Store between -25°C and 50°C.
Operate between 0°C and 40°C.
Refer to the user manual for further information.
2
Unpacking the Boxes
Camera
Software /
Power Supply
Driver DVD(s)

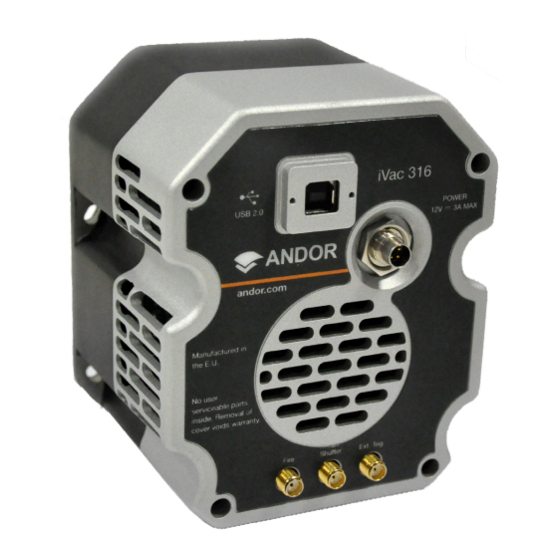

iVac Camera
(316 BI CCD
or
324 FI CCD model)
Country Specific
Product Manuals
on CD
Power Cord
*Accessories and documentation supplied with your iVac will be as ordered and may vary from
the options shown above.
3
Installing Software (Solis or SDK)
You must have administrator access on your PC to perform this installation.
The same instructions cover the installation procedure for Andor's Solis or SDK software, which is used in
conjunction with third party software. If you are planning to run your camera through a third party interface you will
require the Andor Drivers, called SDK.
Switch on the PC, insert CD and run the Solis (or SDK) setup .exe file on the CD or
download location.
• Confirm the version of software.
• Follow the on screen prompts.
• Select the installation directory when prompted.
• If prompted, select the appropriate camera model from the list e.g. iVac.
• On the final window click on "Install". During the installation a number of
other windows will appear as various drivers are installed.
• To complete the installation, when prompted select "Yes, restart the
computer now" and click on the finish button.
For more information visit: http://www.andor.com/scientific-software
Accessories*
BNC-SMA Trigger
Performance
Hex Keys (x2)
Cable (2 m)
Sheet
USB Cable
Quick Start
(3 m)
Guide
Please turn over
