jcb 540-170 Service Manual page 55

Note: No longer available, refer to 998/11051 JCB
ServiceMaster Digital Hydraulic Datalogger Pressure
K Fig 30. ( T
Test Kit. 1-5-13).

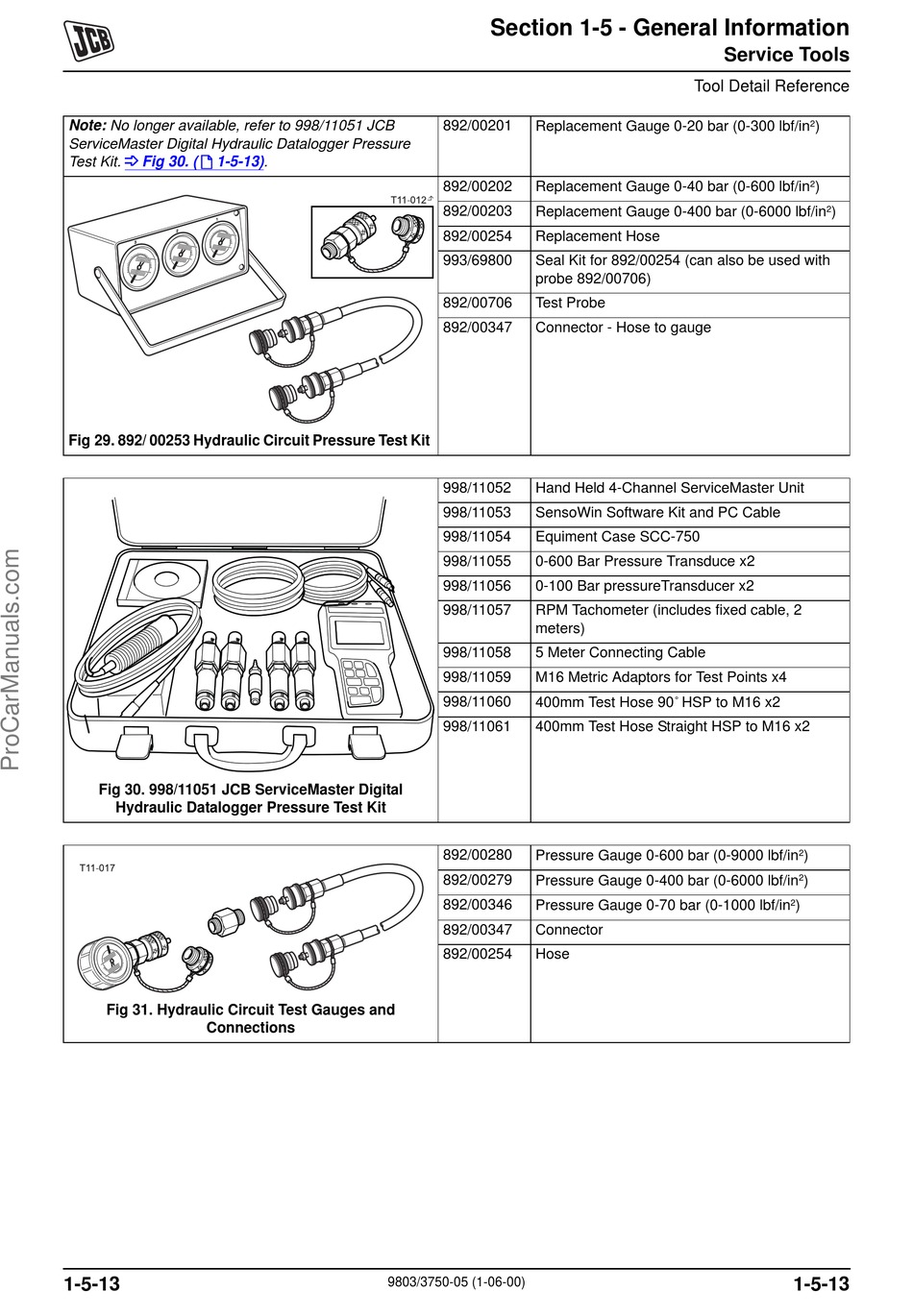

Fig 29. 892/ 00253 Hydraulic Circuit Pressure Test Kit
Fig 30. 998/11051 JCB ServiceMaster Digital
Hydraulic Datalogger Pressure Test Kit
Fig 31. Hydraulic Circuit Test Gauges and
Connections
1-5-13
Section 1-5 - General Information
892/00201 Replacement Gauge 0-20 bar (0-300 lbf/in
892/00202 Replacement Gauge 0-40 bar (0-600 lbf/in
892/00203 Replacement Gauge 0-400 bar (0-6000 lbf/in
892/00254 Replacement Hose
993/69800 Seal Kit for 892/00254 (can also be used with
probe 892/00706)
892/00706 Test Probe
892/00347 Connector - Hose to gauge
998/11052 Hand Held 4-Channel ServiceMaster Unit
998/11053 SensoWin Software Kit and PC Cable
998/11054 Equiment Case SCC-750
998/11055 0-600 Bar Pressure Transduce x2
998/11056 0-100 Bar pressureTransducer x2
998/11057 RPM Tachometer (includes fixed cable, 2
meters)
998/11058 5 Meter Connecting Cable
998/11059 M16 Metric Adaptors for Test Points x4
998/11060
400mm Test Hose 90
998/11061 400mm Test Hose Straight HSP to M16 x2
892/00280 Pressure Gauge 0-600 bar (0-9000 lbf/in
892/00279 Pressure Gauge 0-400 bar (0-6000 lbf/in
892/00346 Pressure Gauge 0-70 bar (0-1000 lbf/in
892/00347 Connector
892/00254 Hose
9803/3750-05 (1-06-00)
Service Tools
Tool Detail Reference
2 )
2 )
2 )
° HSP to M16 x2
2 )
2 )
2 )
1-5-13
