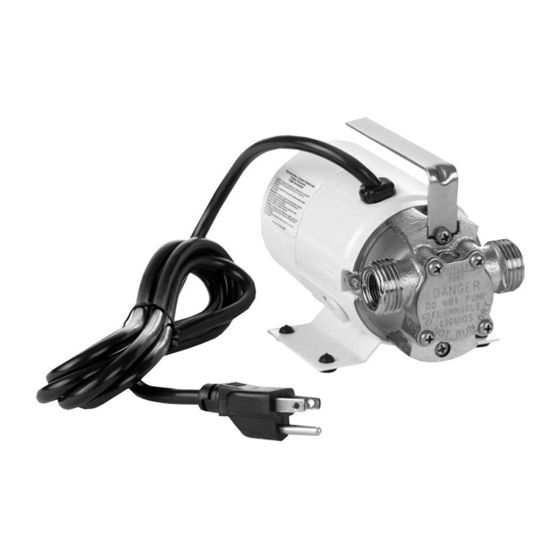

365 Pony Pump
Commercial, industrial and home uses where liquid must be transferred
• 1/10 HP non-submersible stainless steel
pump body
• 12 VDC motor
• 2.1 m with clips cord
• Self-priming for instant delivery or de-
watering up to 1.8 m
• Rugged metallic handle for easy portability
• Dual threaded intake and discharge with both
19mm male garden hose thread and 10 mm
FNPT
• IP 53
Capacity:
1136 LPH @31m
Shut Off:
14 m
Discharge:
19 mm
Electrical:
12VDC, 60Hz, 7.0A, 165W
MODEL:
555203
BPLA
Utility Pump
Water removal from compact places such as boat bilges, recreational vehicles or bait tank
• 12 VDC motor
• Submersible or in-line use
• Designed for intermittent use only
• Plastic and stainless-steel construction
• Compact, light-weight, operates in any position
• Port connections equipped with bilge inlet plate
with strainer
• 12.7mm inlet plate accessory included
• Accepts 15.9mm hose
Capacity:
1330 LPH @31m
Shut Off:
3.35 m
Electrical:
12VDC, 60Hz, 20A, 165W
'12 VDC Pump'

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PONY 360 and is the answer not in the manual?

Questions and answers

Summary of Contents for Little Giant PONY 360

  • Page 1 365 Pony Pump ‘12 VDC Pump’ Commercial, industrial and home uses where liquid must be transferred • 1/10 HP non-submersible stainless steel pump body • 12 VDC motor • 2.1 m with clips cord • Self-priming for instant delivery or de- watering up to 1.8 m •...
  • Page 2 The Little Giant unit you have purchased is of the highest quality workmanship and material. It has been engineered to give you long and trouble-free service. The Little Giant pumps are carefully packaged, inspected and tested to insure safe operation and delivery.
  • Page 3 ELECTRICAL CONNECTIONS Make certain that power source conforms to the requirements of your equipment. When wiring an electrically driven pump, follow all electrical and safety codes, as well as the most recent National Electrical Code (NEC) and the Occupational Safety and Health Act (OSHA) in the United States. Model 360 and 370 are only for use on 115 volt (single-phase) and is equipped with an approved 3-conductor cord and 3-prong, grounding-type plug.
  • Page 4 INSTALLATION WARNING: In any installations where property damage and/or personal injury might result from an inoperative or leaking pump due to power out- ages, discharge line blockage, or any other reason, a backup system(s) should be used. In order to safely use this product, familiarize yourself with this pump and also with the liquid (chemical, etc.) that is going to be pumped through the unit.
  • Page 5 SERVICE INSTRUCTIONS CAUTION: Disconnect from power source when making adjustments and repairs. On DC (direct current) versions, first disconnect the black negative (–) lead wire, and then lastly disconnect the red positive (+) lead wire. Always drain pump when not in use. If pump is not going to be used for a month or longer, flush with fresh water and remove body cover, take impeller out, clean inside body and apply generous coating of Vaseline, to both inside body and impeller before replacing impeller in body.
  • Page 6 BPLA Introduction This instruction sheet provides you with the information required to safely own and operate your product. Retain these instructions for future reference. The product you have purchased is of the highest quality workmanship and material, and has been engineered to give you long and reliable service.
  • Page 7 the groove on the inlet plate before reassembly. Carefully reinsert the mounting screws, taking care not to cut new threads or strip the screw holes. When connected in-line, slope the hose or pipe connection upward from the pump inlet to the water supply. A flooded suction is necessary for pump to operate.

This manual is also suitable for:

Pony 365Pony 370Bpla
