Interfit Projector Bracket

Thank you for purchasing a Screen Technics Interfit Projector Bracket and please read the following instructions

before attempting to install a projector.

In your package you will have several parts that require assembly to create a basic Flush Style Interfit Projector

Bracket, if you have purchased an extension post please read that section separately as listed below.

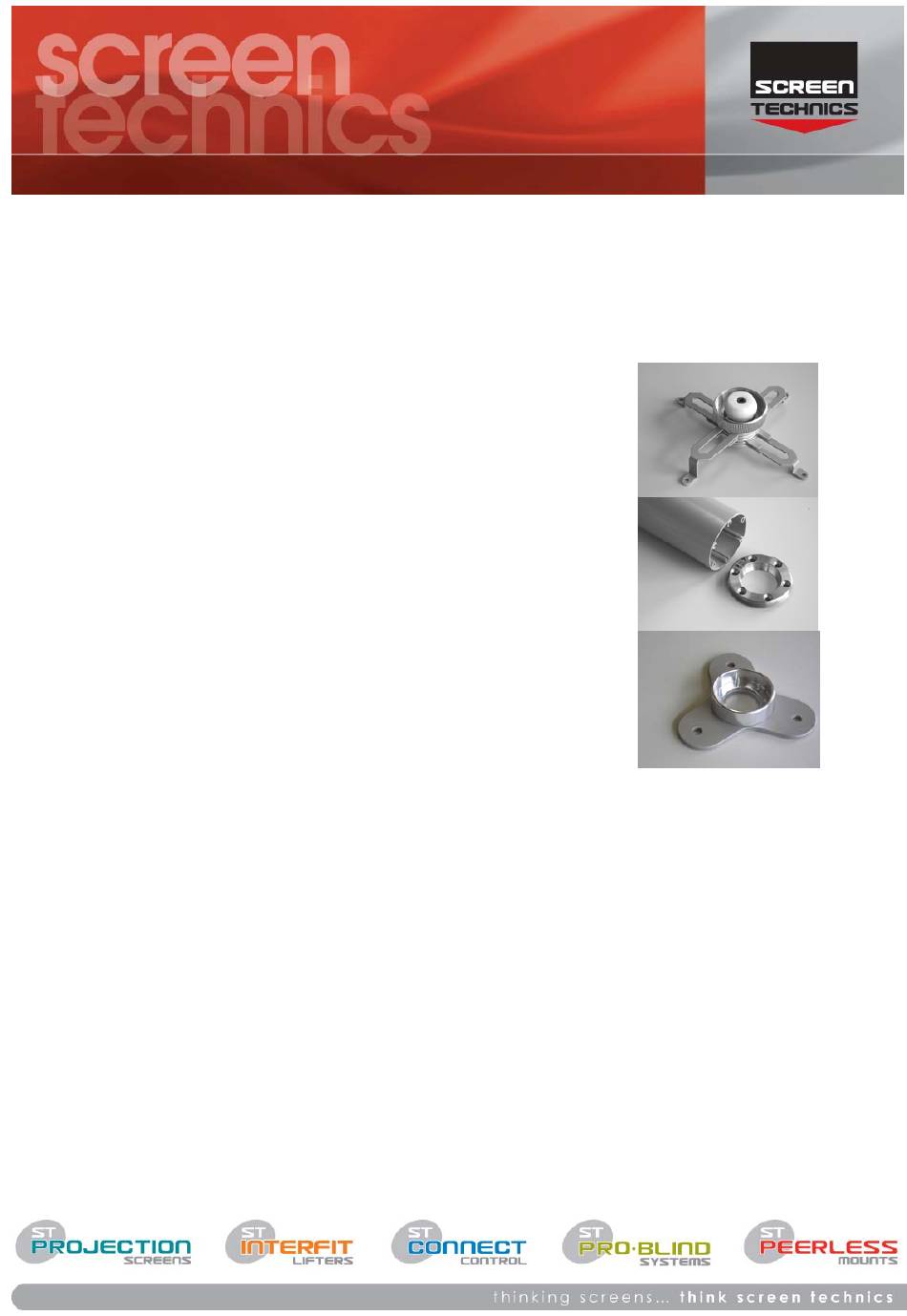

Projector Mounting Head – which has the spider arms, ball joint and

threaded adjustment collar.

Central Post – which varies in length according to model purchased, with

removable threaded head ring.

Ceiling Plate - with base collar for post mounting.

Step 1 – Attach the Projector Mounting Head assembly to the projector, by loosening the Allen Key (6mm) on

top of the nylon ball joint, this in-turn loosens the Spider Arms to enable movement to locate the appropriate

projector mounting holes.

Utilise the supplied bolts, 4 off ( M4, M5, M6 ) to secure projector to Spider Arms, being careful not to screw

down too far as this may "bottom out" the bolts in the threaded holes in the projector, as this could damage the

projector unit.

It is the installer's responsibility to ensure that the supplied bolts are suitable for the fitting task and we

recommend that at least 5mm of bolt thread be utilised in fitting the projector.

Step 2 – Locate the Ball Joint assembly centrally (approx) over the spider arms, that are now attached to the

projector and re-tighten the 6mm Allen Key bolt, locking the arms into position.

NB : This movement of the ball joint within the arms radius area can be utilised after the mount is attached to the

ceiling for any minor side sideways or front to back adjustment if required.

Step 3 – Now connect the mounting post ( 6 Screws ) to the baseplate / collar assembly and secure the ceiling

baseplate to a suitable structure – never attach directly to plaster ceiling without additional support – and

decide on the best solution for cable management.

Table of Contents

Need help?

Do you have a question about the Interlift Projector Bracket and is the answer not in the manual?

Page 1 Interfit Projector Bracket Thank you for purchasing a Screen Technics Interfit Projector Bracket and please read the following instructions before attempting to install a projector. In your package you will have several parts that require assembly to create a basic Flush Style Interfit Projector Bracket, if you have purchased an extension post please read that section separately as listed below.
Page 2 Cable Management - It is possible to use the mounting post for cable runs, just unscrew the Threaded Head Ring ( 6 screws ) and pass the cable heads through the post and place the mid sections of the cables in the cable exist cut-out and re-attach the Threaded Head Ring.
