Interfit Motorised Swing Arm Instructions
Thank you for purchasing an Interfit Swing Arm System and please ensure to read the instruction fully before
proceeding to install the unit.
General Advice
Please ensure that you assess all risks in the installation of this product and work with appropriate work practices.
The Interfit Swing Arm System is designed to be used in conjunction with an Electricinema Motorised Projection
Screen from Screen Technics. It allows a projection screen to be mounted flat against a side wall, then when
required to motor out to a right angle to face an audience.
This product is not to be used for any other purpose.
Please ensure that a suitable wall structure, approved by an engineer, is used in conjunction with this product.
Parts List
1x Top Mount Plate
1 x Bottom Mount Plate with Gearbox
2 x Wire Cables 4mm (will require trimming to length)
1 x Gearbox Shaft
1 x Swing Arm
2 x Screen Mounting Brackets
4 x Swage Clamps
4 x Cable Clamps
Installation Advice
1.

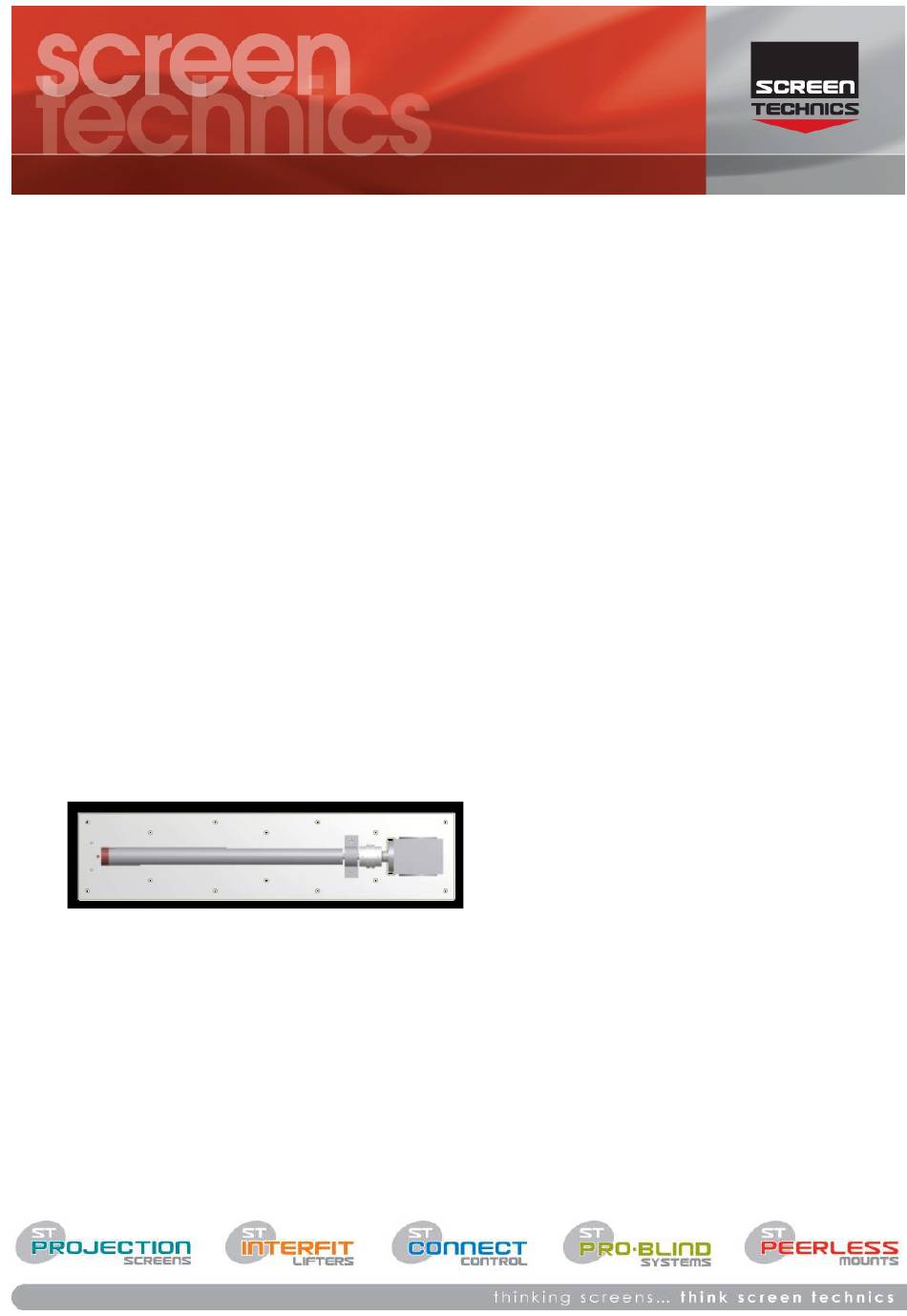

Mounting of the Bottom Plate and Gearbox – Remove the mechanism cover to expose the mounting
holes and tubular motor assembly.
2.
Take note that the gearbox assembly is required to be mounted on the opposing side from the travel
direction of the awing arm. If not the swing arm will hit the gearbox.
3.
Take note of the gearbox shaft position, as this is the centre line of the arm position for installation.
4.
Using suitable fixing hardware, designed for the type of wall structure you have available to mount. You
will find 14 x mounting hole positions for you to choose from, with a minimum of 8 fixing points being the
minimum required. Fit to wall.
5.
Now fit the top mounting plate assembly – it needs to be mounted in direct vertical centreline with the
gearbox shaft, as mentioned above, and at a minimum distance of 1600mm separation from the two
plate assemblies. You will find 8 mounting holes to choose from with a minimum of 4 fixing positions
required. Ensure the plate is installed the correct way up, which is fitted with the wider dimension on the
horizontal with the nylon cable bush at the central of the assembly running vertically.
