Curtis TCN Series Instructions And Parts List

WARNING:
• Clean the dispenser completely before using it for the first time according to the DAILY CLEANING
INSTRUCTIONS (back). Clean it regularly as instructed in the DAILY CLEANING INSTRUCTIONS.
• This product can expose you to chemicals including Acrylamide and Bisphenol A (BPA), which are known
to the State of California to cause cancer and birth defects or other reproductive harm. For more information
visit www.P65Warnings.ca.gov.
PARTS LIST
1B
1C
6A
7
6B
12
OPTIONAL
FAUCET
ITEM # PART # DESCRIPTION
1A WC-56052 LID, BREW ASSY THROUGH TCN
1B WC-56081 LID, LATCHABLE TCNL
1C WC-61436 LID, PLASTIC TCN (OLD)
2 WC-38471 LABEL, FRONT TCO ICED TEA GENERIC
3 WC-3276* LATCH, DRAW ZINC PLATED STEEL TCN200
4 WC-4263* NUT, 6-32 x ¼ OD HEX W/WASHER KEPS
5 WC-37260** KIT, FAUCET W/ADAPTER COMPLETE TC/TT
FAUCET, "SPB" SERIES,BLACK HANDLE/
6A WC-1803
PLASTIC 1-1/32-14 UNS CURT
FAUCET, "SPB" SERIES BLK PLST
6B WC-1865
SWEETENED/UNSWEETENED (NOT SHOWN)
Service & Sales
1-800-421-6150
INSTRUCTIONS AND PARTS LIST

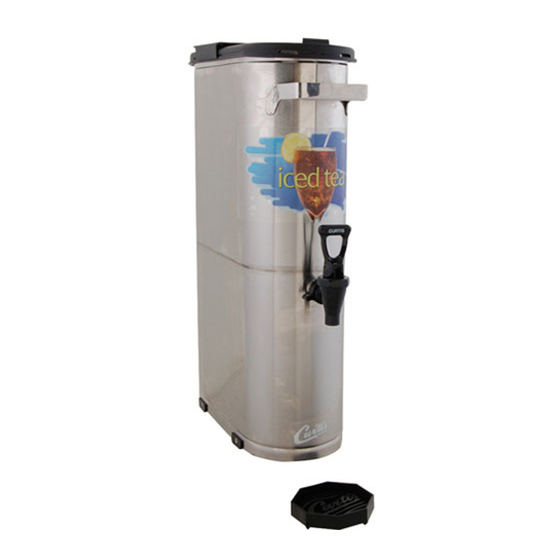

TCN SERIES ICED TEA DISPENSERS
1A
2
13
14
5
9
10
11
ITEM # PART # DESCRIPTION
SEAT CUP, "S" FAUCET USE ON
7 WC-1805
WC-1800/B/LB/D/DL/L/WC-1803
8 WC-3289 HANDLE, GASKET TCN
9 WC-38163 LABEL, CURTIS LOGO WHITE TRANSFER
10 WC-5686 DRIP TRAY, OCTAGON STYLE
11 WC-3531 LEG, PLASTIC GLIDE TCN
12 WC-1840 FAUCET, PINCH TUBE TC
13 WC-1906 "C" RG .917 X .760 X .090 TT-3 TC'S
14 WC-1905 NUT, WING PLASTIC 1-1/32-14UNF (TC-2,3,5,10)
* Used on TCNL series only.
**For units manufactured before 03/01/2017.
3
4
8
