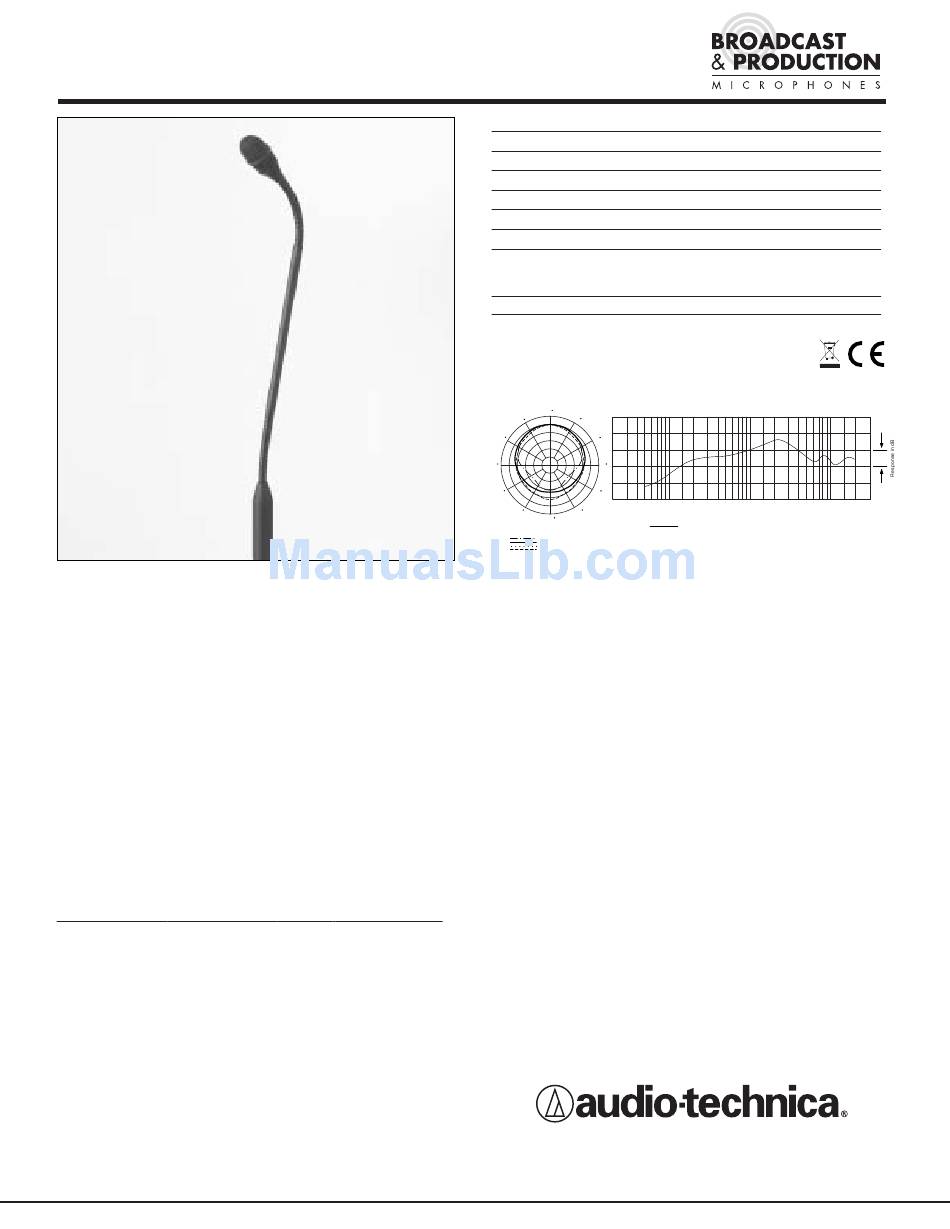

Subcardioid dynamic console microphone

Advertisement

Quick Links

AT808G
SUBCARDIOID DYNAMIC CONSOLE MICROPHONE
• Designed for use as a quality talk-back microphone in
entertainment, commercial and industrial applications
• Versatile gooseneck design and dependable performance
• Custom-tailored frequency response ensures excellent
intelligibility in environments with excessive ambient noise
• Subcardioid polar pattern reduces pickup of sounds from the
sides and rear, improving isolation of desired sound source
• Protective screen reduces wind noise and "popping" when used
extremely close
• Plugs directly into an XLRF-type surface or cable connector
Output from the microphone's XLRM-type connector is low
impedance (Lo-Z) balanced. The signal appears across Pins 2
and 3; Pin 1 is ground (shield). Output phase is "Pin 2 hot" –
positive acoustic pressure produces positive voltage at Pin 2.
To avoid phase cancellation and poor sound, all mic cables must be
wired consistently: Pin 1-to-Pin 1, etc. For a high-impedance (Hi-Z)
mic input, connect a Lo-Z balanced cable to a Hi-Z matching
transformer (A-T CP8201 or equal) at the equipment input.
Plug Type
Ground
XLR
Pin 1
1
/
" "TRS"
Sleeve
4
1
/
"
Sleeve
4
The flexible gooseneck is easy to manipulate for proper positioning.
Heavily lubricated, it operates smoothly and quietly. Should the unit
become noisy with prolonged use, apply a light machine oil directly
on the gooseneck area affected.
Take care to keep foreign particles from entering the windscreen.
An accumulation of iron or steel filings on the diaphragm, and/or
foreign material in the windscreen's mesh surface, can degrade
performance.
Audio "+"
Audio "-"
Pin 2
Pin 3
Tip
Ring
Tip
Sleeve
AT808G SPECIFICATIONS
ELEMENT
POLAR PATTERN
FREQUENCY RESPONSE
OPEN CIRCUIT SENSITIVITY
IMPEDANCE
WEIGHT
DIMENSIONS
OUTPUT CONNECTOR
† In the interest of standards development, A.T .U.S. offers full details on its test
methods to other industry professionals on request.
*1 Pascal = 10 dynes /cm
2
= 10 microbars = 94 dB SPL
Specifications are subject to change without notice.
Polar Pattern
0
30
330
300
60
270
90
240
120
50
100
150
210
180
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
LEGEND
200 Hz
1 kHz
5 kHz
8 kHz
Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224
Audio-Technica Limited, Old Lane, Leeds LS11 8AG England
www.audio-technica.com
P51662-01
©2005 Audio-Technica U.S., Inc.
Dynamic
Subcardioid
200-5,000 Hz
–60 dB (1.0 mV) re 1V at 1 Pa*
800 ohms
4.8 oz (135 g)
16.20" (412.7 mm) long,
0.98" (25.0 mm) head diameter,
0.75" (19.0 mm) base diameter
Integral 3-pin XLRM-type
Frequency Response
200
500
1k
2k
5k
10k
20k
Frequency in Hertz
12" or more on axis
Printed in Japan
10 dB
