Summary of Contents for Oceanic OSX

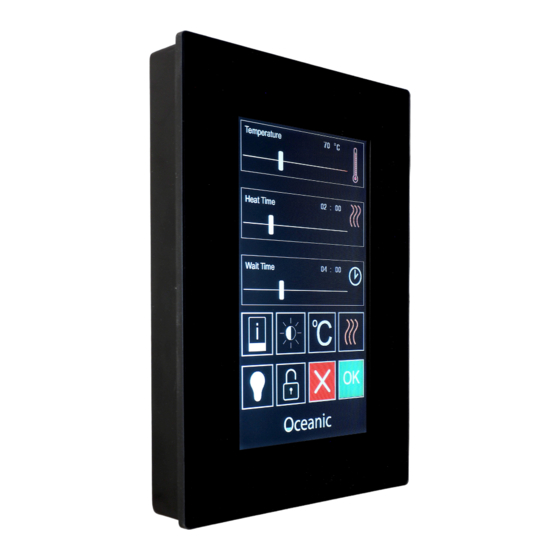

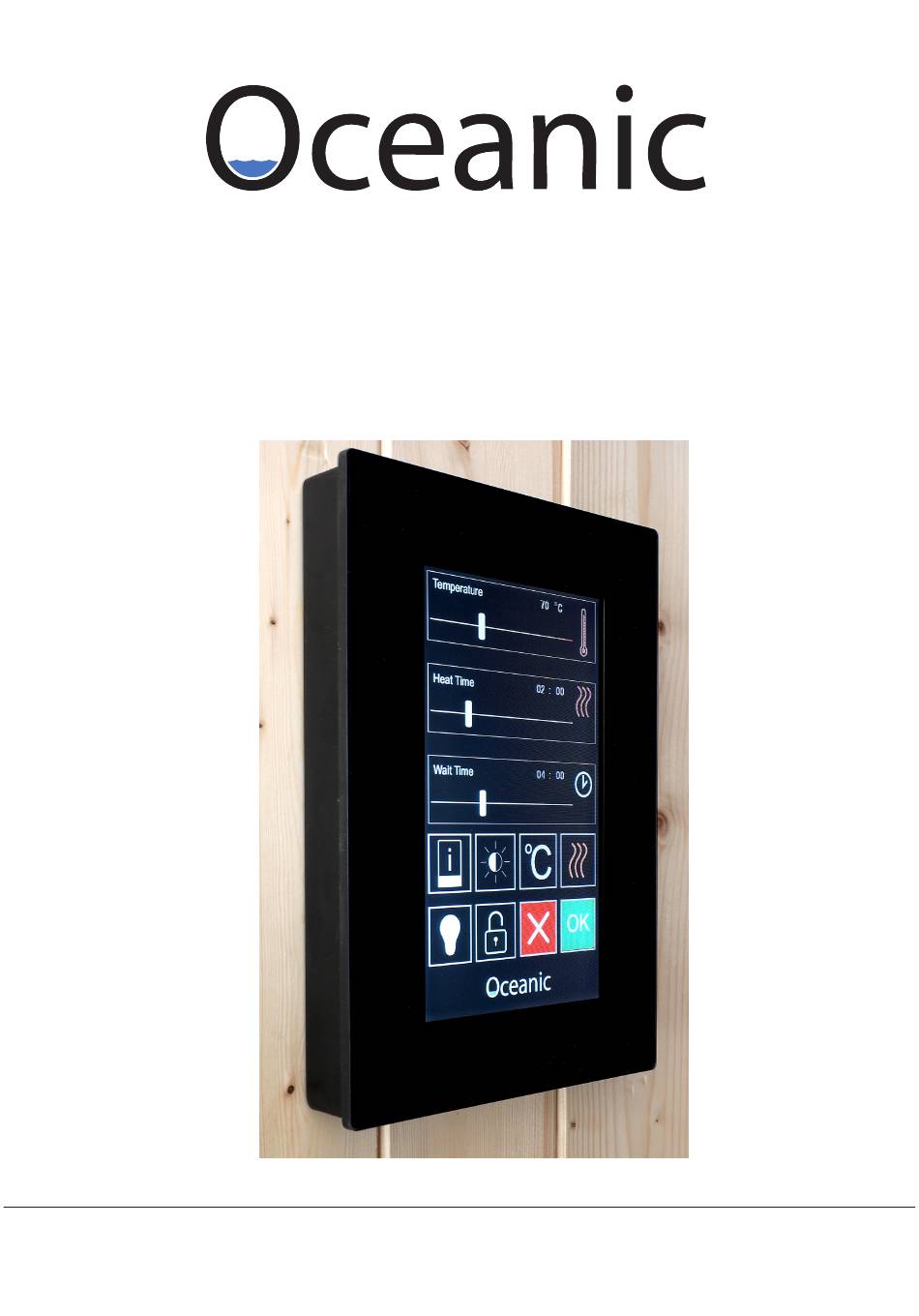

- Page 1 S a u n a & S t e a m OSX Sauna Controller Instructions Oceanic Ltd, Pountney Street, Wolverhampton, WV2 4HX Phone: 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
-
Page 2: Table Of Contents
Parameters ..........4 OSX Touch Screen Installation ........4 Touch Screen Operation . -
Page 3: Introduction
Introduction Thank you for choosing to buy our Oceanic OSX Sauna Heater Controller , please take the time to read these instructions before you begin as they contain important information about the installation and operation of the control system. These instructions are a supplement to the sauna heater installation manual that will have been supplied with the heater you have purchased. -
Page 4: Parameters
Voltage:DC5V 25mm 35mm 30mm OSX Touch Screen Installation We recommend installing the keypad either on the front of the sauna cabin itself or a nearby wall. Note that the cable is routed out of the back of the keypad. To surface mount the keypad: •... - Page 5 To remove back box use a flat head screwdriver at the tabs along the long edges of the back-box to lift the keypad away from the casing. Suggested cut out dimensions Back-box dimensions Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
-
Page 6: Touch Screen Operation
Light button Switches main light on Changes white once pressed to show that the light is on Secondary Light button Activates second lighting circuit Oceanic Settings button Enter settings page Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk... - Page 7 00:59 Oceanic Time remaining until heater switches off Heating Icon Shows sauna is in heating mode Power On Press to switch Power Off and return to Screen 1 Oceanic Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
-
Page 8: Screen 1. Home Screen
Then push down the black cap on top of the overheat button. Plastic Cover Plastic Cover Temperature Sensor Reset Button Bracket Overheat Button Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk... - Page 9 Press to enter lighting settings Confirm changes and return to previous screen. Settings will be Control Lock saved even if screen is turned off. Press to lock controls via PIN. Enter PIN screen Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
-
Page 10: Screen 2. Wait Mode
Brightness Waiting Brightness Waiting Light II Use slider to set the brightness of the primary lighting circuit inside the sauna when in Wait Mode. Oceanic Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk... -
Page 11: Screen 3. Heating Mode
PIN is entered and set- tings unlocked. Only Power On/Off and Lighting Unlock Settings can be operated if settings are locked. Unlock Settings (selected) Unlocks the settings to allow adjustments to be made. Oceanic Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
