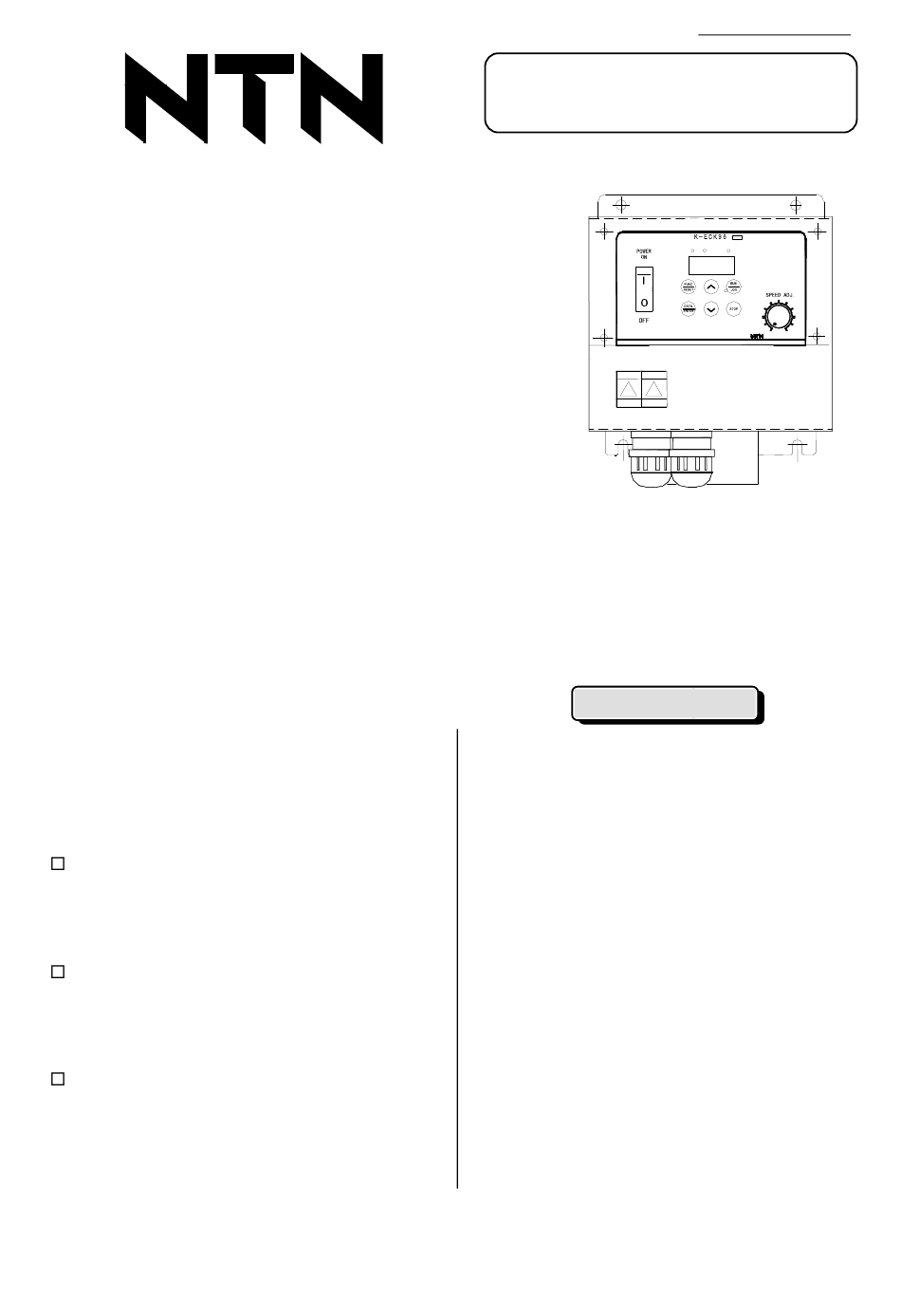

NTN K-ECK96 Instruction Manual

Small sized frequency variable controller

Advertisement

Quick Links

Instruction Manual
(With Warranty Card)
Small Sized Frequency
Variable Controller
High Power Type (Both for AC200V)
K-ECK96 (Control capacity 12A)
Introduction
Thank you for your purchase of NTN small sized frequency controller (high power type). In order to correctly and
safely operate this controller, please read this instruction manual before using this device without fail. This instruction
manual with warranty card shall be delivered to end users without fail. In addition, user shall keep this manual at the
safe place where readily available whenever needed even after reading.
1. Before usage
In order for you to use this device
correctly and safely and to make the most
of its function, notes below and on the next
page shall be observed.
On receiving this device, please check if there is
any failure due to the transportation. If you find
any inconvenience such as a failure, do not
hesitate to contact the nearest sales office.
This controller is only for NTN electromagnetic
parts feeder. Usage in other than this application
or usage exceeding the specification range is
prohibited. It may cause failures.
The "parts feeder" described in this instruction
manual is the generic names for the bowl feeder,
the linear feeder and so on.
Before use
Read this Instruction Manual to the last and
operate the machine correctly.
Introduction
・・・・・・・・・・・・・・・・・・・・・・・
1. Before Usage
・・・・・・・・・・・・・・・・・・・・・・・
2. Notes on Safety
3. Function and Features
4. Appearance & Names of Portions
5. Installation
・・・・・・・・・・・・・・・・・・・・・・・・・・
6. For the first time use
7. Connection of Input/Output
(Block diagram)
・・・・・・・・・・・・・・・・・・・・・・
8. Driving and Adjustment
9. Setting of Functions
(F – V Curve)
・・・・・・・・・・・・・・・・・・・・・・・・・
10. Protection/Warning Function
11. Troubleshooting
12. Specification
・・・・・・・・・・・・・・・・・・・・
(Outside Dimensions)
(Replacement method of fuses)
1
PMPC041E-b
RoHS
RUN
Vib.A
LIMIT
MAX
MIN
V.F. CONTROLLER
AC200-230V 50/60Hz 12A
JAPAN
Contents
・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・
・・・・・・・・・
・・・・・・・・・・・・・・・・
・・・・・・・・・
10 to 22
・・・・・・・・・・・
23 to 33
・・・・・・・・・・・・・・
34 to 46
・・・・・・・・
48 to 49
・・・・・・・・・・・・・・・・・
50 to 52
53 to 54
・・・・・・・・・・・・・・・・・・
・・・・・・・・・・
Page
1
1
2 to 4
5
6
7
8 to 9
11
47
54
54
