Armrest Kit
GreensPro™ 1200 Greens Roller
Model No. 44908
Loose Parts
Use the chart below to verify that all parts have been shipped.
Description
Left armrest bracket
Right armrest bracket
Armrest pad
Bolt (M10 x 45mm)
Locknut
Spacer
Bolt (M6 x 25mm)
Clip nut
Assembling the Armrest
1. Align a spacer on each side of the right armrest bracket
(Figure 1).
2. Align the spacers and the right armrest bracket with the
holes in the armrest pad (Figure 1).
3. Align a bolt (M10 x 45mm) with the holes in the armrest
pad, spacers, and the armrest bracket (Figure 1).
4. Thread a nut onto the bolt (M10 x 45mm) (Figure 1).
5. Tighten the nut onto the bolt until the nut and bolt
head are flush with the armrest pad.
Note: Do not over tighten the nut and bolt.
6. Repeat steps 1 through 5 to assemble the left armrest.
© 2012—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Qty.
1
1
2
Assemble the armrest.
2
2
4
6
Install the armrest.
6
Register at www.Toro.com.
1
2
6
5

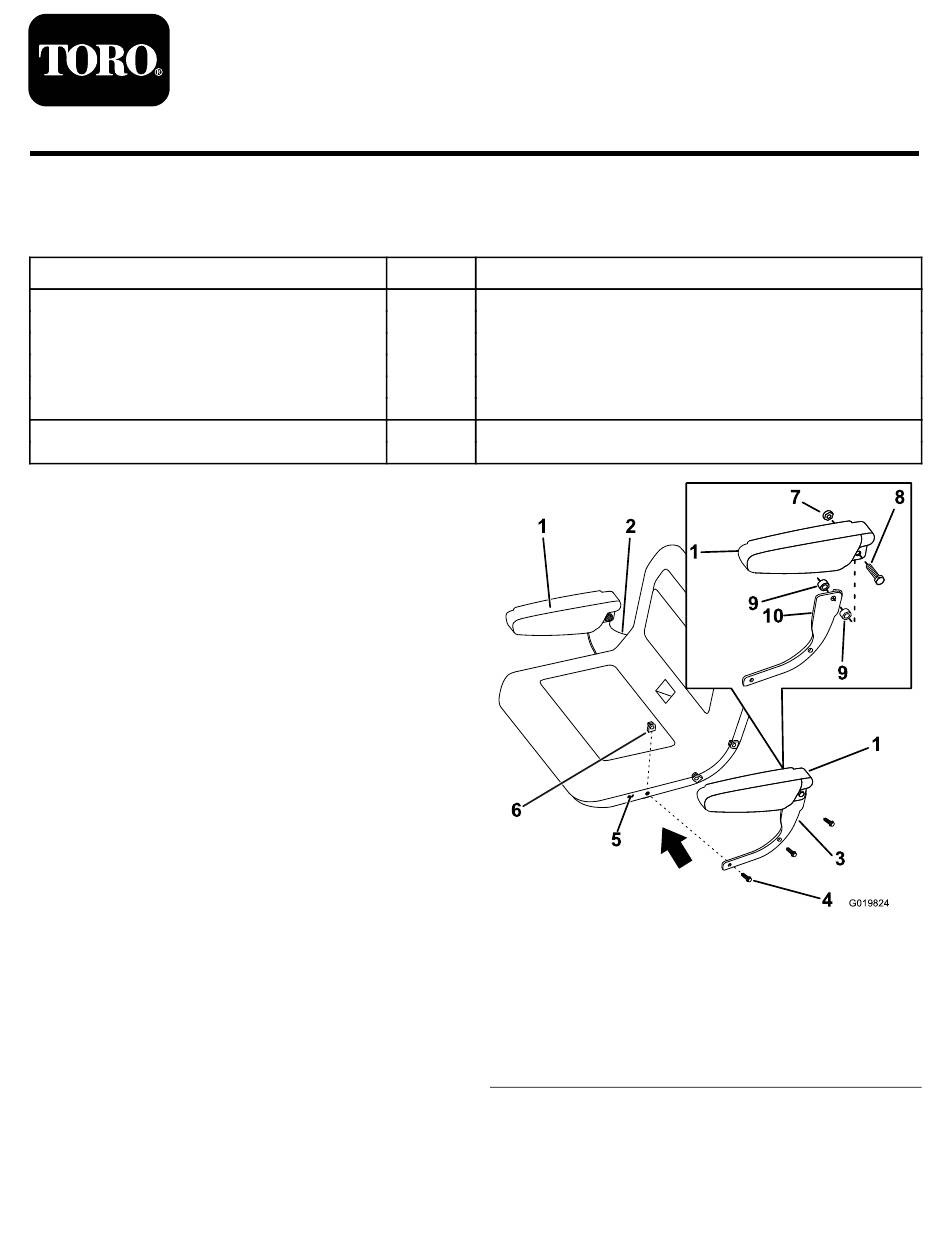

Figure 1
1. Armrest pad
2. Right armrest bracket
3. Left armrest bracket
4. Bolt (M6 x 25mm)
5. Seat pan flange
Original Instructions (EN)
All Rights Reserved *3375-919* A
Printed in the USA.
Form No. 3375-919 Rev A
Installation Instructions
Use
7
1
9
10
9
3
4
G019824
6. Clip nut
7. Nut
8. Bolt (M10 x 45mm)
9. Spacer
10. Armrest bracket (left
shown)
8
1
Advertisement
Related Manuals for Toro 44908
Summary of Contents for Toro 44908
- Page 1 Form No. 3375-919 Rev A Armrest Kit GreensPro™ 1200 Greens Roller Model No. 44908 Installation Instructions Loose Parts Use the chart below to verify that all parts have been shipped. Description Qty. Left armrest bracket Right armrest bracket Armrest pad Assemble the armrest.
- Page 2 Installing the Armrest 1. Insert the clip nuts over each hole of the seat pan flange (Figure 1). 2. Align the completed right armrest with the holes found on the right side of the seat pan flange (Figure 1). 3. Insert a bolt (M6 x 25mm) into each hole of the armrest and clip nuts (Figure 1).
