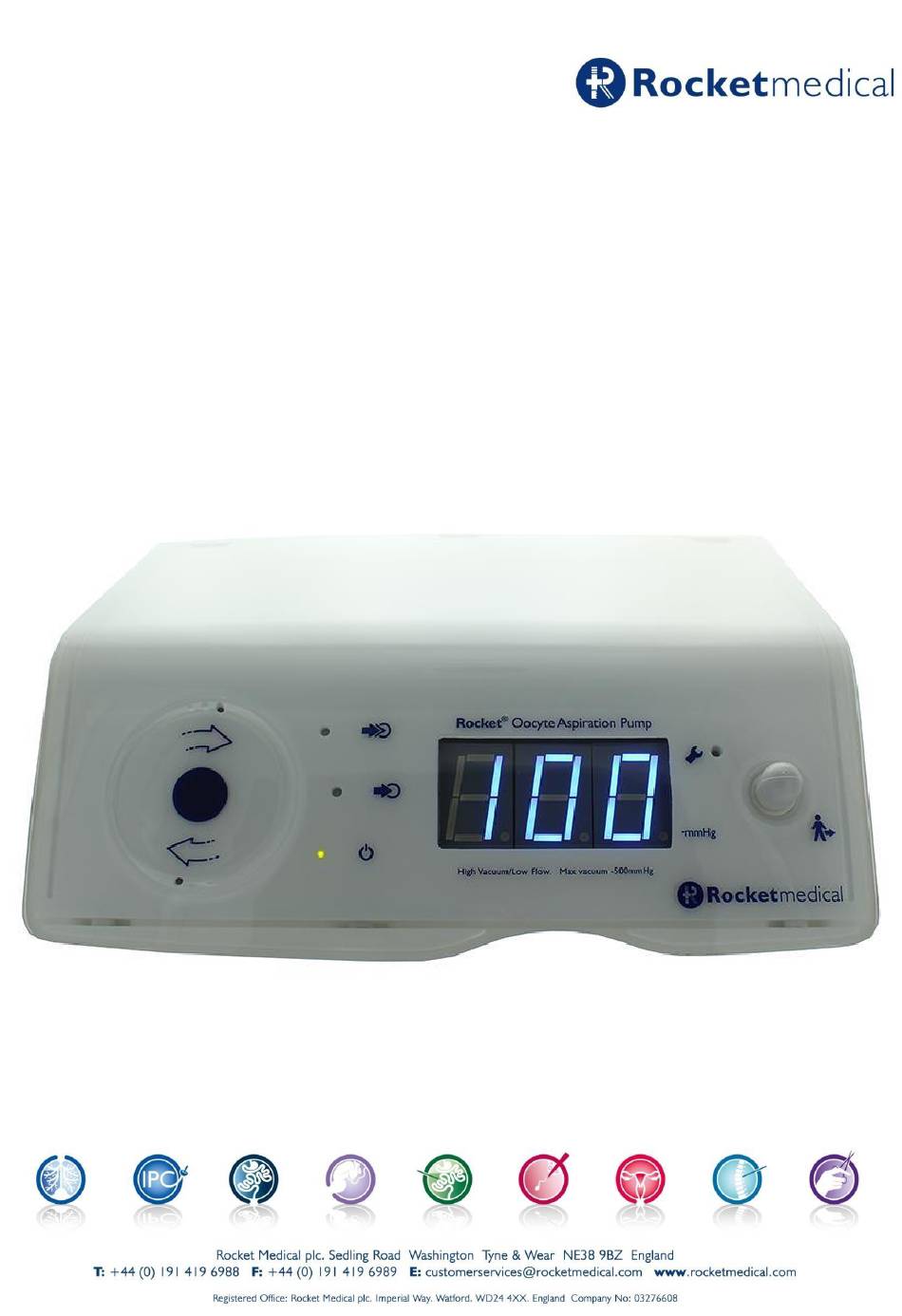

- Page 1 SERVICE MANUAL ® Rocket Digital Oocyte Aspiration Pump...
-
Page 2: Table Of Contents
Rocket® Digital Oocyte Aspiration Pump – Service Manual CONTENTS GENERAL ASSEMBLY ............................3 2.1. ROCKET DIGITAL OOCYTE ASPIRATION PUMP ..................... 3 ROCKET DIGITAL OOCYTE ASPIRATION PUMP – INTERNAL VIEW .............. 4 2.2. GENERAL DESCRIPTION ............................5 3.1. INDICATIONS..............................5 3.2. -
Page 3: General Assembly

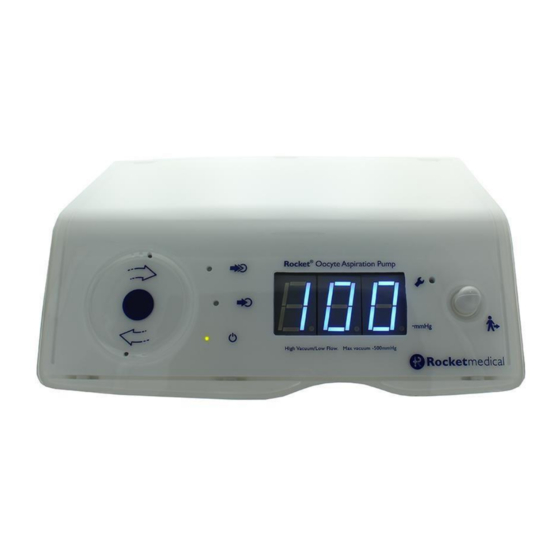

Rocket® Digital Oocyte Aspiration Pump – Service Manual 2. GENERAL ASSEMBLY 2.1. ROCKET DIGITAL OOCYTE ASPIRATION PUMP 1. Touch sensitive Suction Control Dial – clockwise to increase the set value and anticlockwise to decrease 2. Suction Display in mmHg 3. Patient Connection Port – only for use with R57686 Rocket Oocyte Aspiration Pump Patient Connection Sets 4. -
Page 4: Rocket Digital Oocyte Aspiration Pump - Internal View
Rocket® Digital Oocyte Aspiration Pump – Service Manual 2.2. ROCKET DIGITAL OOCYTE ASPIRATION PUMP – INTERNAL VIEW 1. O/I Mains Power On/Off 2. Vacuum Display 0-500mmHg – normal range 50-300mmHg 3. 12V Motor 4. Pump Head including Valve Housing 5. Vacuum Outlet Port 6. -
Page 5: General Description
Craft I, (1984) ‘Clinical Methodology’ British Journal of Hospital Medicine 90-102 Reeves G, Scott R T, et al (1989) Journal of Assisted Reproduction and Genetics Volume 6, Number 6 / December, 1989 Copyright© 2013-20 Rocket Medical plc. All rights reserved. -
Page 6: General Information
Failure to observe these This manual should not be photocopied, duplicated or distributed completely, or in part, without instructions may result in the written approval of Rocket Medical plc. damage to the pump or cause injury to the patient or user. -
Page 7: Manufacturer
Rocket Digital Pumps require servicing when indicated by the Service Indicator. carried out by authorised service agents. It is recommended they are serviced and calibrated at an approved Rocket Medical plc. service facility. Failure to service the pump at the indicated intervals and with an authorised service agent may invalidate the Warranty. -
Page 8: Supply Voltage Selection
Do not expose to direct sunlight. Do not expose to flammable gases. WARNING: Device can cause Operating temperature range: +5°C to +40°C explosion in the presence of flammable gases. Copyright© 2013-20 Rocket Medical plc. All rights reserved. ZDOCK258 Rev:09 2020-11-10... -
Page 9: Symbols Used On Oocyte Aspiration Pump
Indicates activation of the user set 50-300mmHg mode Dispose of this device in accordance with WEEE directive (2002/96/EC) CE Mark Consult the Instructions for Use CAUTION: consult accompanying documents Indicates device serial number Indicates manufacturer Copyright© 2013-20 Rocket Medical plc. All rights reserved. ZDOCK258 Rev:09 2020-11-10... -
Page 10: Symbols Used On Power Supply Unit
Read the Instruction for Use before connection and use Device is for Single Use Only Batch number for sterile device Device is sterilised by Ethylene Oxide The device is not manufactured with natural latex CE Mark Copyright© 2013-20 Rocket Medical plc. All rights reserved. ZDOCK258 Rev:09 2020-11-10... -
Page 11: Annual Service
Rocket® Digital Oocyte Aspiration Pump – Service Manual 5.ANNUAL SERVICE Service Kits: Filter Service Kit: F02-004s Pump Service Kit: S02-072 Tools required: a) Pozidriv 1 Screwdriver b) 8mm Nut Runner c) 2mm Hex Key Copyright© 2013-20 Rocket Medical plc. All rights reserved. ZDOCK258 Rev:09 2020-11-10... -
Page 12: Replacing The Inlet Filter (F02-004S)
Remove the white silicone retaining ‘O’ ring from the vacuum inlet port. CAUTION: Avoid the use of sharp tools as these may damage the O’ ring. Copyright© 2013-20 Rocket Medical plc. All rights reserved. ZDOCK258 Rev:09 2020-11-10... - Page 13 Carefully detach the ribbon from the front cover and store securely. Detach the patient outlet filter from the tube. Unclip the filter from the spring clip; discard and replace the filter. Copyright© 2013-20 Rocket Medical plc. All rights reserved. ZDOCK258 Rev:09 2020-11-10...
-
Page 14: Replacing The Pump Valve And Diaphragm Set: S02-072
Unscrew the 4 screws from the pump head in a crosswise manner to prevent distortion of the pump head Disconnect the pipe connected to the inlet, and the filter connected to the outlet. Copyright© 2013-20 Rocket Medical plc. All rights reserved. ZDOCK258 Rev:09 2020-11-10... - Page 15 Retain the parts circled, on the right, from the unit. IMPORTANT Centralise the piston into the housing and re-attach the diaphragm, plate and screw. DO NOT OVERTIGHTEN THE SCREW IMPORTANT Copyright© 2013-20 Rocket Medical plc. All rights reserved. ZDOCK258 Rev:09 2020-11-10...
- Page 16 Return the chassis to the casing, locating it onto the threaded bosses within the case. Refit the washers and nuts and tighten the securing nuts. Copyright© 2013-20 Rocket Medical plc. All rights reserved. ZDOCK258 Rev:09 2020-11-10...
-
Page 17: Reassembling The Chassis Into The Casing
Re-fit the casing taking care of the ribbon cable. IMPORTANT DO NOT OVER TIGHTEN THE After re-fitting the upper casing to SCREWS the lower frame, re-install the 3 screws and washers to the rear casing. Copyright© 2013-20 Rocket Medical plc. All rights reserved. ZDOCK258 Rev:09 2020-11-10... - Page 18 TIGHTEN THE SCREWS Re-install the white silicone retaining ‘O’ ring to the vacuum inlet port. CAUTION: Avoid the use of sharp tools as these may damage the O’ ring. Copyright© 2013-20 Rocket Medical plc. All rights reserved. ZDOCK258 Rev:09 2020-11-10...
-
Page 19: Final Testing
Value Vacuum WARNING: 100mmHg Ensure the vacuum levels are within the specified 150mmHg accuracy tolerance before returning the pump to 200mmHg clinical service. Specified accuracy: ±10% of test value Copyright© 2013-20 Rocket Medical plc. All rights reserved. ZDOCK258 Rev:09 2020-11-10... -
Page 20: Cleaning The Pump Casing
Except under warranty, all service and/or repair should be organized via an authorized Service provider. For warranty repairs, please contact Rocket Medical customer services. Prior to shipping, all devices must be prepared as described below, for the protection of the servicing team and for safety during transport. -
Page 21: Troubleshooting
This can cause erratic behaviour if disconnected. 10.3 DEVICE DISPLAY VARIES WHEN UNIT OPERATING Change device from Service Mode (see section 16.3). • Device should display the target vacuum when operating. Copyright© 2013-20 Rocket Medical plc. . All rights reserved. ZDOCK258 Rev:09 2020-11-10... -
Page 22: Storage And Transportation
Protect the device from ingress of liquid. Should any liquid enter the device, discontinue use immediately and refer to an authorised service agent Altitude This device is intended for use below 2000 meters. Copyright© 2013-20 Rocket Medical plc. . All rights reserved. ZDOCK258 Rev:09 2020-11-10... -
Page 23: Warranty
The foregoing warranties shall not apply if the Products have been repaired other than by Rocket Medical plc. or other than in accordance with written instructions provided by Rocket Medical plc. or altered by anyone other than Rocket Medical plc., or if the Products have been subject to misuse, negligence, or accident. -
Page 24: Technical Specifications
• Foot Switch 0.51Kg Suction Ranges: • User Set: -50mmHg to -300mmHg in 5mmHg increments • Pre-set: -500mmHg - nominal Suction Range Accuracy: ±10% at operating range: 100-500mmHg Copyright© 2013-20 Rocket Medical plc. . All rights reserved. ZDOCK258 Rev:09 2020-11-10... -
Page 25: Drawings
Rocket® Digital Oocyte Aspiration Pump – Service Manual 16. DRAWINGS 16.1. SET-UP FLOW CHART Copyright© 2013-20 Rocket Medical plc. . All rights reserved. ZDOCK258 Rev:09 2020-11-10... -
Page 26: Pump Timer Reset Flowchart
Rocket® Digital Oocyte Aspiration Pump – Service Manual 16.2. PUMP TIMER RESET FLOWCHART Copyright© 2013-20 Rocket Medical plc. . All rights reserved. ZDOCK258 Rev:09 2020-11-10... -
Page 27: Service Mode Reset Flowchart
Rocket® Digital Oocyte Aspiration Pump – Service Manual 16.3. SERVICE MODE RESET FLOWCHART Copyright© 2013-20 Rocket Medical plc. . All rights reserved. ZDOCK258 Rev:09 2020-11-10...
