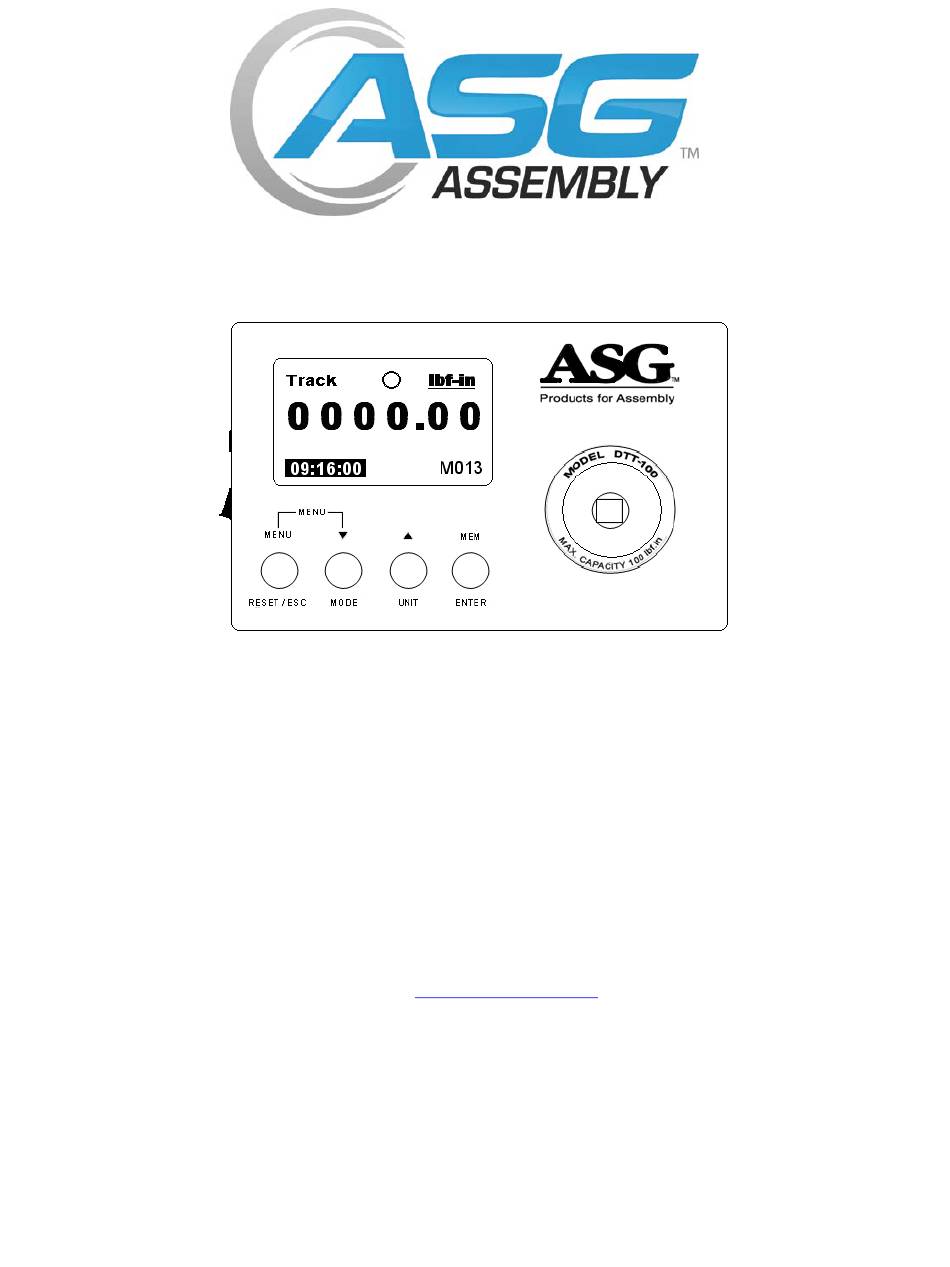

- Page 1 DTT OPERATING MANUAL SEPTEMBER 2013 DTT Version 4H ASG Div. Jergens Inc 15700 S. Waterloo Rd. Cleveland Ohio 44110-3898 Phone: 216-486-6163 Fax: 216-481-4519 E-mail: asginfo@asg-jergens.com Web: www.asg-jergens.com...
-
Page 2: Table Of Contents
Calibration Manual store it away from the meter. You may also change the default password to prevent unauthorized entry into the calibration program. However, if you change the password and lose it, or forget it, the meter must be returned to ASG to restore the default password. -
Page 3: Introduction
Thank you for purchasing an ASG DTT Torque Meter. We know you have a choice and all of us here at ASG are pleased that you chose our meter. Please feel free to contact us with any comments regarding this, or any other ASG product at the phone number, fax number or e-mail address provided on the first and last page of this guide. -
Page 4: Operation Of The Dtt Meter With The Factory Defaults
To use place the unit on a smooth, flat, level surface. Clamp the unit using the optional calibration / mounting bracket if higher torques are to be used. To attach the bracket, remove the screws holding the 4 rubber feet found on each corner of the unit. -
Page 5: Overload Capacity
Following are the functions of the buttons when in normal operating mode. In normal operation, pressing the RESET button resets the torque readings to zero in either the PEAK or FIRST PEAK mode. Note! In TRACK MODE pressing the RESET button will take you into the MAIN MENU. Press the button again to ESCAPE back to the previous screen and press the MODE button to return to PEAK or FIRST PEAK Mode. -
Page 6: Procedure For Power Screwdrivers
The LCD display will show the torque that the driver or wrench is set at. Note the reading or write It down. To enter it into the DTT memory press the “MEM / ENTER” button. If you are testing several tools note the memory numbers of the readings for the various tools. - Page 7 Refer to the drawing below for proper assembly rather then relying on the creativity of individuals. All ASG DTT driver adapters using springs, regardless of torque range or size, have similar parts and will be assembled in the same order.
-
Page 8: Parts And Accessories
Never leave the spring compressed after use If the adapter is disassembled refer to the diagram for re-assembly. PARTS AND ACCESSORIES 66620 Replacement Driver Adapter 4mm drive, .25 to 2 lbf.in, 3/8” square base 66612 Replacement Driver Adapter ¼” hex drive 3/8” square base, includes 66614 spring and 66616 spring 66614 Replacement Gold (Yellow) Spring for 66612, 1.3 to 5 lbf.in 66616 Replacement Black Spring for 66612, 4.3 to 26 lbf.in... -
Page 9: Calibration
1 year. ASG will replace those items found to be defective or otherwise fail to conform or at ASG’s option repay the price paid for the item. The Buyer’s remedies with respect to any item found to be defective or otherwise not conforming shall be limited EXCLUSIVELY to the right of replacement or repayment. -
Page 10: System Overview

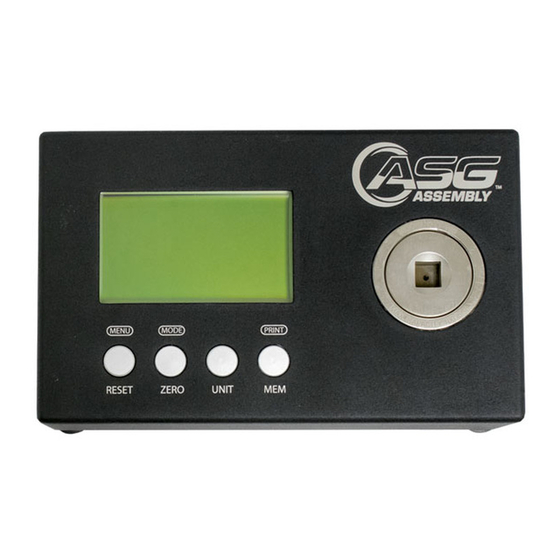

SYSTEM OVERVIEW ASG DIGITAL TORQUE TESTER MODEL: DTT-5,DTT-10, DTT-30*, DTT-50*, DTT-100, DTT-200, DTT-500 Physical: Size: 7-1/8” x 4-3/8” x 2” (110x181x50 mm.) Weight: 4 LB (1.8 kgs.) Electronics Display: Graphics LCD display size 128 x 64 dots Battery: 12 Hours (NiMH 7.2V rechargeable) -
Page 11: Torque Conversion Factors
TORQUE CONVERSION FACTORS ozf.in = inch ounces gmf.cm = gram centimeters mNm = mili Newton meters lbf.in = inch pounds kgf.cm = kilogram centimeters cN.m = centi Newton meters lbf.ft = foot pounds kgf.m = kilogram meters N.m = Newton Meters Units to be Imperial Metric... - Page 12 Division of Jergens, Inc. 15700 S. Waterloo Road | Cleveland, Ohio 44110-3898 Toll Free: (888) 486-6163 | Fax: (216) 481-4519 Email: asginfo@asg-jergens.com | www.asg-jergens.com...
